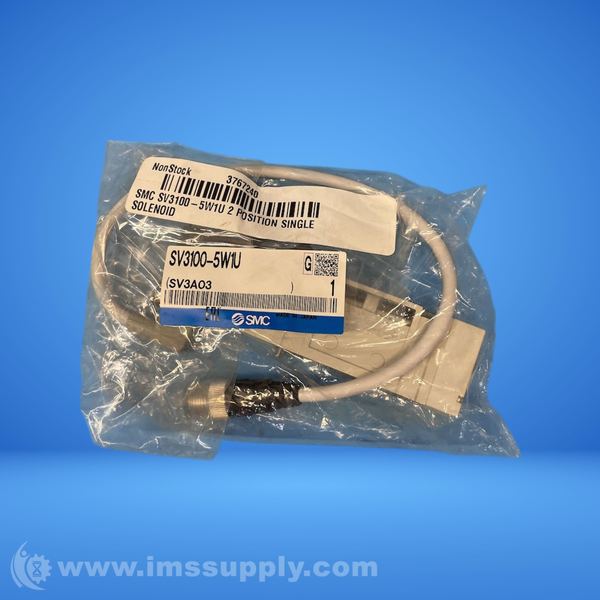

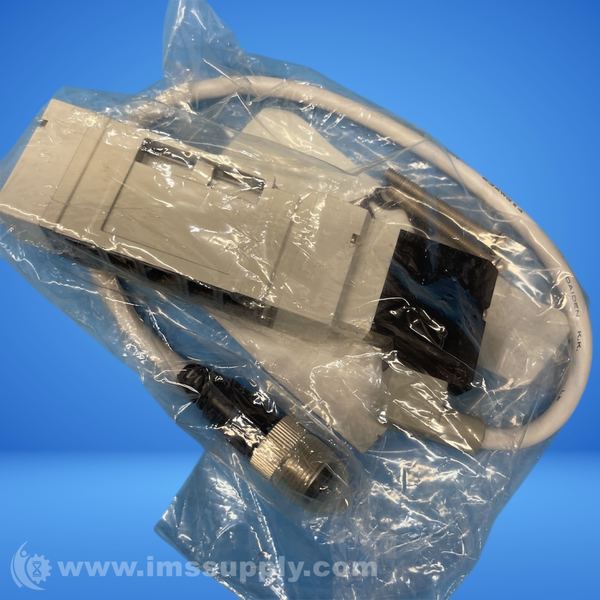

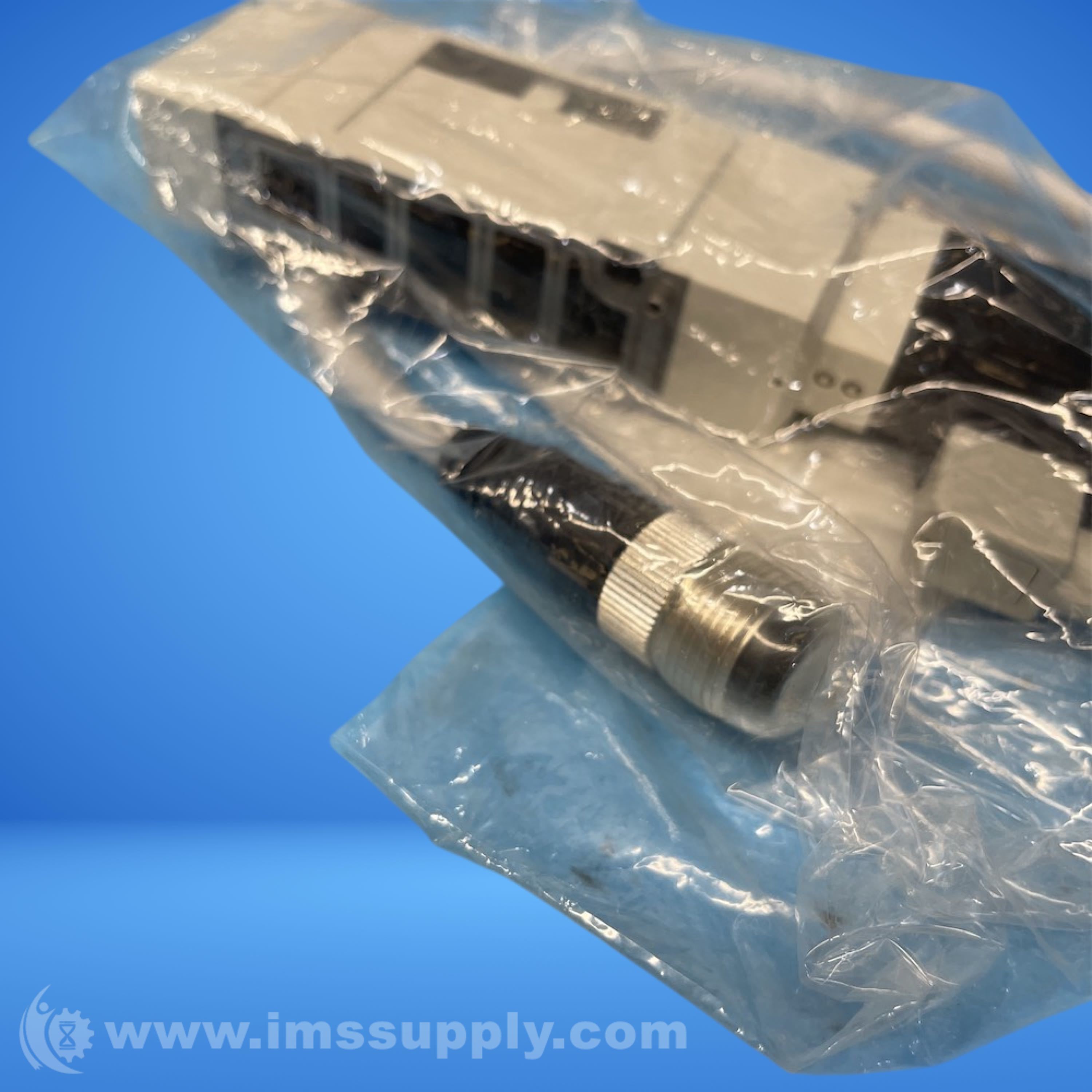

SMC SV3100-5W1U 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SV3100-5W1U
IMS Product Code: 2127479
Packaging: Sold Individually
Description:
SMC SV3100-5W1U 5-Port Solenoid Valve
5-port solenoid valve with internal pilot, spool valve function, and M12 connector. Designed for air service with 24V DC solenoid.
Specifications
- Series: SV3000
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: M12 Connector
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Operating Medium: Air
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1981
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 60.3 mm
- Overall Length: 121.4 mm
- Overall Width: 46 mm
- Response Time: 28 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Power Consumption: 0.65 W
- Valve Function: Spool
- Pilot: Internal Pilot
- Service Life: 50 million cycles or more
- Supply Pressure: 0.5MPa
- Mounting Orientation: Unrestricted
- Pressure: 102 psi
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 4 In Stock
Ships today if ordered in the next 11 hours and 24 minutes.
