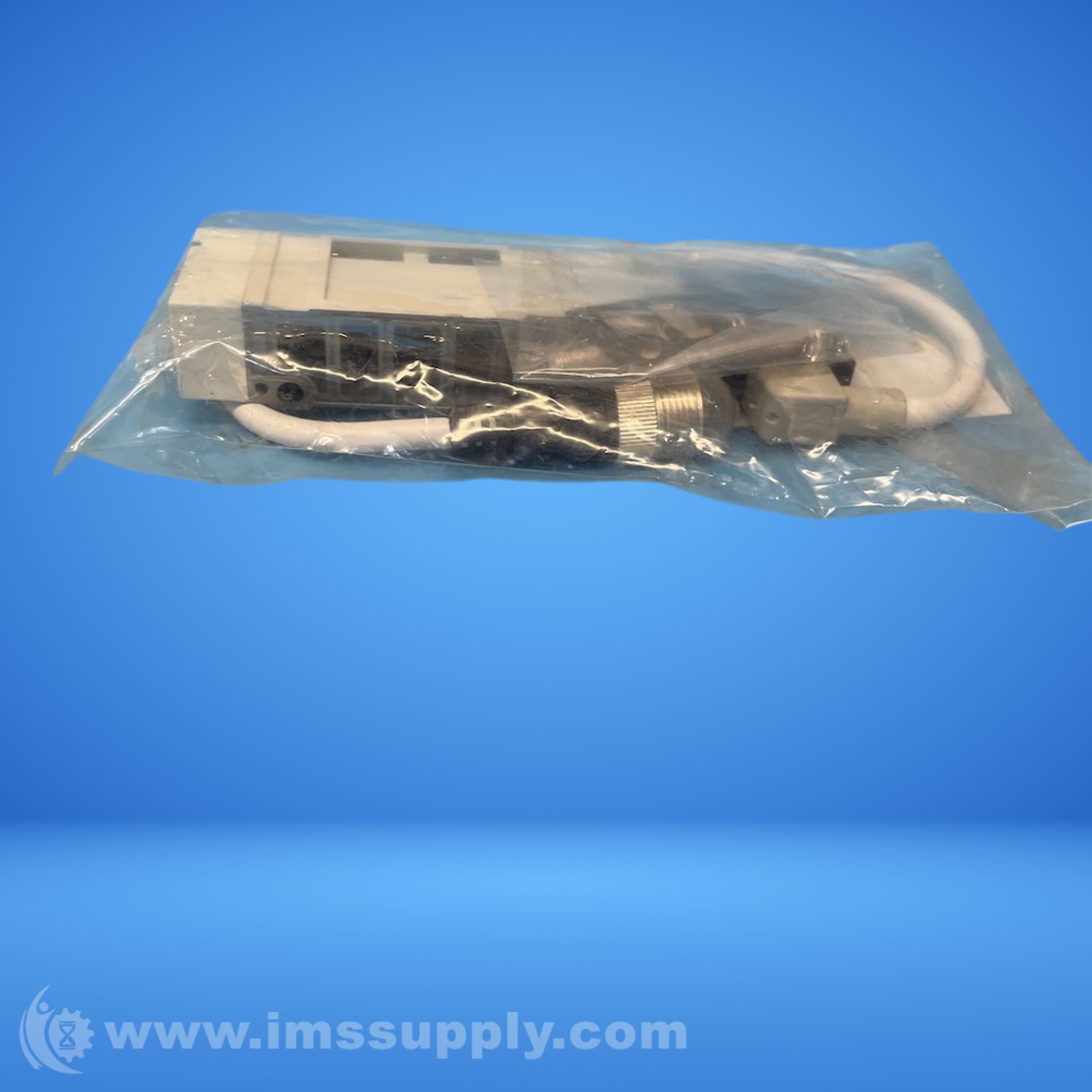

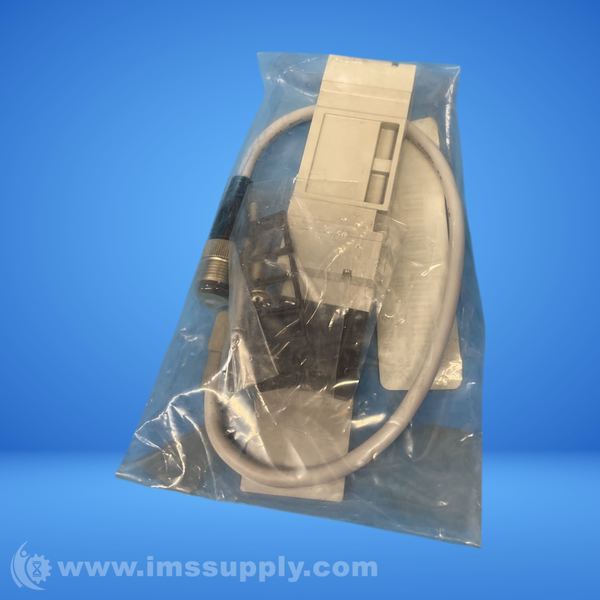

SMC SV3200-5W1U 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SV3200-5W1U
IMS Product Code: 2127480
Packaging: Sold Individually
Description:
SMC SV3200-5W1U 5-Port Solenoid Valve
Pneumatic solenoid valve with 5 ports, 2 positions, double solenoid, and internal pilot operation. Body made of aluminum. 24V DC solenoid supply voltage.
Specifications
- Series: SV3000
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Operating Medium: Air
- Flow Direction: 4-Way
- Body Material: Aluminum
- Overall Height: 60.3 mm
- Overall Length: 121.4 mm
- Overall Width: 46 mm
- Maximum Operating Pressure: 101 psi
- Operating Temperature Range: 14 to 122 degrees F
- Solenoid Power Consumption: 0.65 W
- Response Time: 26 ms
- Pilot: Internal Pilot
- Valve Function: Spool
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 5 In Stock
Ships today if ordered in the next 11 hours and 20 minutes.
