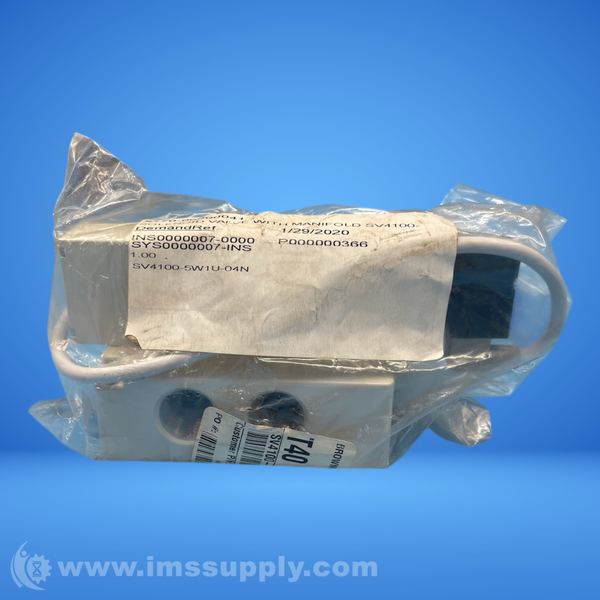

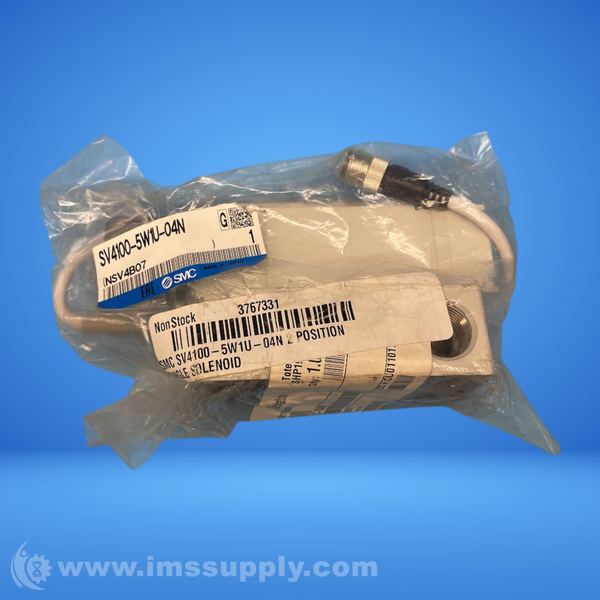

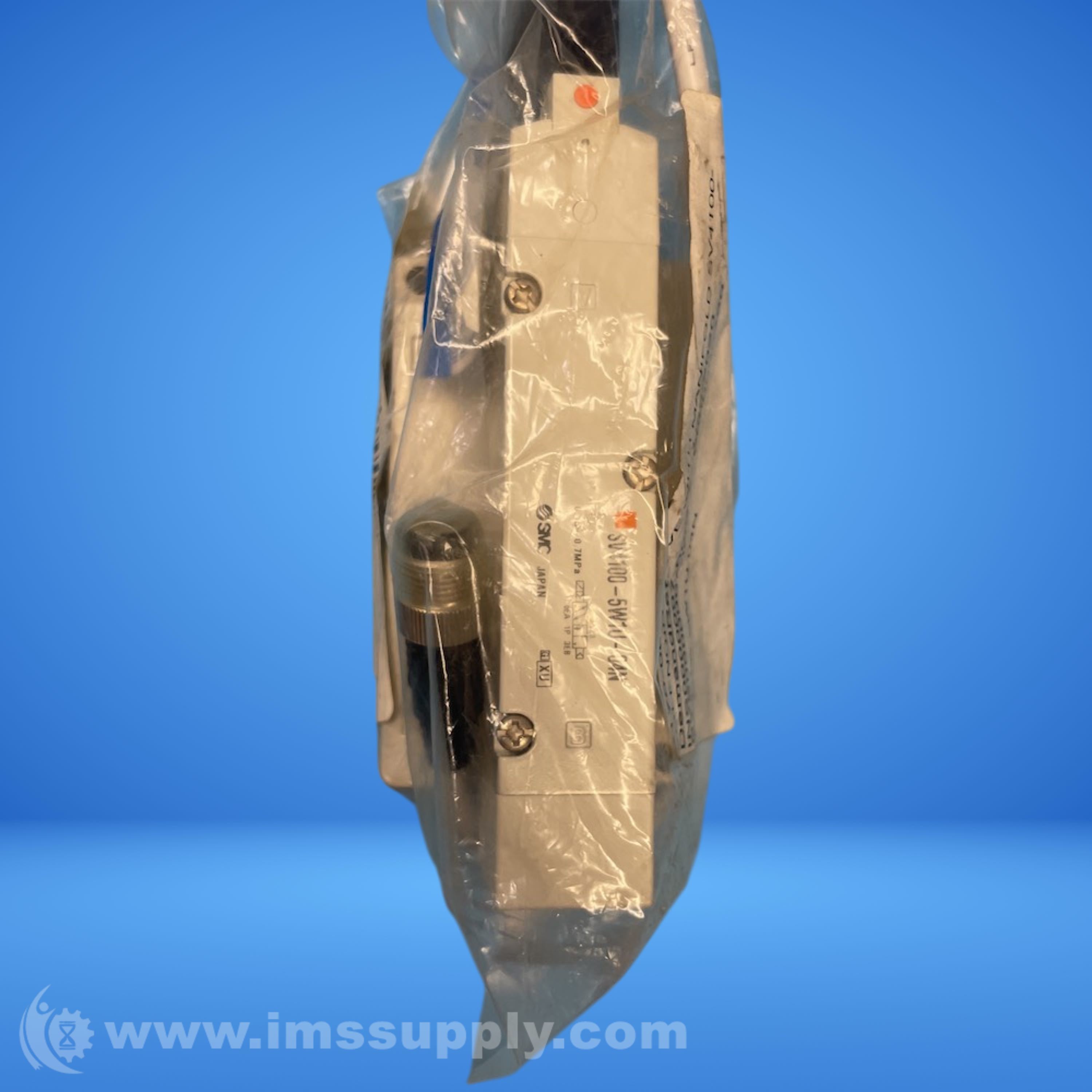

SMC SV4100-5W1U-04N 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SV4100-5W1U-04N
IMS Product Code: 2127502
Packaging: Sold Individually
Description:
SMC SV4100-5W1U-04N 5-Port Solenoid Valve
5-port solenoid valve with internal pilot operation, 1/2 NPT port size, and 24VDC solenoid supply voltage.
Specifications
- Series: SV4000
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: M12 Connector
- Pilot: Internal Pilot
- Port Sizes: 1/2 NPT
- Flow Direction: 4-Way
- Operating Medium: Air
- Seal Material: Rubber
- Body Material: Aluminum
- Maximum Operating Pressure: 101 psi
- Operating Temperature Range: 14 to 122 degrees F
- Manual Operation Type: Non-Locking Push
- Response Time: 40 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Power Consumption: 0.65 W
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 22 minutes.
