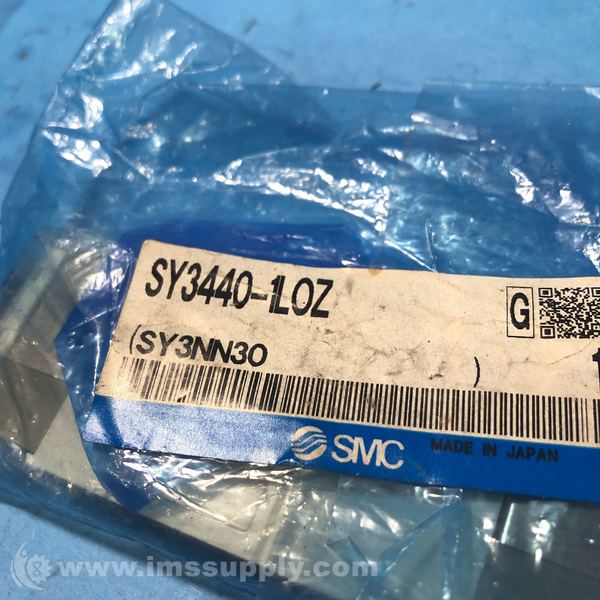

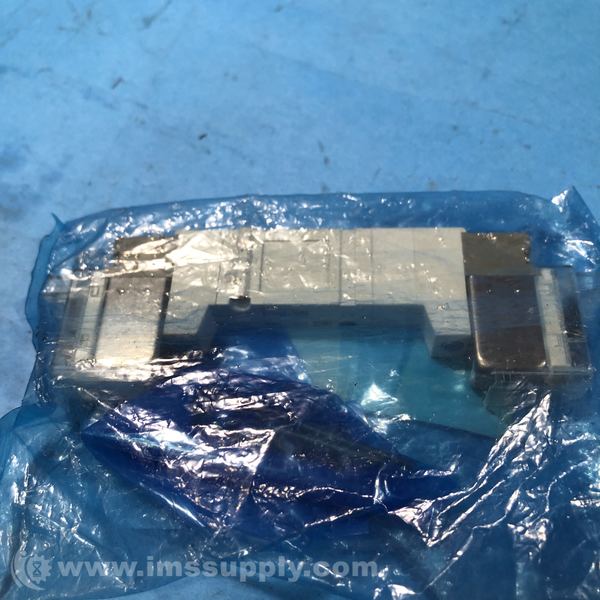

SMC SY3440-1LOZ BASE MOUNTED 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY3440-1LOZ
IMS Product Code: 1939765
Packaging: Sold Individually
Description:
SMC SY3440-1LOZ Base Mounted 5-Port Solenoid Valve
Base mounted 5-port solenoid valve with double solenoid operation, piloted solenoid actuation, and rubber seal.
Specifications
- Series: SY3000
- Type: SOL/VALVE
- Seal Type: RUBBER SEAL
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm^2 (Cv): body ported 4.14 (0.23);base mounted 5.4 (0.3)
- Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
- Response time (0.5MPa) w/o indicator light & surge voltage suppressor: 15ms or less
- Ambient & fluid temperature: 50°C
- Piping Type: Base Mounted
- Number Of Ports: 5
- Number Of Positions: 3 (Exhaust Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 100 V ac
- Solenoid Supply Frequency: 50/60 Hz
- Solenoid Electrical Entry: L Plug
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: Without Subplate
- Standards Met: IEC 60529, JIS B 8375-1981, JIS
- Actuation: Piloted Solenoid
- Body Material: Zinc
- Response Time: 20 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Sonic Conductance (C): 1.1 dm³/(s.bar)
- Valve Function: Spool
- Voltage: 100 V ac
- Thread Standard: Rc
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Valve Series: SY3000
- Voltage Suppressor: With Light/Surge Voltage Suppressor
