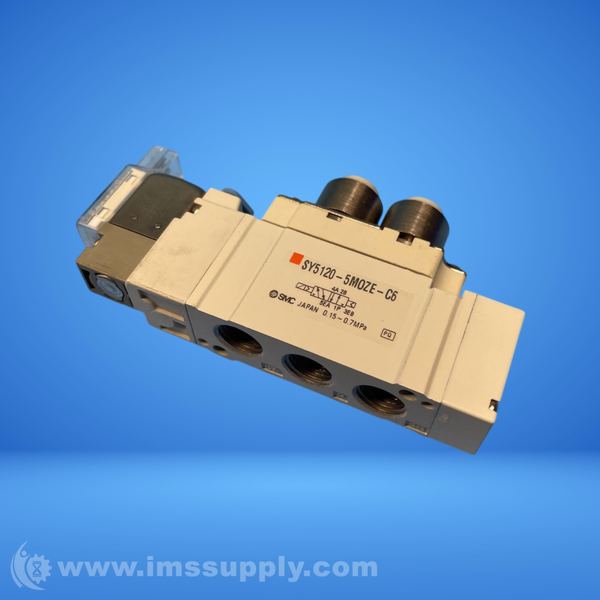

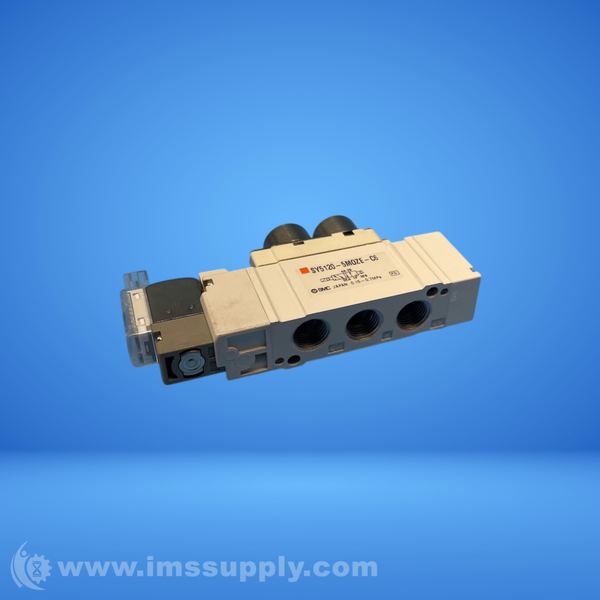

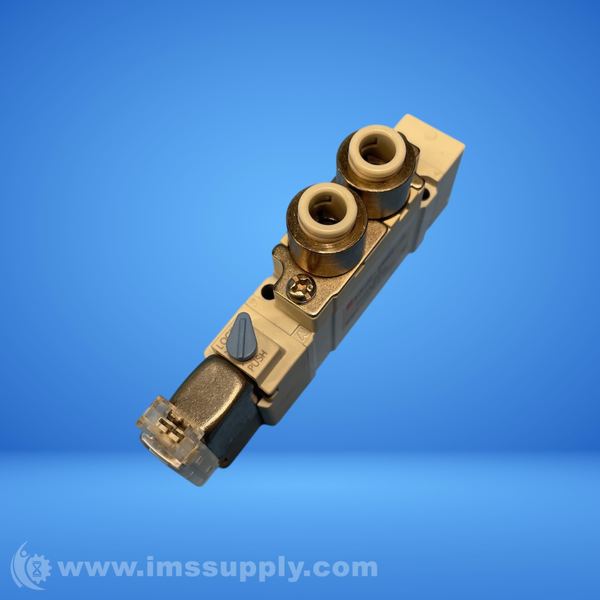

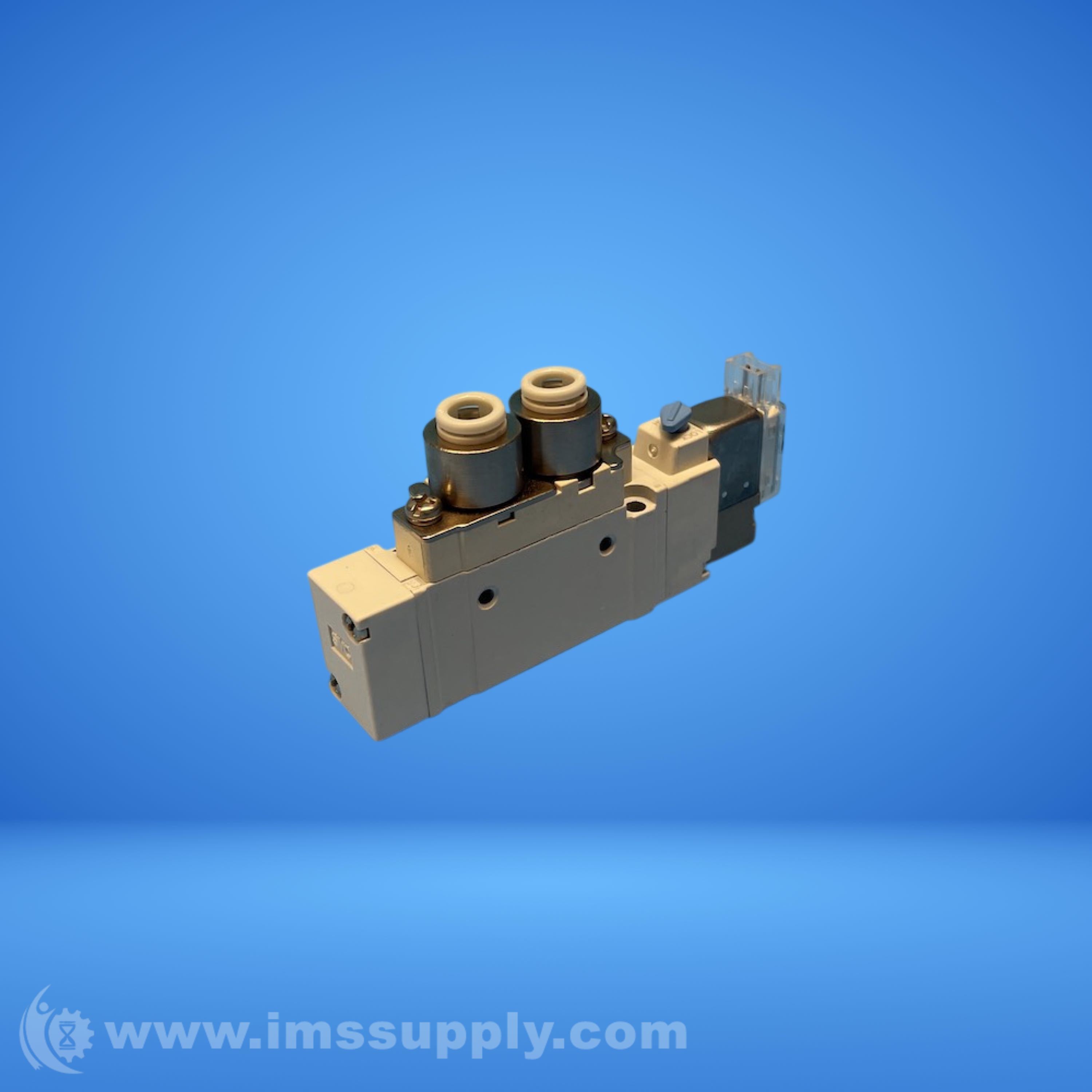

SMC SY5120-5MOZE-C6 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5120-5MOZE-C6
IMS Product Code: 2124569
Packaging: Sold Individually
Description:
SMC SY5120-5MOZE-C6 5-Port Solenoid Valve
5-Port Solenoid Valve Body Ported Single Unit SY5000 Series from SMC. Possible to drive cylinders up to 63 mm at 300 mm/s. With residual pressure release valve. With safety slide locking manual override. D-sub connector [IP67] manifold. PC wiring (with power supply terminal) manifold. Power consumption is reduced by power saving circuit. Wiring, piping, and operation are integrated on one side.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: M Plug
- Flow Coefficient Cv Flow Factor Kv: 0.33 (P to A/B) Cv, 0.52 (A/B to EA/EB) Cv
- Manual Operation Type: Locking (Lever)
- Maximum Operating Pressure: 145 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: One-touch fitting for 6
- Port Sizes: 6 mm Push-to-Connect
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 45.3 mm
- Overall Length: 86 mm
- Overall Width: 15.8 mm
- Response Time: 26 ms
- Solenoid Allowable Voltage Fluct: -7 to +10 %
- Solenoid Power Consumption: 0.4 W
- Sonic Conductance (C): 1.5 (P to A/B) dm³/(s.bar), 2 (A/B to EA/EB) dm³/(s.bar)
- Valve Function: Spool
- Voltage: 24 V dc
- Thread Standard: Rc
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Valve Series: SY5000
- Voltage Suppressor: With Light/Surge Voltage Suppressor
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
