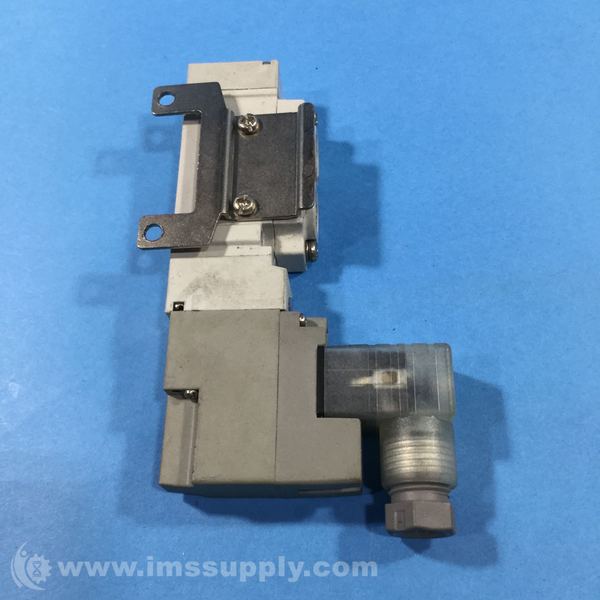

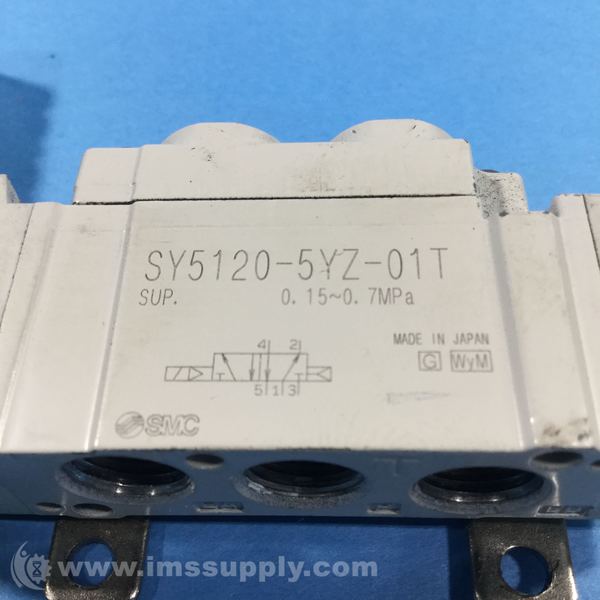

SMC SY5120-5YZ-01T 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5120-5YZ-01T
IMS Product Code: 1823986
Packaging: Sold Individually
Description:
SMC SY5120-5YZ-01T 5-Port Solenoid Valve
5-port solenoid valve with body ported design and single solenoid actuation. Piloted solenoid operation with 24 V DC supply voltage and DIN terminal electrical entry.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Sizes: 1/8 NPTF
- Actuation: Piloted Solenoid
- Series: SY
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 - 0.7MPa
- Effective area mm 2 (Cv): body ported 10.6 (0.59);base mounted 12.6 (0.7)
- Response time (0.5MPa): 32ms or less
- Ambient & fluid temperature: 50 degrees C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
