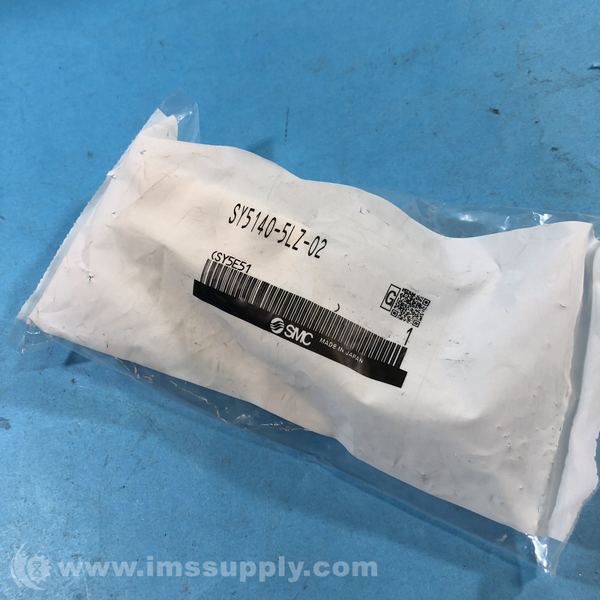

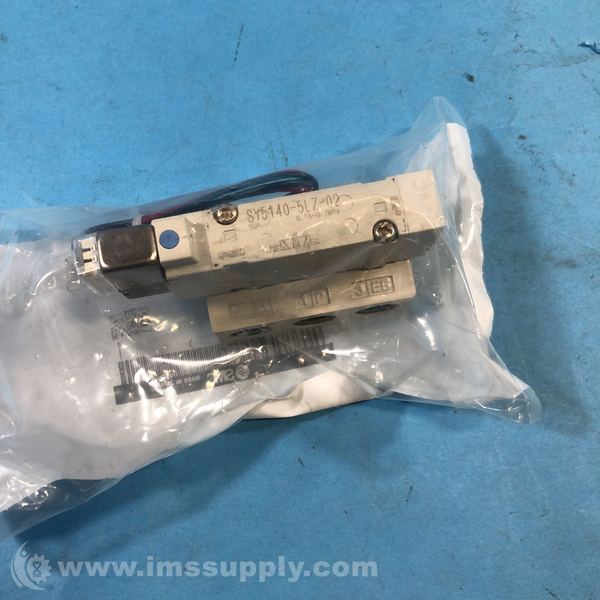

SMC SY5140-5LZ-02 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5140-5LZ-02
IMS Product Code: 1900843
Packaging: Sold Individually
Description:
SMC SY5140-5LZ-02 5-Port Solenoid Valve
5-port solenoid valve, base mounted, single solenoid, 24V DC, with light/surge voltage suppressor.
Specifications
- Series: SY5000
- Type: SOL/VALVE
- Seal Type: RUBBER SEAL
- Mount Type: BASE MT
- Weight: 0.33512 lb
- Piping Type: Base Mounted with Subplate
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: L Plug
- Flow Coefficient Cv Flow Factor Kv: 1 (A/B to EA/EB) Cv, 1.1 (P to A/B) Cv
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: 1/4 w/Sub-Plate
- Port Sizes: 1/4 BSPT
- Standards Met: IEC 60529, JIS B 8375-1981
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 50.6 mm
- Overall Length: 95.8 mm
- Overall Width: 35 mm
- Response Time: 26 ms
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Power Consumption: 0.35 W
- Sonic Conductance (C): 2.8 dm³/(s.bar)
- Valve Function: Spool
- Voltage: 24 V dc
- Lead Wire Length: 300 mm
- Thread Standard: Rc
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Valve Series: SY5000
- Voltage Suppressor: With Light/Surge Voltage Suppressor
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
