SMC SY5220-5MZ-01 SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5220-5MZ-01
IMS Product Code: 1904067
Packaging: Sold Individually
Description:

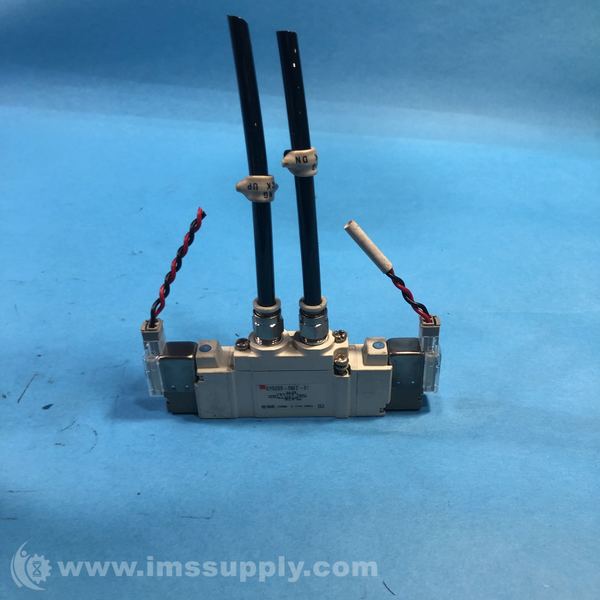

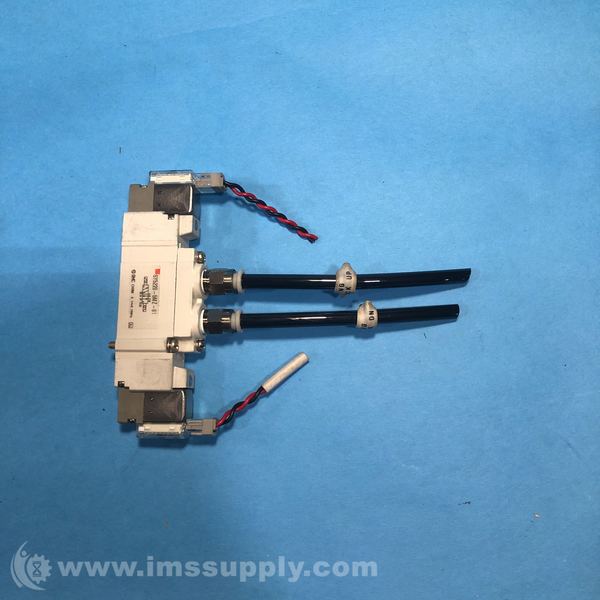

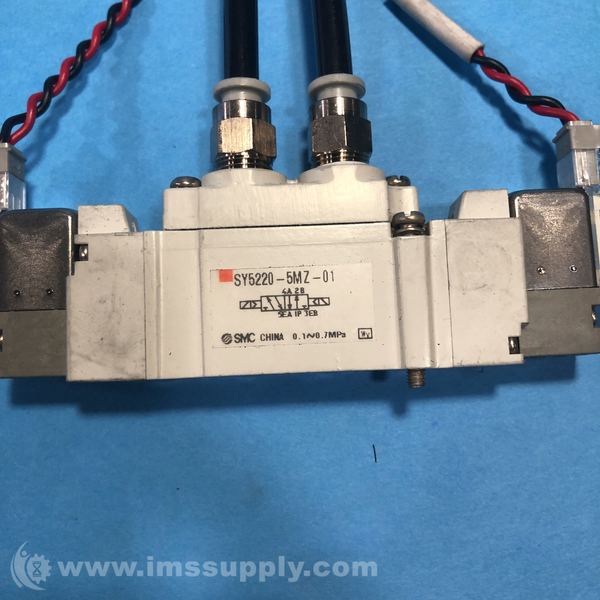

SMC SY5220-5MZ-01 Solenoid Valve
4/5 port solenoid valve, double solenoid, body ported
Specifications
- Series: SY5000
- Fluid: air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa, (external pilot) -100kPa to 0.7MPa
- Effective area: 10.6 mm^2 (0.59 Cv) body ported, 12.6 mm^2 (0.7 Cv) base mounted
- Coil rated voltage: 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
- Response time: 32ms or less (0.5MPa) w/o indicator light & surge voltage suppressor
- Ambient & fluid temperature: up to 50°C
- Solenoid Electrical Entry: M Plug Connector
- Manual Operation Type: Non-Locking Push
- Port Size: 1/8
- Actuation: 2 position double
- Voltage: 24 V dc
- Lead Wire Length: 300 mm
- Thread Standard: Rc
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Voltage Suppressor: With Light/Surge Voltage Suppressor
- Weight: 0.21876 lb (0.093 kg)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
