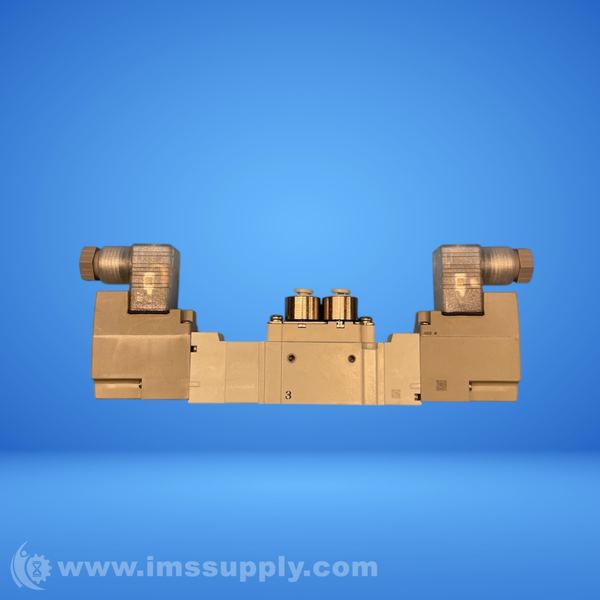

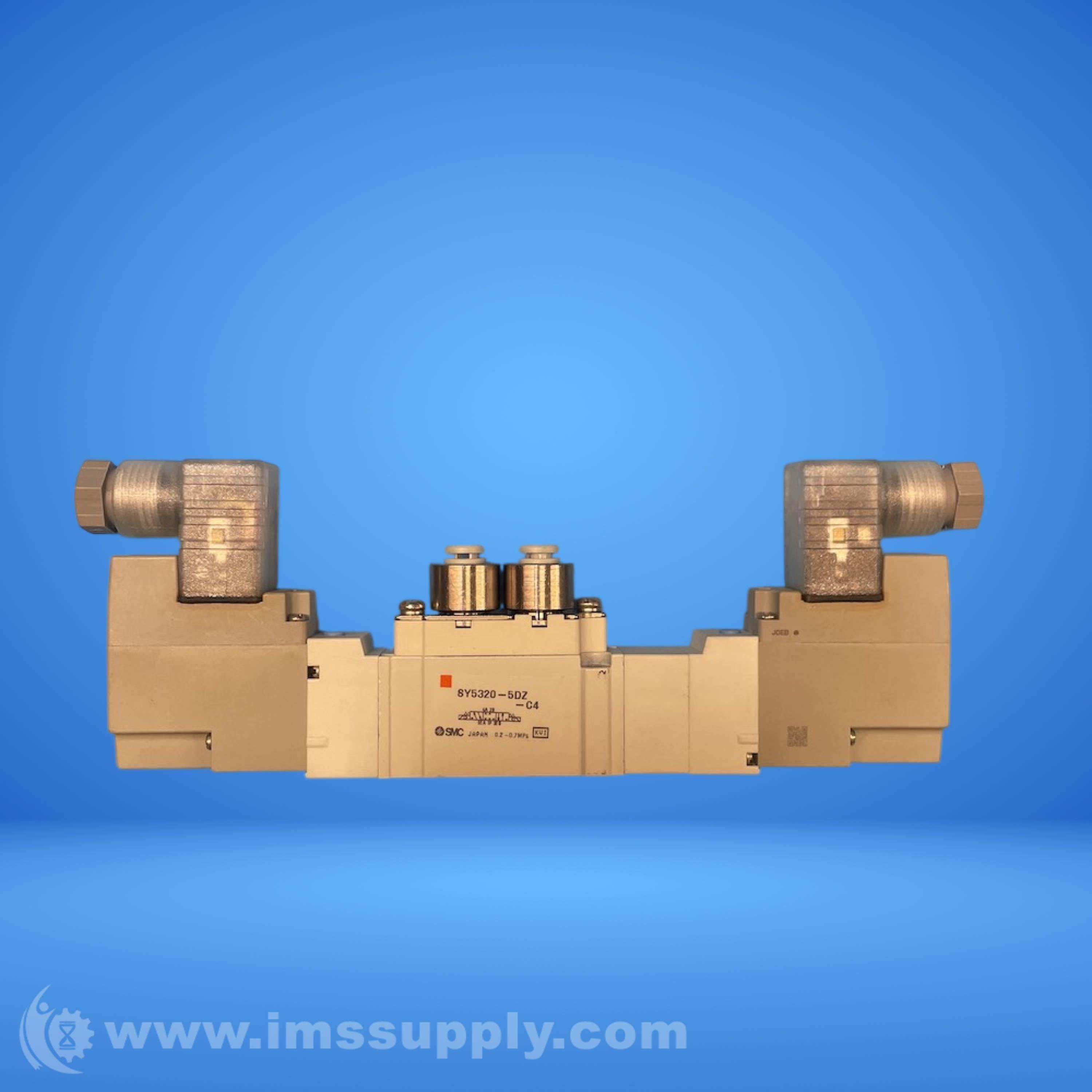

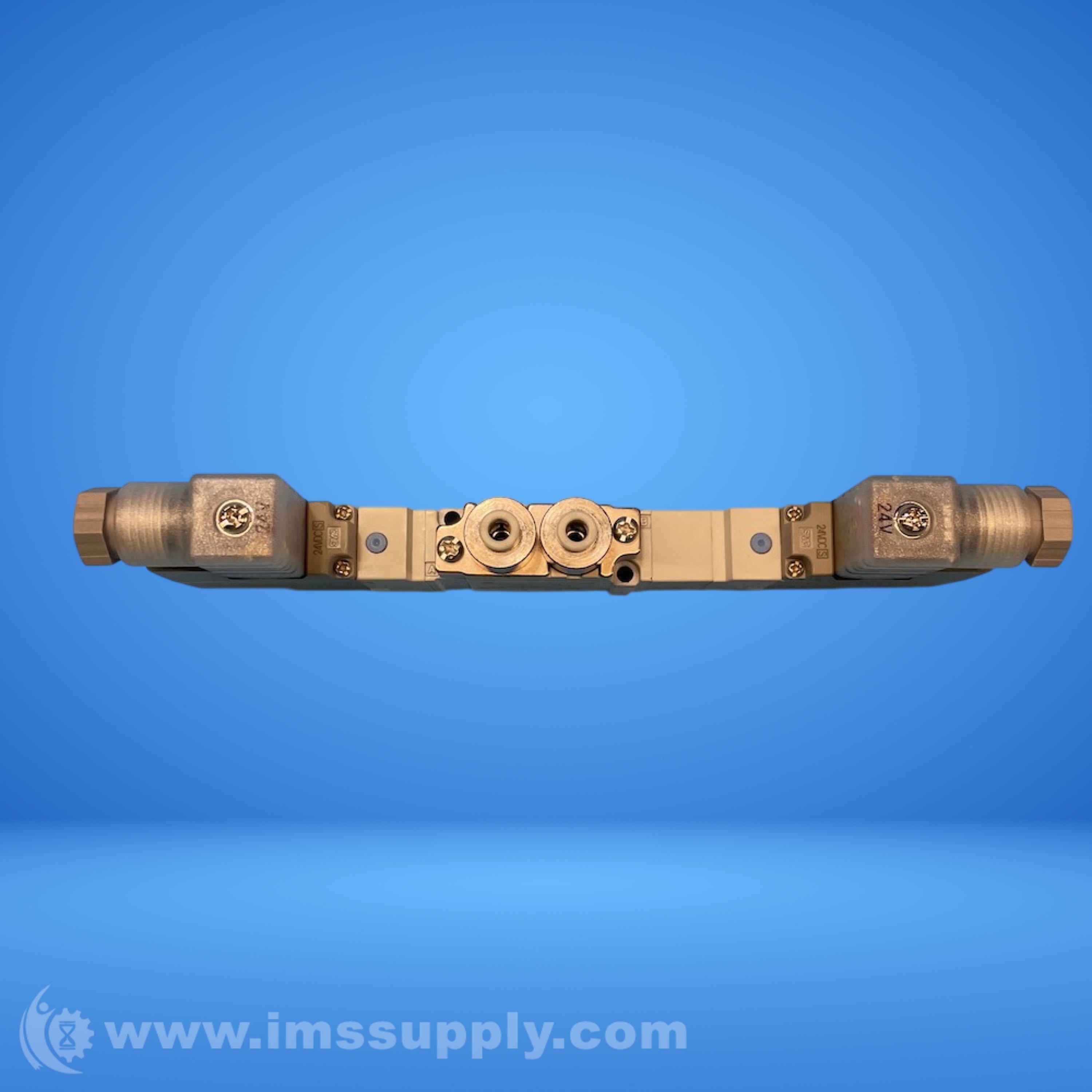

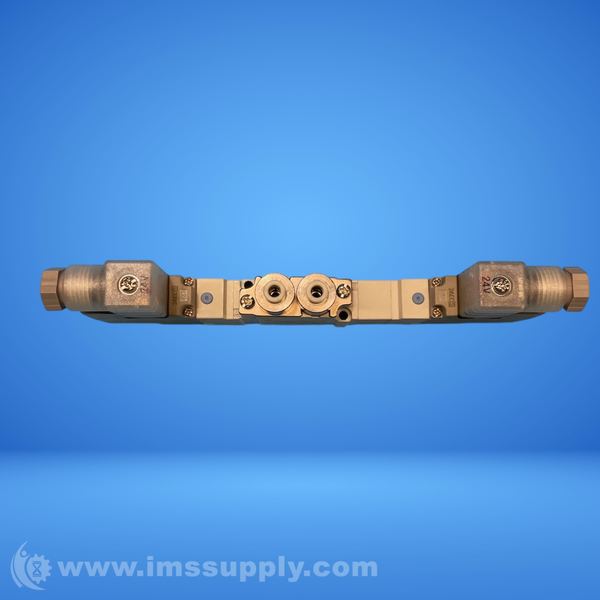

SMC SY5320-5DZ-C4 DOUBLE SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5320-5DZ-C4
IMS Product Code: 2152811
Packaging: Sold Individually
Description:
SMC SY5320-5DZ-C4 Double Solenoid Valve
Double solenoid valve with body ported configuration, DIN terminal electrical entry, and rubber seal material.
Specifications
- Actuation: Piloted Solenoid
- Ambient & fluid temperature: 50 degrees C
- Body Material: Aluminum
- Coil rated voltage: 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
- Coil Specifications: Standard
- Effective area mm^2 (Cv): body ported 10.6 (0.59); base mounted 12.6 (0.7)
- Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 0.19 (P to A/B) Cv, 0.28 (A/B to EA/EB) Cv
- Flow Direction: 4-Way
- Fluid: air
- Light/Surge Voltage Suppressor: With Light/Surge Voltage Suppressor
- Manual Operation Type: Non-Locking Push
- Number Of Positions: 3 (Closed Center)
- Number Of Ports: 5
- Number Of Solenoids: Double
- Operating Medium: Air
- Operating pressure range: (internal pilot) 0.1 - 0.7MPa (external pilot) -100kPa to 0.7MPa (external pilot, pilot pressure range) 0.25 - 0.7MPa
- Overall Height: 45.3 mm
- Overall Length: 167.8 mm
- Overall Width: 15.8 mm
- Piping Type: Body Ported
- Port Size: One-touch fitting for 4
- Port Sizes: 4 mm Push-to-Connect
- Rated Voltage: 24 VDC
- Response time (0.5MPa) w/o indicator light & surge voltage suppressor: 32ms or less
- Response Time: 38 ms
- Seal Material: Rubber
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Electrical Entry: DIN Terminal
- Solenoid Power Consumption: 0.35 W
- Solenoid Supply Voltage: 24 V dc
- Sonic Conductance (C): 2.4 dm³/(s.bar)
- Thread Standard: Rc
- Thread Type: Rc
- Type Of Actuation: 3 Position Closed Center
- Valve Function: Spool
- Valve Series: SY5000
- Voltage: 24 V dc
- Voltage Suppressor: With Light/Surge Voltage Suppressor
- Weight: 0.51224 lb
