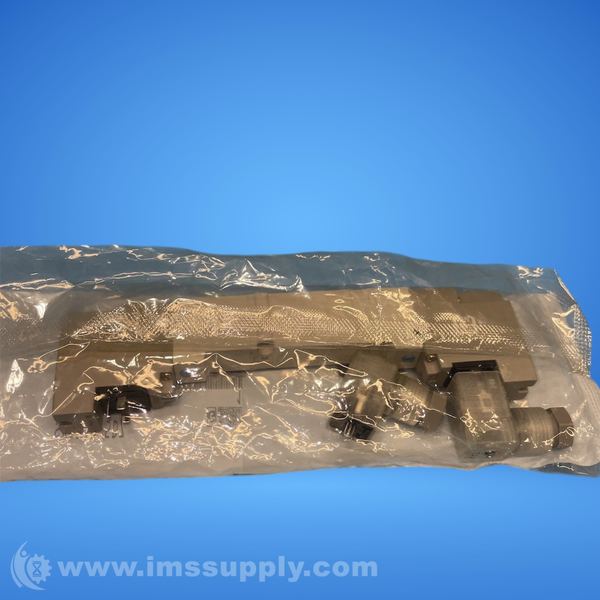

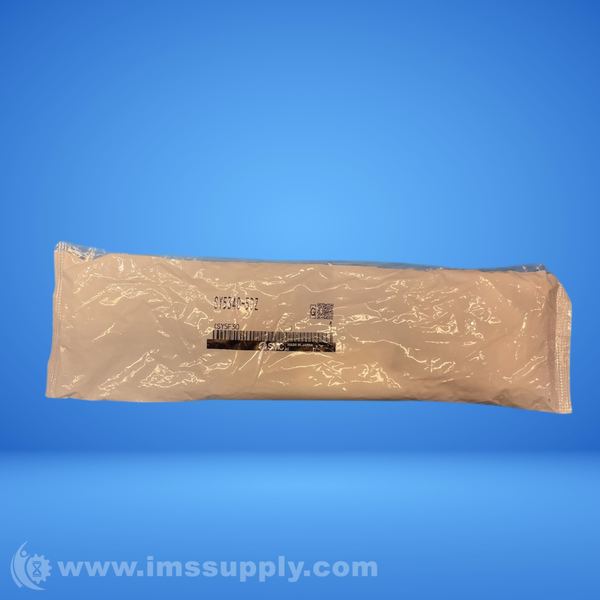

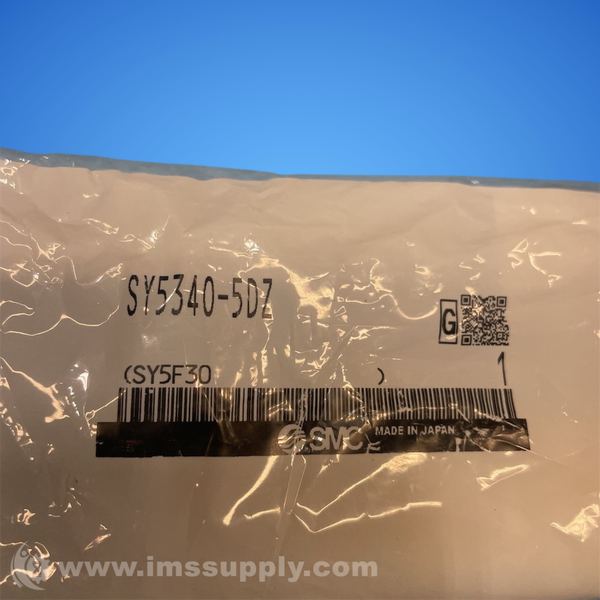

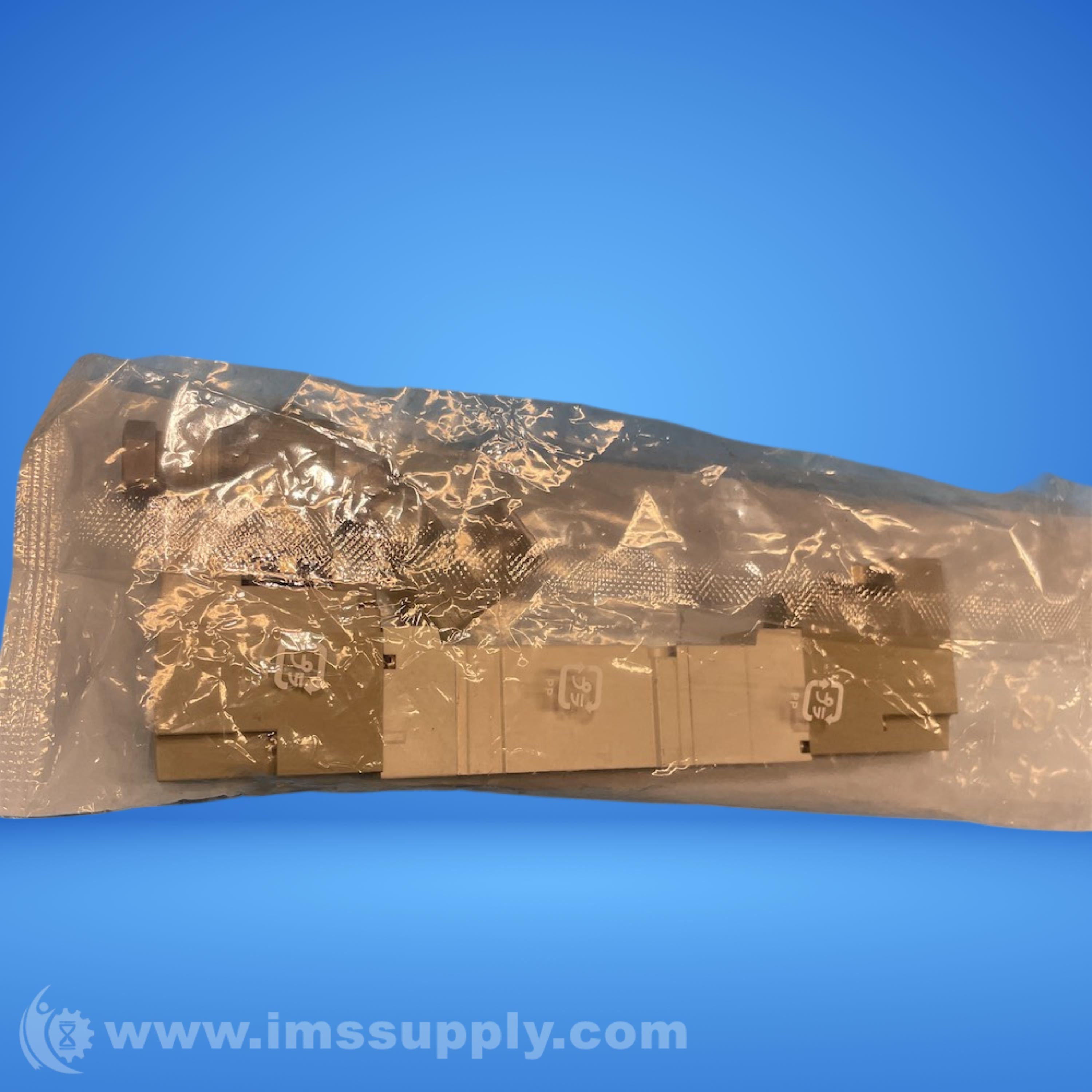

SMC SY5340-5DZ SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY5340-5DZ
IMS Product Code: 2155847
Packaging: Sold Individually
Description:
SMC SY5340-5DZ Solenoid Valve
5-Port Base Mounted Closed Center Solenoid Valve With Light/Surge Voltage Suppressor
Specifications
- Series: SY5000
- Weight: 0.34985 lb
- Dimensions: 3.28 in H x 1.38 in W x 6.61 in L
- Temperature Rating: 14 to 122 deg F
- Type: 5-Port
- Pressure Rating: 101 psi
- Flow Rate: 0.9 Cv
- Body Material: Aluminum
- Fluid: air
- Operating pressure range (internal pilot): 0.1 - 0.7MPa
- external pilot: 100kPa to 0.7MPa
- external pilot, pilot pressure range: 0.25 - 0.7MPa
- Effective area mm sq (Cv) body ported: 10.6 (0.59)
- base mounted: 12.6 (0.7)
- Coil rated voltage: 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
- Response time (0.5MPa): 32ms or less
- Ambient and fluid temperature: 50 deg C
- Piping Type: Base Mounted
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 0.9 Cv
- Manual Operation Type: Non-Locking Push
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: Without Subplate
- Standards Met: IEC 60529, JIS B 8375-1981
- Actuation: Piloted Solenoid
- Overall Height: 83.4 mm
- Overall Length: 167.8 mm
- Overall Width: 35 mm
- Response Time: 38 ms
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Power Consumption: 0.35 W
- Sonic Conductance (C): 2.8 dm³/(s.bar)
- Valve Function: Spool
- Voltage: 24 V dc
- Thread Standard: Rc
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Valve Series: SY5000
- Voltage Suppressor: With Light/Surge Voltage Suppressor
