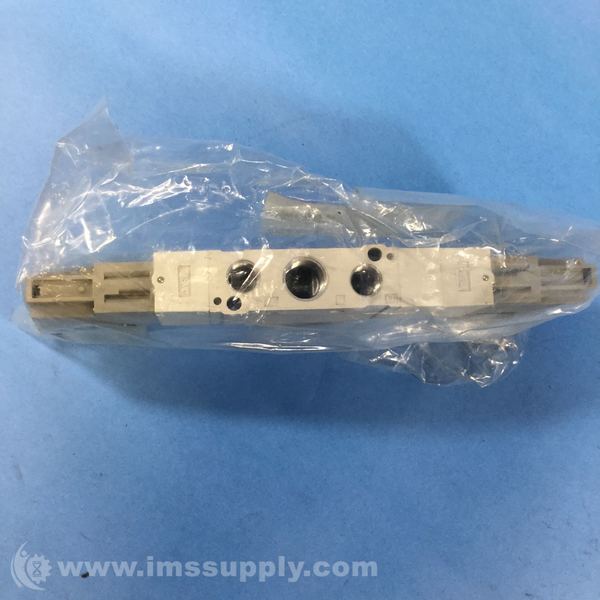

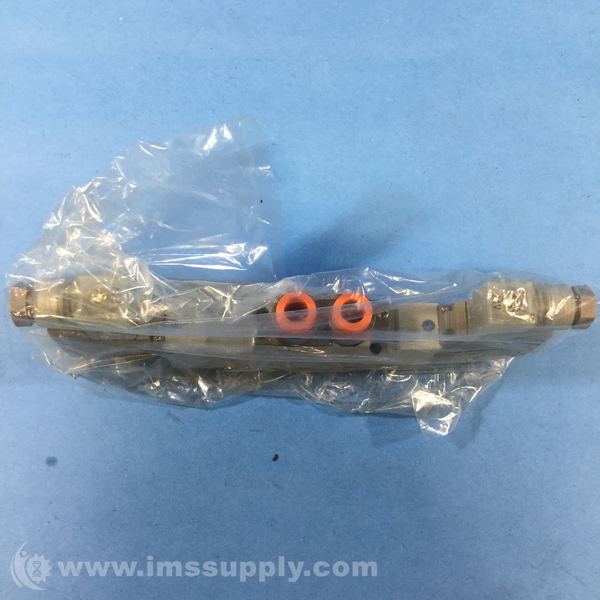

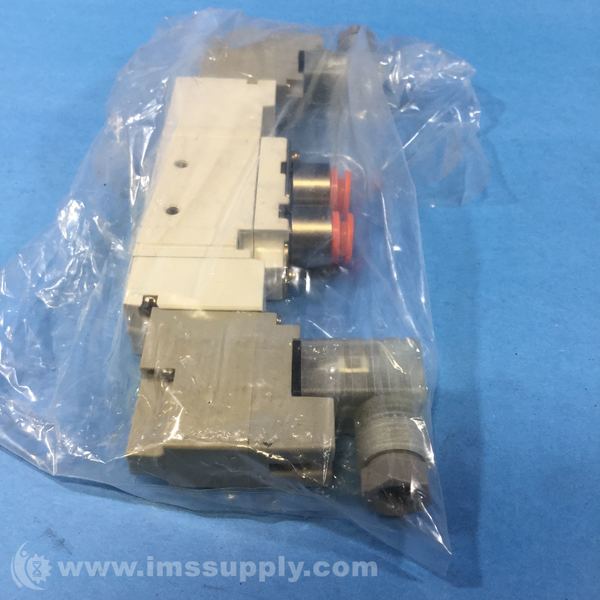

SMC SY7420-5DZ-N9T 5 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: SY7420-5DZ-N9T
IMS Product Code: 1789103
Packaging: Sold Individually
Description:
SMC SY7420-5DZ-N9T 5 Port Solenoid Valve
5 port solenoid valve with 3-position exhaust center configuration, piloted solenoid actuation, and DIN terminal electrical entry. Body ported design with 24 VDC solenoid supply voltage and non-locking push manual override.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 3 (Exhaust Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 1.4 Cv
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 145 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: One-touch fitting for 5/16 in
- Standards Met: IEC 60529, JIS B 8375-1981
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 66 mm
- Overall Length: 182.4 mm
- Overall Width: 18.9 mm
- Response Time: 56 ms
- Solenoid Allowable Voltage Fluct: +/-10 percent
- Solenoid Power Consumption: 0.35 W
- Valve Function: Spool
- Voltage: 24 V dc
- Thread Standard: NPTF
- Bracket Type: w/o Bracket
- Coil Specifications: Standard
- Valve Series: SY7000
- Voltage Suppressor: With Light/Surge Voltage Suppressor
