SMC VBA40A-04GN BOOSTER REGULATOR
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VBA40A-04GN
IMS Product Code: 2139369
Packaging: Sold Individually
Description:

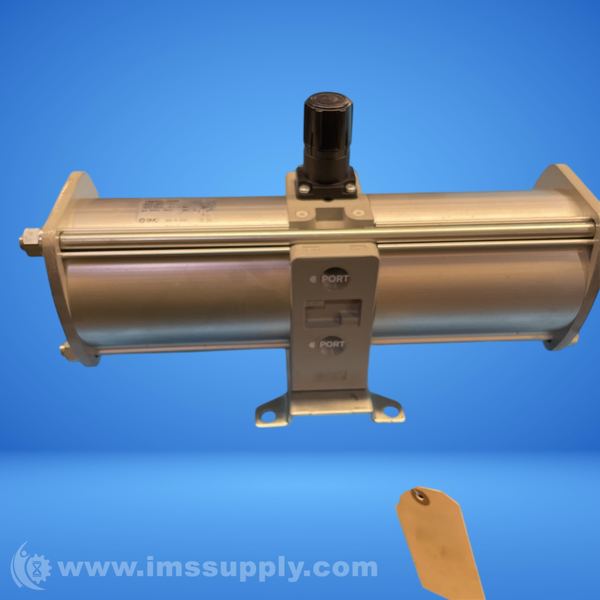

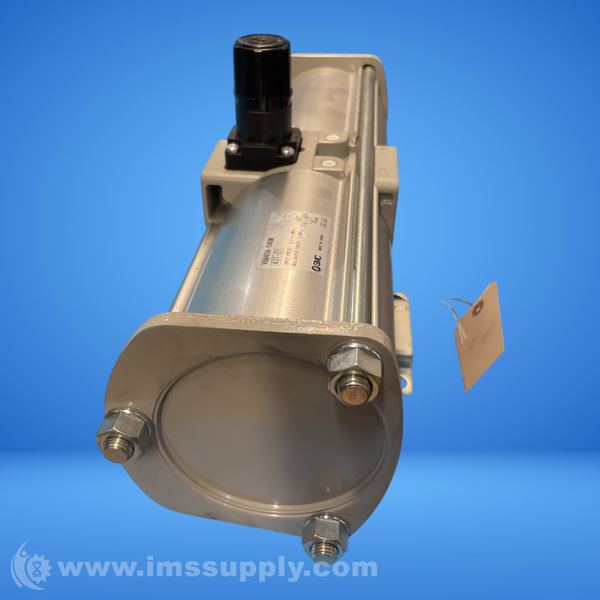

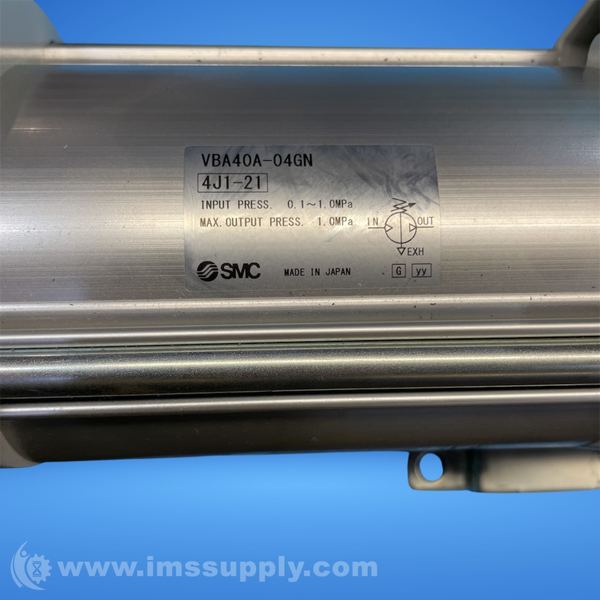

SMC VBA40A-04GN Booster Regulator
Air-operated booster regulator with handle adjustment, 1/2 inch port size, 1900 L/min flow rate, and 0.2 to 1.0 MPa pressure range.
Specifications
- Fluid: Compressed air
- Pressure increase ratio: Twice
- Pressure adjustment mechanism: Handle-operated with relief mechanism
- Max. flow rate: 1900 L/min (ANR)
- Set pressure range: 0.2 to 1.0 MPa
- Supply pressure range: 0.1 to 1.0 MPa
- Proof pressure: 1.5 MPa
- Port size: 1/2
- Pressure gauge port size: 1/8
- Ambient and fluid temperature: 2 to 50 C
- Installation: Horizontal
- Lubrication: Grease (Non-lube)
- Weight: 8.6 kg
- Type: Air Operated
- Series: VBA
- Body Size: 40A
- Knob Type: Handle
- Inlet Port Size: 1/2 in
- Inlet Port Type: Straight
- Outlet Port Size: 1/2 in
- Outlet Port Type: Straight
- Outlet Port Thread Type: Rc
- Height: 215 mm
- Length: 200 mm
- Width: 404 mm
- Country/Region of Manufacture: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
