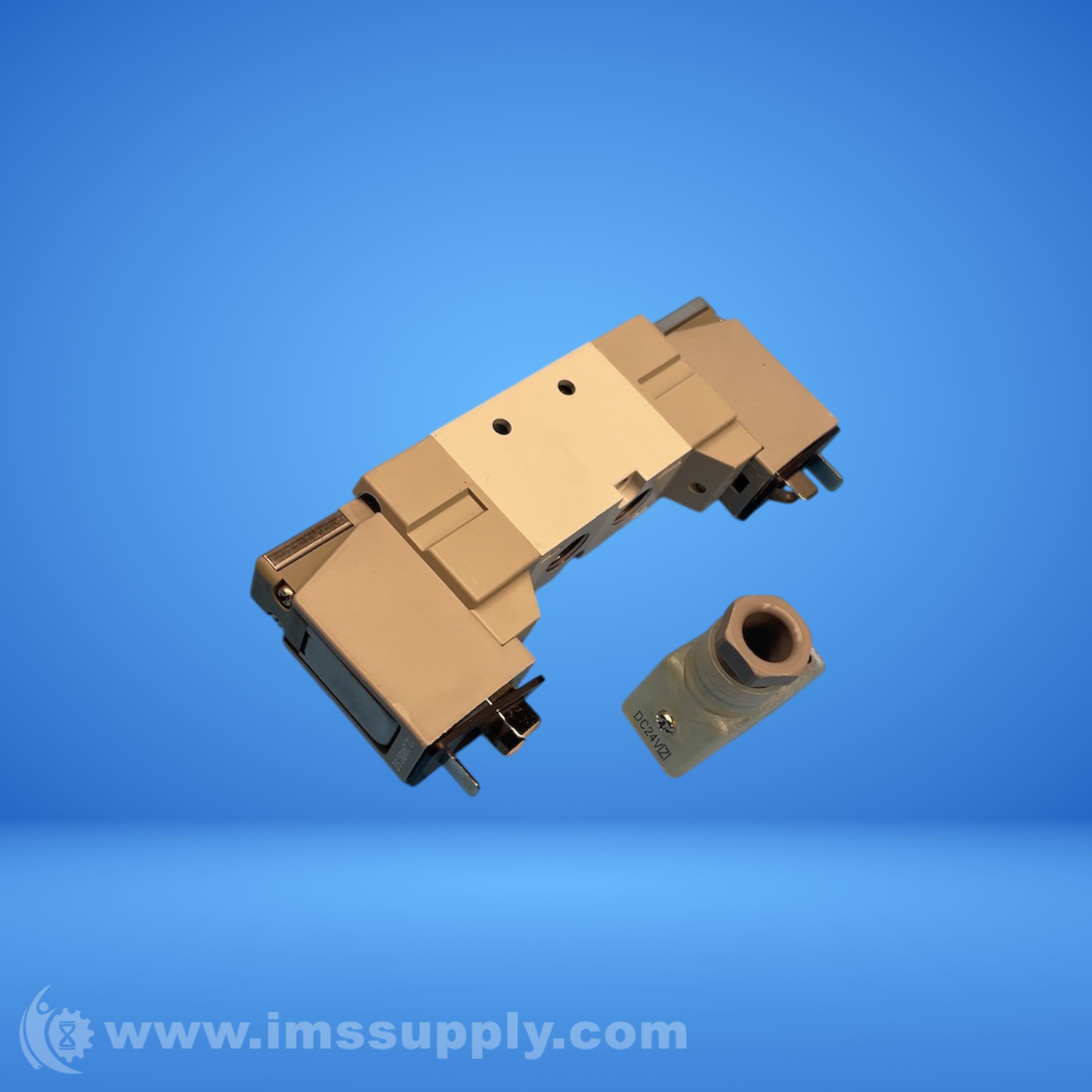

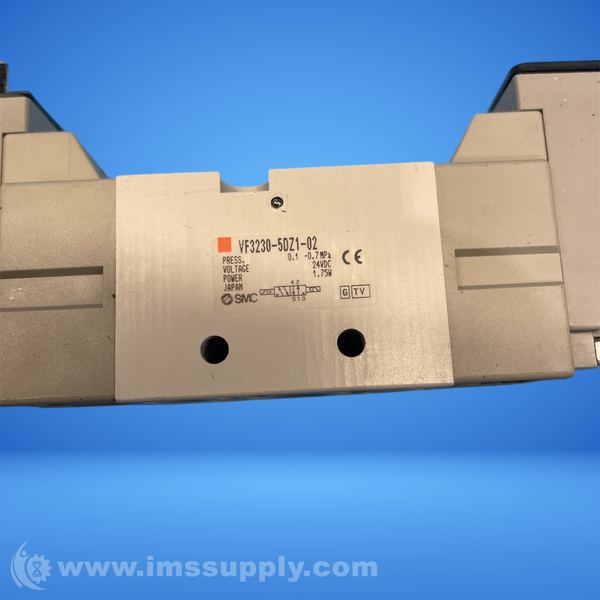

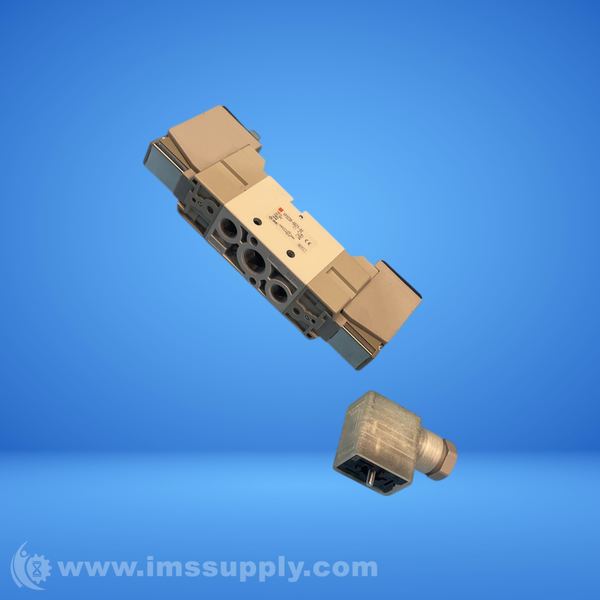

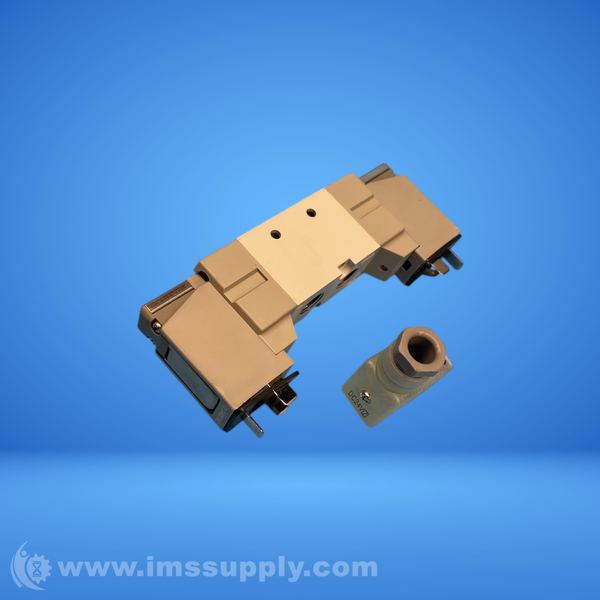

SMC VF3230-5DZ1-02 5 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VF3230-5DZ1-02
IMS Product Code: 2139619
Packaging: Sold Individually
Description:
SMC VF3230-5DZ1-02 5 Port Solenoid Valve
5 port pilot solenoid valve with body ported configuration, piloted solenoid actuation, and DIN terminal electrical entry. Compatible with air operating medium and CE, JIS, RoHS standards.
Specifications
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Piping Type: Body Ported (Side)
- Port Sizes: 1/4 BSPT
- Port Size - Exhaust: 1/8 BSPT
- Seal Material: Nitrile
- Body Material: Aluminum
- Operating Medium: Air
- Flow Direction: 4-Way
- Maximum Operating Pressure: 145 psi
- Operating Temperature Range: 14 to 122 degrees F
- Manual Operation Type: Non-Locking Push
- Actuation: Piloted Solenoid
- Response Time: 12 ms
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Power Consumption: 1.75 W
- Standards Met: CE, JIS, RoHS
- Overall Length: 163.6 mm
- Overall Width: 26.4 mm
- Overall Height: 84.5 mm
- Weight: 0.77933 lb

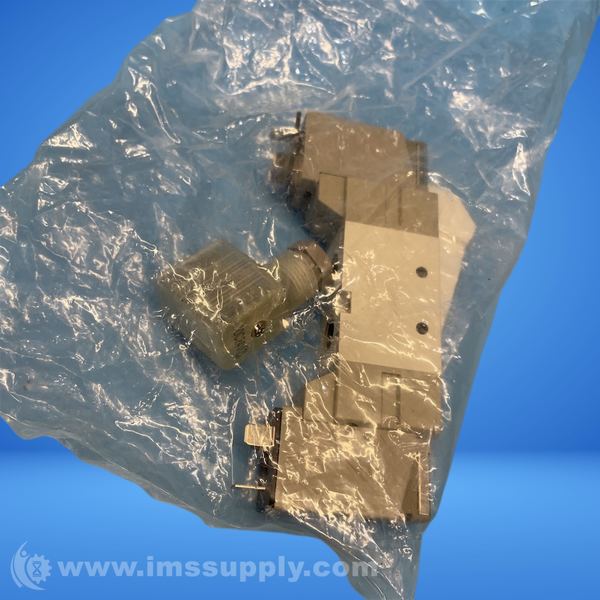

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
