SMC VF3430K-5DU1-01 5-PORT SOLENOID VALVE

Starting At: $129.00

Quick Overview

Manufactured By: SMC
Manufacturer Part Number: VF3430K-5DU1-01
IMS Product Code: 2144287
Packaging: Sold Individually

Description:

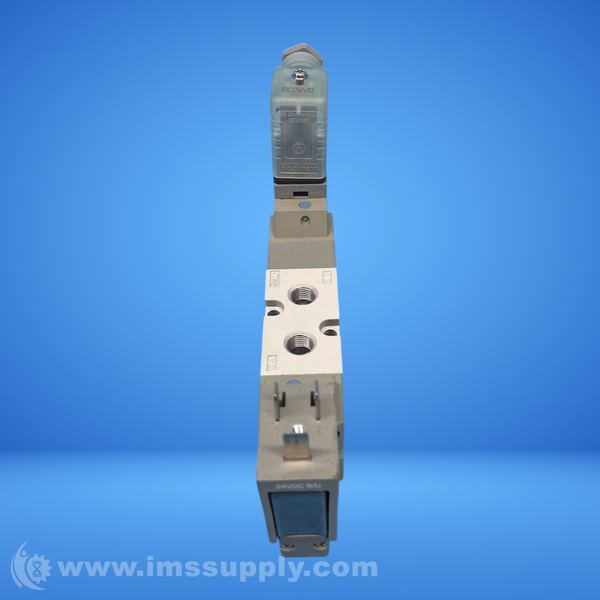

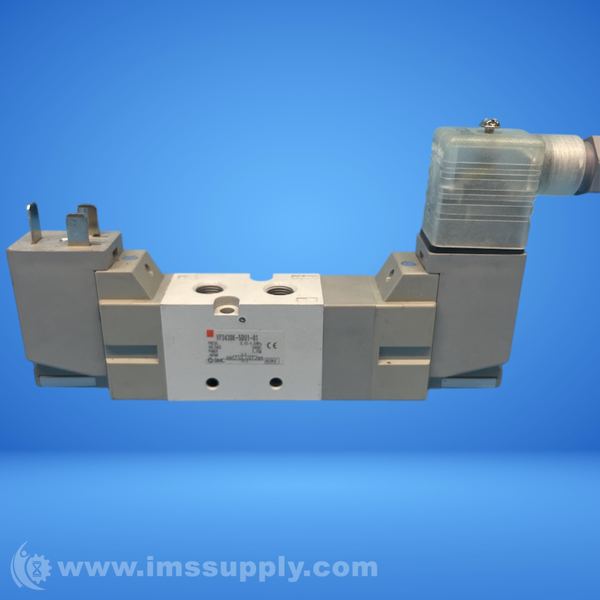

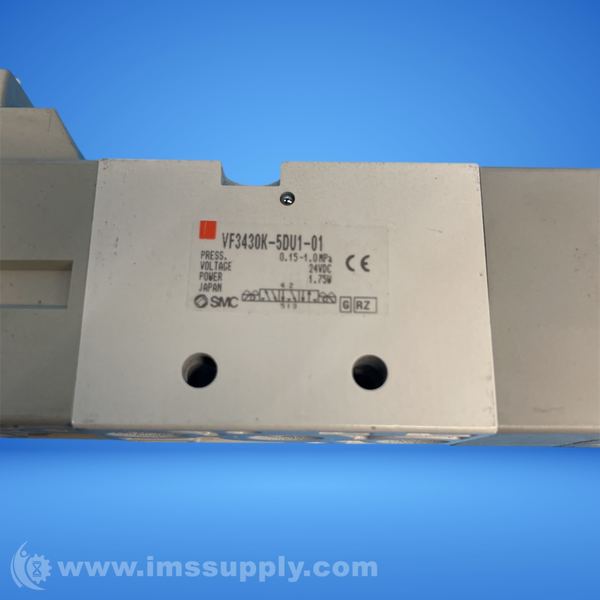

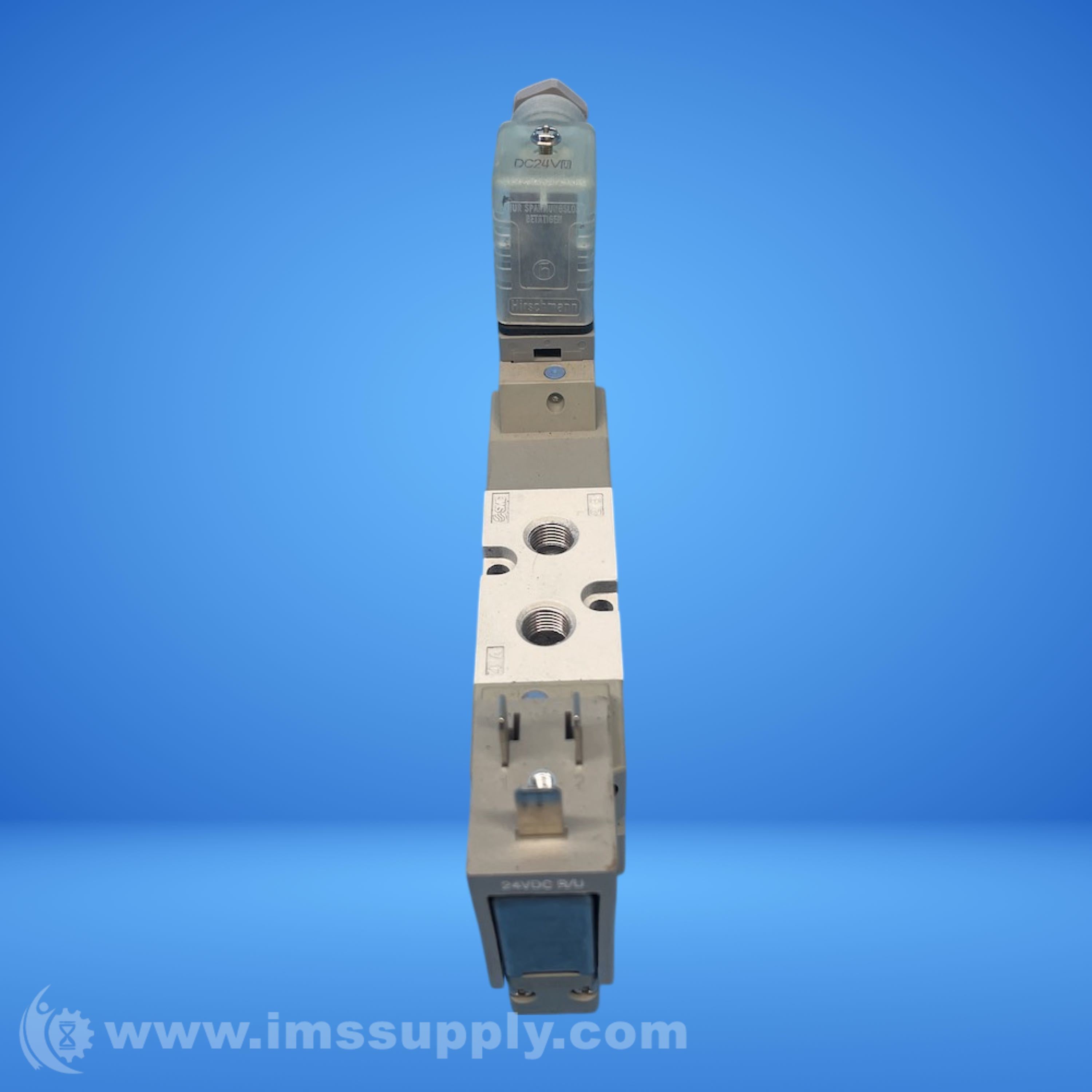

SMC VF3430K-5DU1-01 5-Port Solenoid Valve

Pilot operated 5-port solenoid valve with body ported configuration and single unit setup.

Specifications

  • Series: VF3000
  • Type: Solenoid Valve
  • Port Configuration: 5-Port
  • Operation: Pilot Operated
  • Mounting: Body Ported
  • Configuration: Single Unit
  • Type Of Actuation: 3 Position Exhaust Center
  • Body Size: VF3000
  • Body Option: Pilot Valve Individual Exhaust Type
  • Pressure Specification: High-Pressure Type(1.0MPa)
  • Coil Specifications: Standard
  • Rated Voltage: 24 VDC
  • Electrical Entry: DIN Terminal
  • Light/Surge Voltage Suppressor: With Light/Surge Voltage Suppressor(Non-polar Type)
  • Manual Override: Push-turn Locking Type
  • Port Size: 1/8
  • Thread Type: Rc
  • Bracket: None
  • Weight: 320g
  • Fluid: Air
  • Flow Rate: 1000L/min (ANR)
  • Effective Sectional Area: 12mm˛
  • Power Consumption: 0.45W (standard)
  • Operating Temperature: -10 to 50 degrees C
  • Max Operating Pressure: 1.0MPa
  • Min Operating Pressure: 0.15MPa
  • Response Time: 30ms or less
  • Lubrication: Not Required
  • Mounting Type: Base Mounted


New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.

Availability: 1 In Stock

Ships today if ordered in the next 13 hours and 53 minutes.
