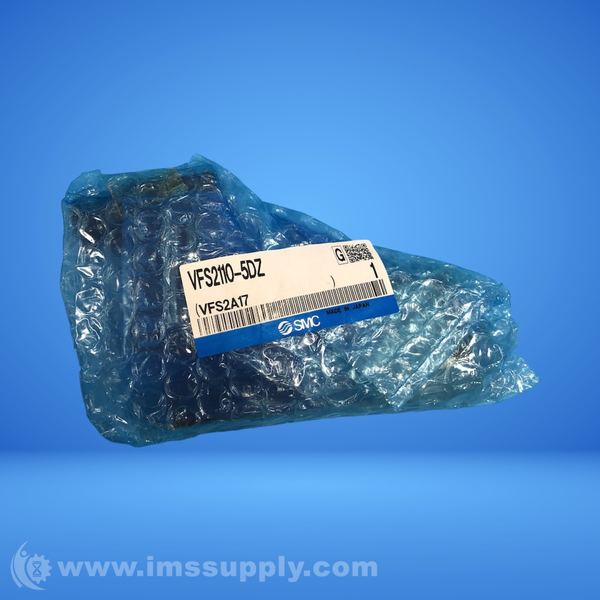

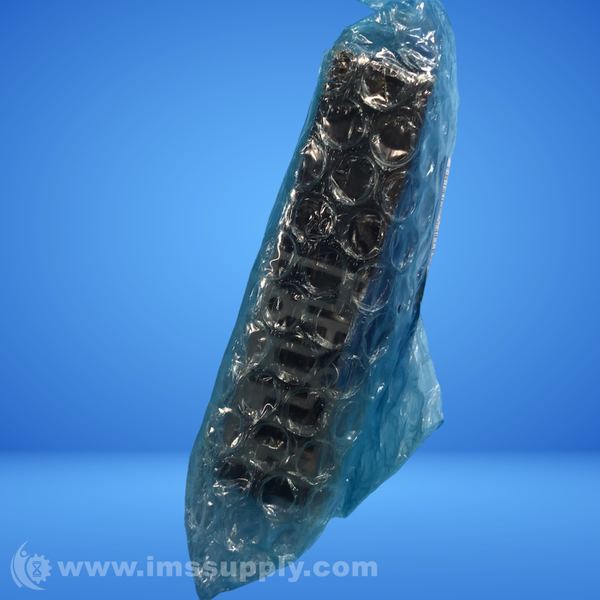

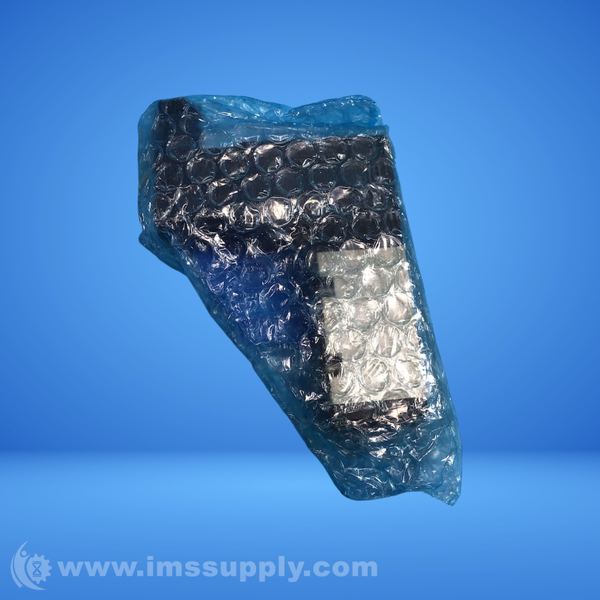

SMC VFS2110-5DZ 5-PORT PILOT OPERATED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS2110-5DZ
IMS Product Code: 1826303
Packaging: Sold Individually
Description:
SMC VFS2110-5DZ 5-Port Pilot Operated Solenoid Valve
5-port pilot operated solenoid valve with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF & G(PF) thread types available.
Specifications
- Series: VFS2000
- Port Configuration: 4/5 PORT
- Weight: 0.48023 lb
- Type Of Actuation: 2 Position Single
- Pilot Type: Internal Pilot
- Rated Voltage: 24 VDC
- Electrical Entry: DIN Terminal
- Option: With Light/Surge Voltage Suppressor
- Pilot Valve Manual Override: Non-locking Push Type (Flush)
- Porting Specifications: Side Ported
- Port Size: Without Sub-plate(For manifold)
- Thread Type: Rc
- Body Option: 10 (base mounted non plug-in)
- Function: 1 (2 position single)
- Lead Wire: D (DIN Connector)
- Manual Override: Non-locking Push Style (Flush)
- Pilot: Internal pilot
- Piping: Side
- Surge Suppressor: Z (light & surge suppressor)
- Voltage: 5 (24VDC)
- Maximum operating pressure: 9.9kgf/cm²
- Ambient & fluid temperature: -10 to 60°C
