SMC VFS3100-5FZ 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS3100-5FZ
IMS Product Code: 2014634
Packaging: Sold Individually
Description:

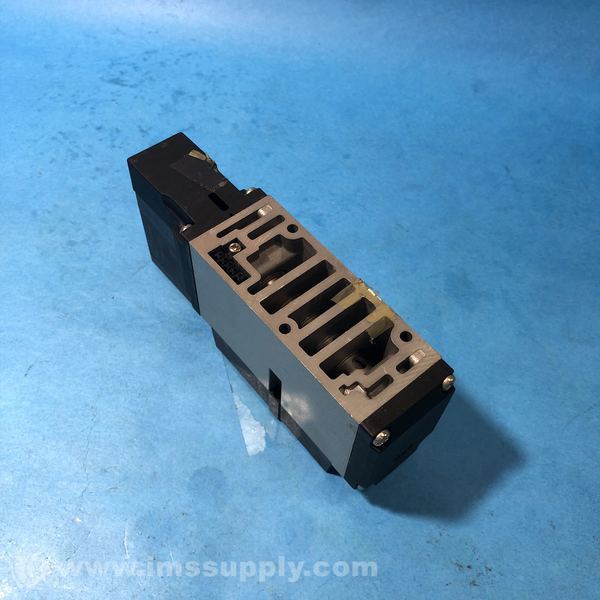

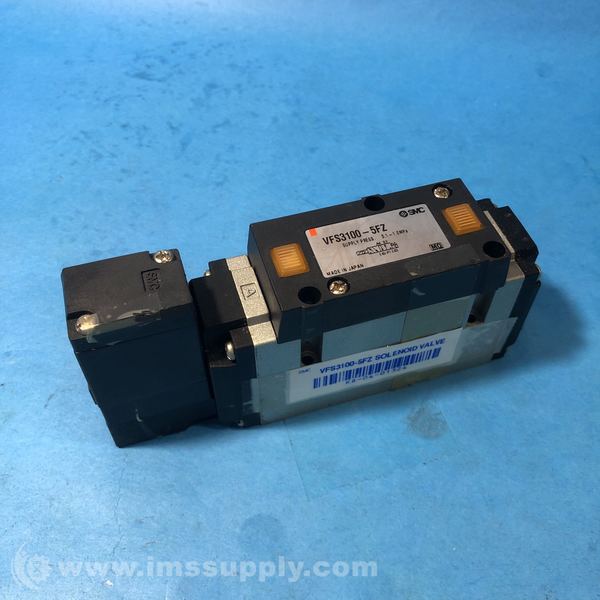

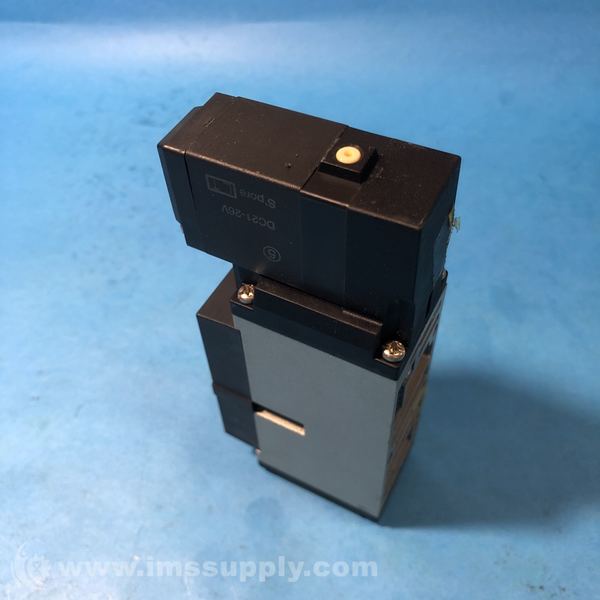

SMC VFS3100-5FZ 5-Port Solenoid Valve
SMC VFS3100-5FZ is a 5-port solenoid valve with an aluminum body, featuring a piloted solenoid actuation and a non-locking push manual override. It is designed for use with air and inert gases.
Specifications
- Series: VFS3000
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Plug-in Conduit Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 140 F
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Port Size: Without Subplate
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 93 mm
- Overall Length: 136 mm
- Overall Width: 50 mm
- Response Time: 20 ms
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 2.04 W
- Valve Function: Spool
- Thread Standard: w/o Sub-plate
- Thread type: Rc(PT)
- Port sizes: 1/4, 3/8
- Maximum operating pressure: 9.9kgf/cm²
- Ambient & fluid temperature: -10 to 60°C
- Manual override: non locking push style
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships on Monday, May 18, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
