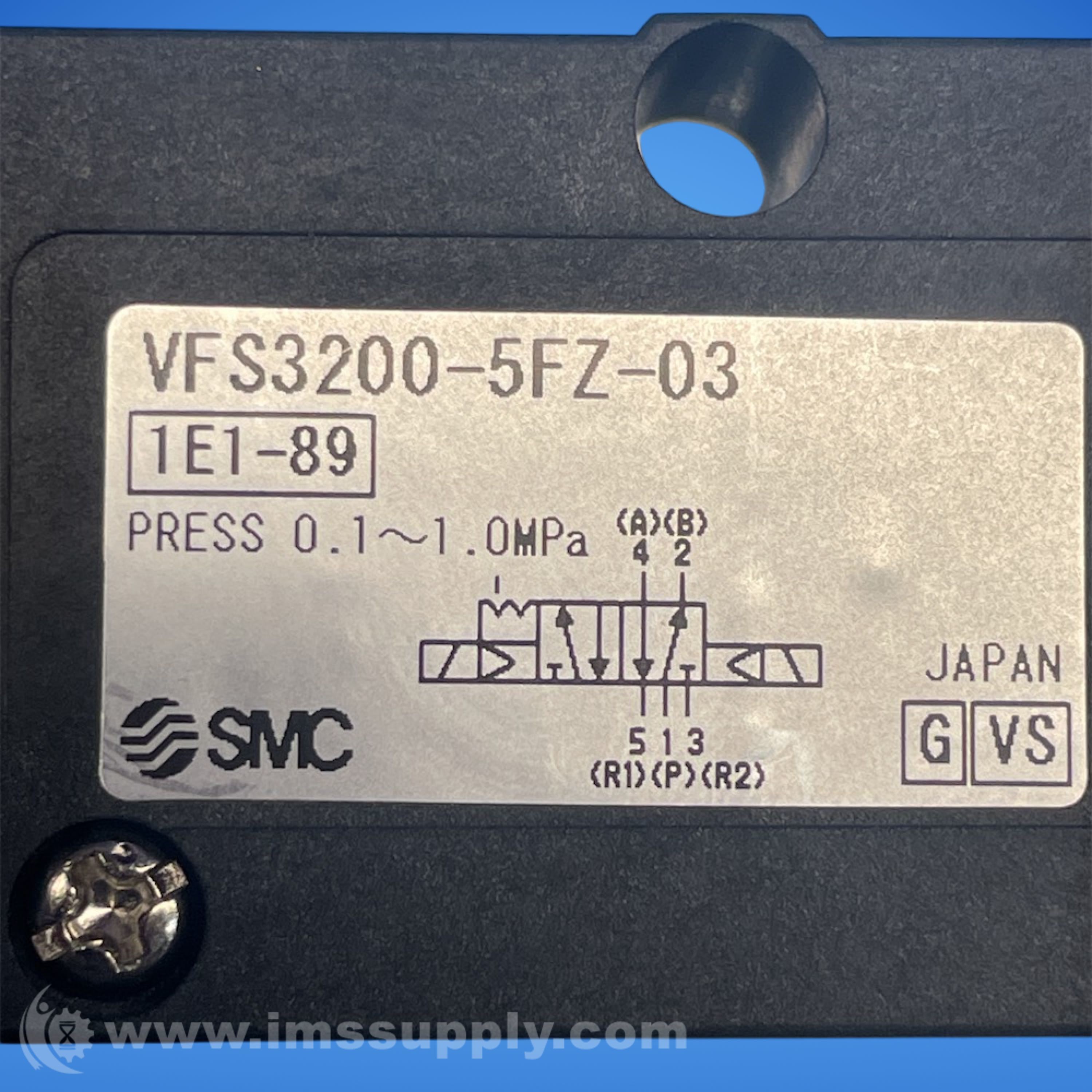

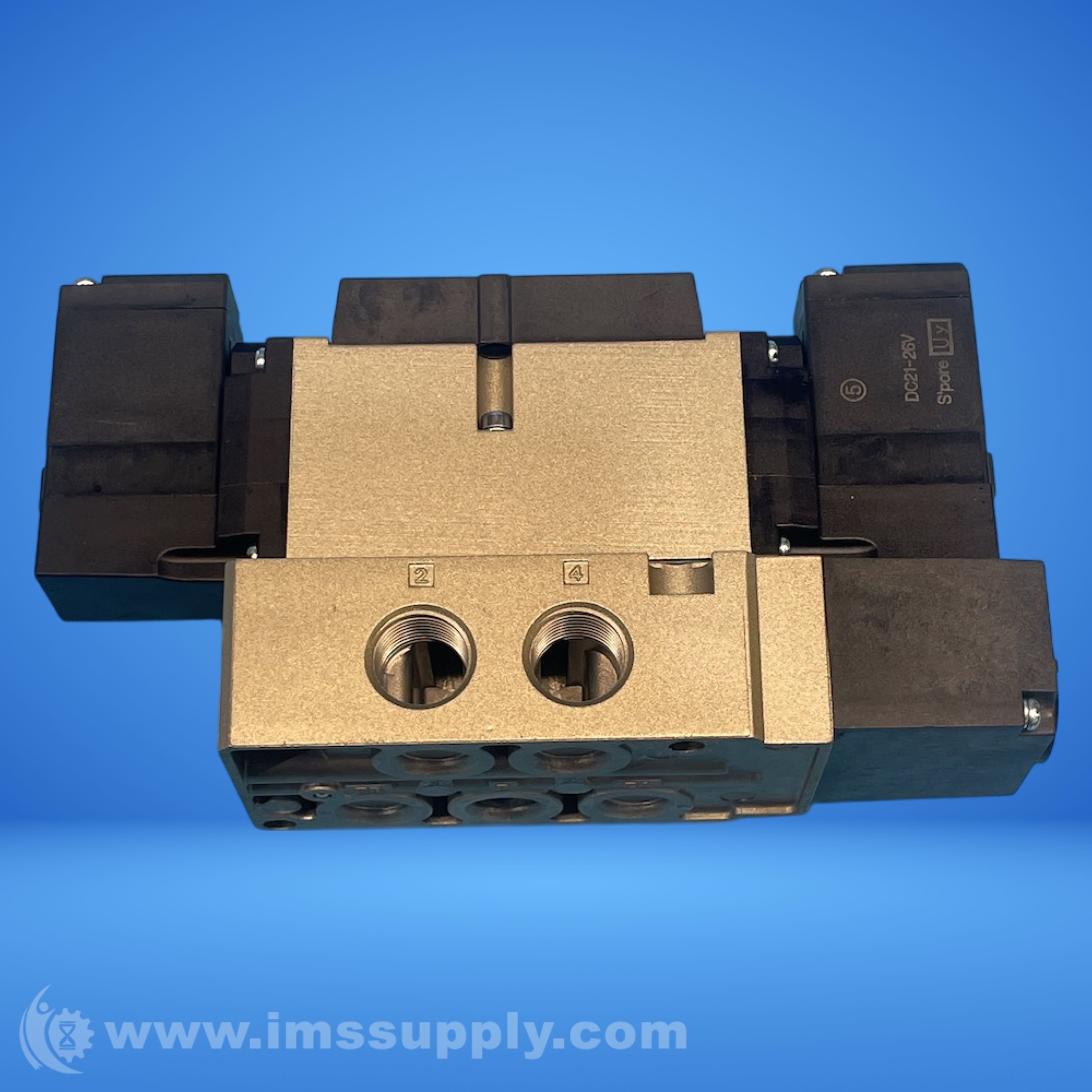

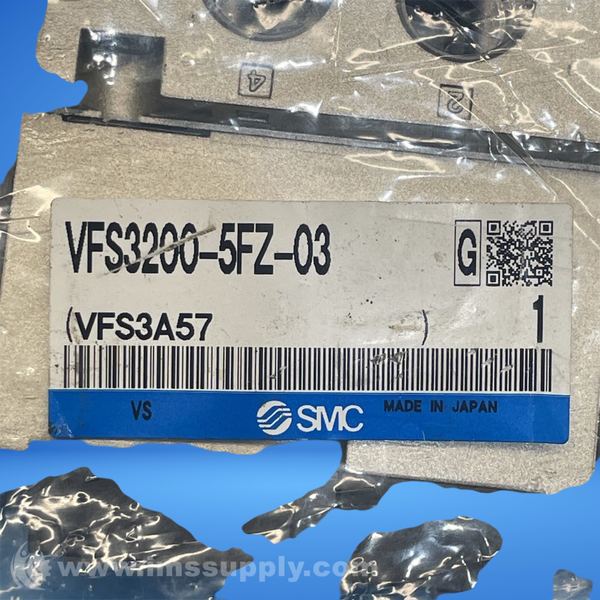

SMC VFS3200-5FZ-03 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS3200-5FZ-03
IMS Product Code: 2112932
Packaging: Sold Individually
Description:
SMC VFS3200-5FZ-03 5-Port Solenoid Valve
5-Port, Pilot Operated, Metal Seal, Plug-in/Non Plug-in, VFS3000 Series
Specifications
- Series: 3000 Series
- Flow Coefficient (Cv): 5.8 dm3/(s·bar)
- Piping Type: Body Ported Subplate Included
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Plug-in Conduit w/Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 140 degrees F
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Port Size: 3/8 in
- Body Material: Aluminum
- Overall Height: 93 mm
- Overall Length: 170.5 mm
- Overall Width: 50 mm
- Response Time: 15 ms
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 2.04 W
- Thread Standard: Rc
- Pilot Type: Internal Pilot
- Rated Voltage: 24 VDC
- Option: With Light/Surge Voltage Suppressor
