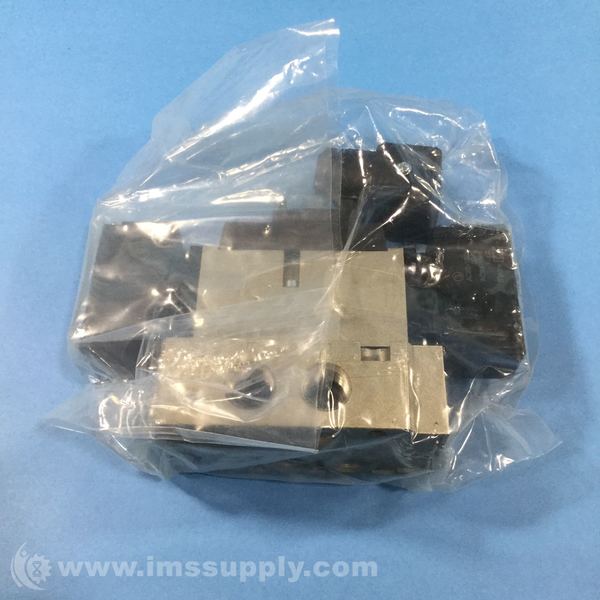

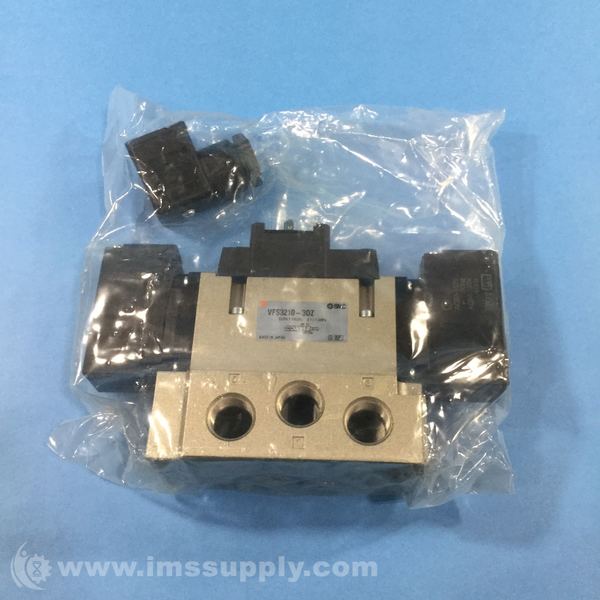

SMC VFS3210-3DZ 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS3210-3DZ
IMS Product Code: 1840107
Packaging: Sold Individually
Description:
SMC VFS3210-3DZ 5-Port Solenoid Valve
5-port pilot solenoid valve with metal seals and base mounted or body ported type manifolds. Double solenoid, DIN terminal, non-locking push manual override.
Specifications
- Series: VFS3000
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 110-120 V ac
- Solenoid Supply Frequency: 50/60 Hz
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Body Material: Aluminum
- Overall Height: 134 mm
- Overall Length: 165 mm
- Overall Width: 50 mm
- Response Time: 15 ms
- Solenoid Allowable Voltage Fluct: -15 to +10%
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 2.1 W
- Valve Function: Spool
