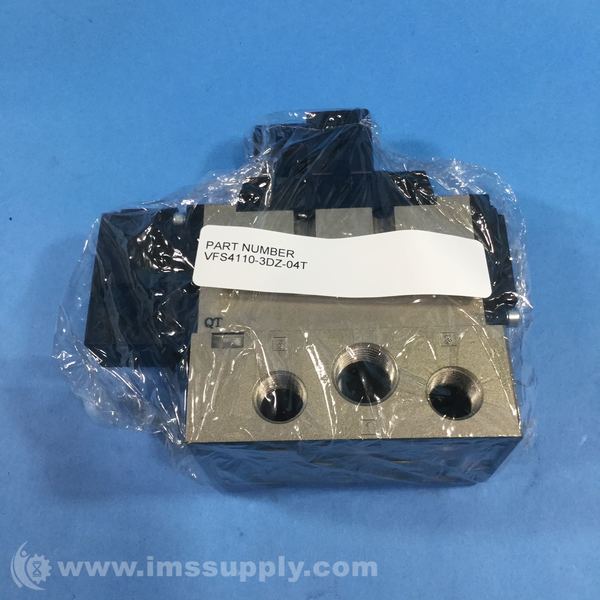

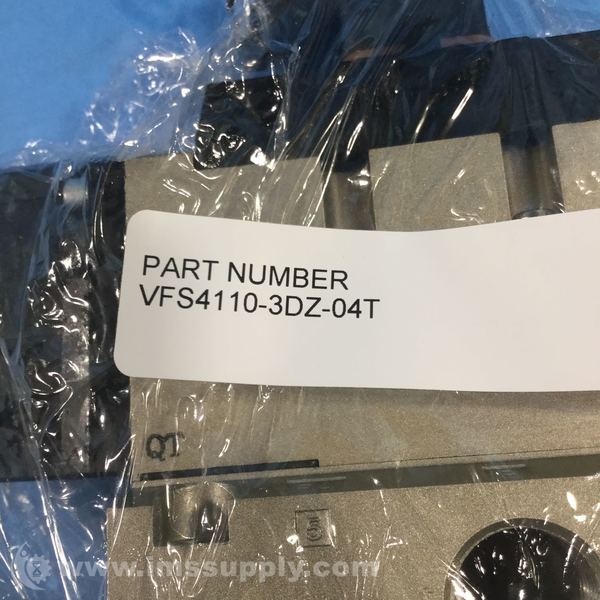

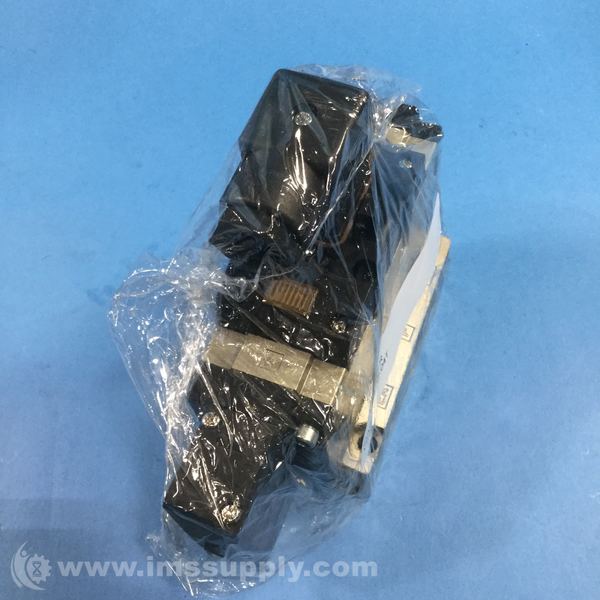

SMC VFS4110-3DZ-04T 5 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS4110-3DZ-04T
IMS Product Code: 1837454
Packaging: Sold Individually
Description:
SMC VFS4110-3DZ-04T 5 Port Solenoid Valve
5 port pilot operated solenoid valve with metal seal, non plug-in base mount.
Specifications
- Series: VFS4000
- Type: VALVE
- Mounting Type: BASE MT
- Weight: 1.02 kg
- Fluid: air and inert gas
- Operating pressure: 0.1MPa to 1.0MPa
- Effective area (Cv): 1.7 to 3.6
- Coil rated voltage: 100, 200 VAC 50/60Hz; 24VDC
- Response time: 55 or less ms
- Ambient/fluid temp: -10 to +60 degrees C
- Piping Type: Base Mounted Non Plug-In
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 110-120 V ac
- Solenoid Supply Frequency: 50/60 Hz
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 145 psi
- Proof Pressure: 218 psi
- Seal Material: Metal
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Sizes: 1/2 NPTF
- Subplate Port Size: 1/2 NPTF
- Actuation: Piloted Solenoid
- Function: 2 position single
- Pilot: Internal Pilot
- Voltage: 110~120VAC 50/60HZ
- Lead Wire: DIN Connector
- Surge Suppressor: Light & Surge Suppressor
