SMC VFS4210-5DZ-04T 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS4210-5DZ-04T
IMS Product Code: 2129457
Packaging: Sold Individually
Description:

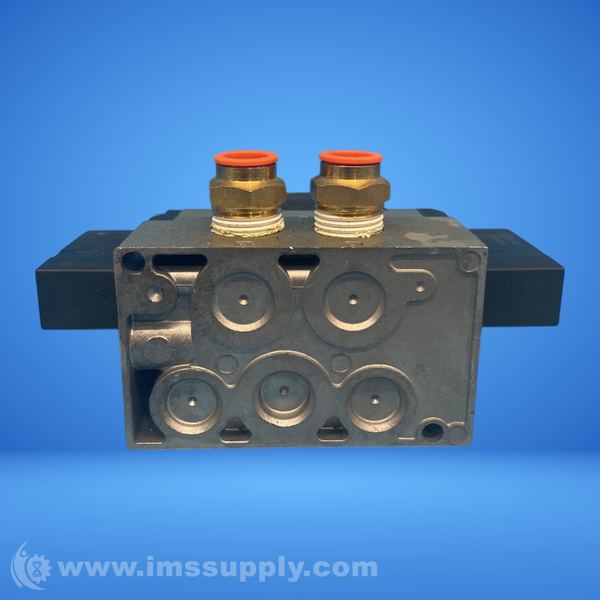

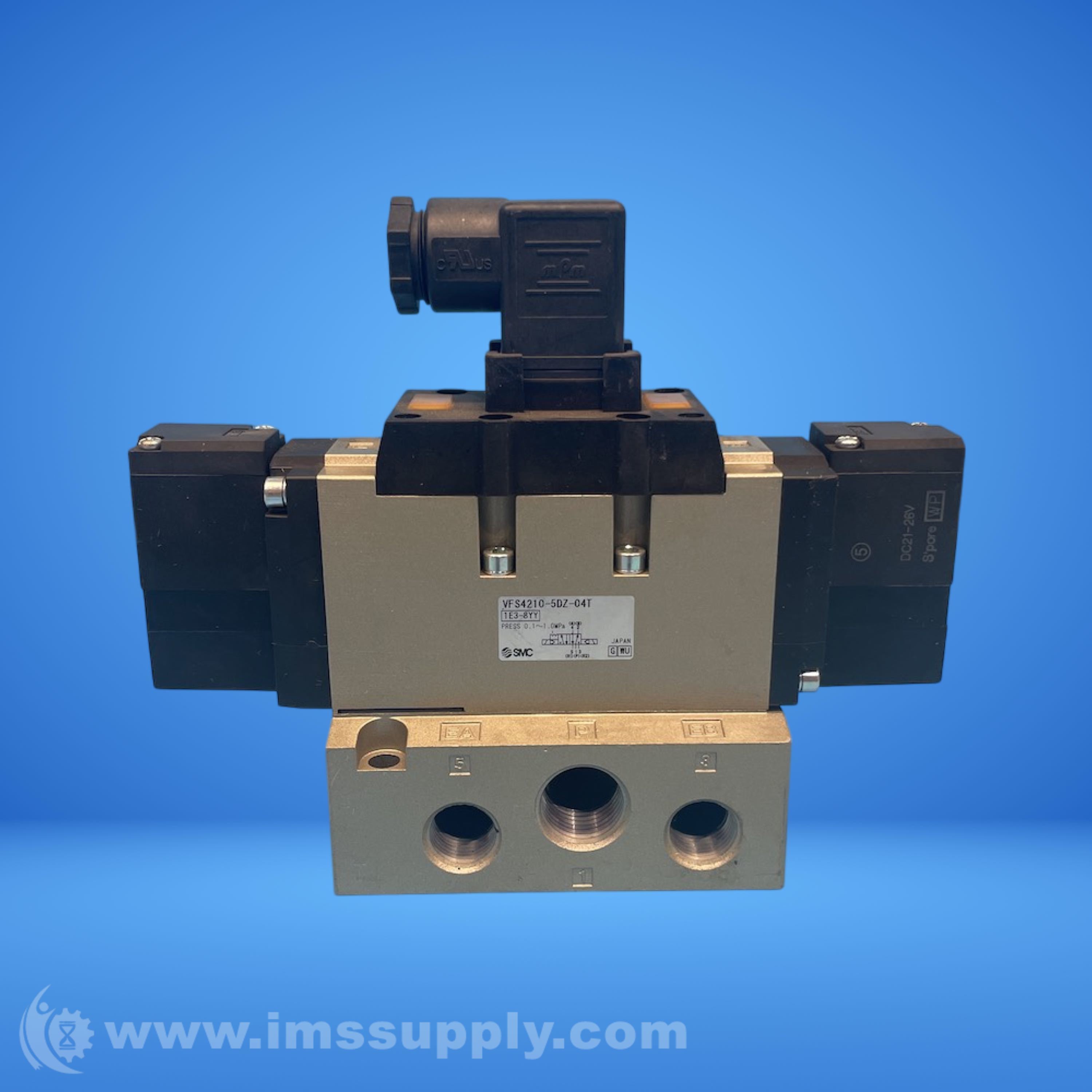

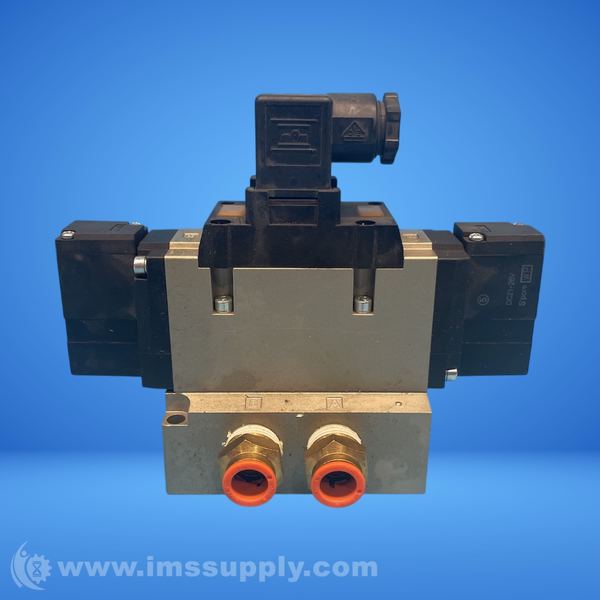

SMC VFS4210-5DZ-04T 5-Port Solenoid Valve
5-port pilot operated solenoid valve with metal seal, base mounted non-plug-in configuration, 2-position double function, 24V DC coil, DIN connector, NPTF thread, internal pilot operation.
Specifications
- Series: VFS4000
- Type: 5-Port, Pilot Operated, Metal Seal
- Configuration: Base Mounted Non Plug-in
- Number of Positions: 2
- Number of Solenoids: Double
- Solenoid Supply Voltage: 24 V DC
- Solenoid Electrical Entry: DIN Connector
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 140 degrees F
- Maximum Operating Pressure: 145 psi
- Proof Pressure: 218 psi
- Seal Material: Metal
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: 1/2 in NPTF
- Subplate Port Size: 1/2 NPTF
- Thread Standard: NPTF
- Fluid: Air and Inert Gas
- Operating Pressure: 0.1 MPa to 1.0 MPa
- Effective Area (Cv): 1.7 to 3.6
- Response Time: 55 ms or less
- Ambient/Fluid Temperature: -10 to 60 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
