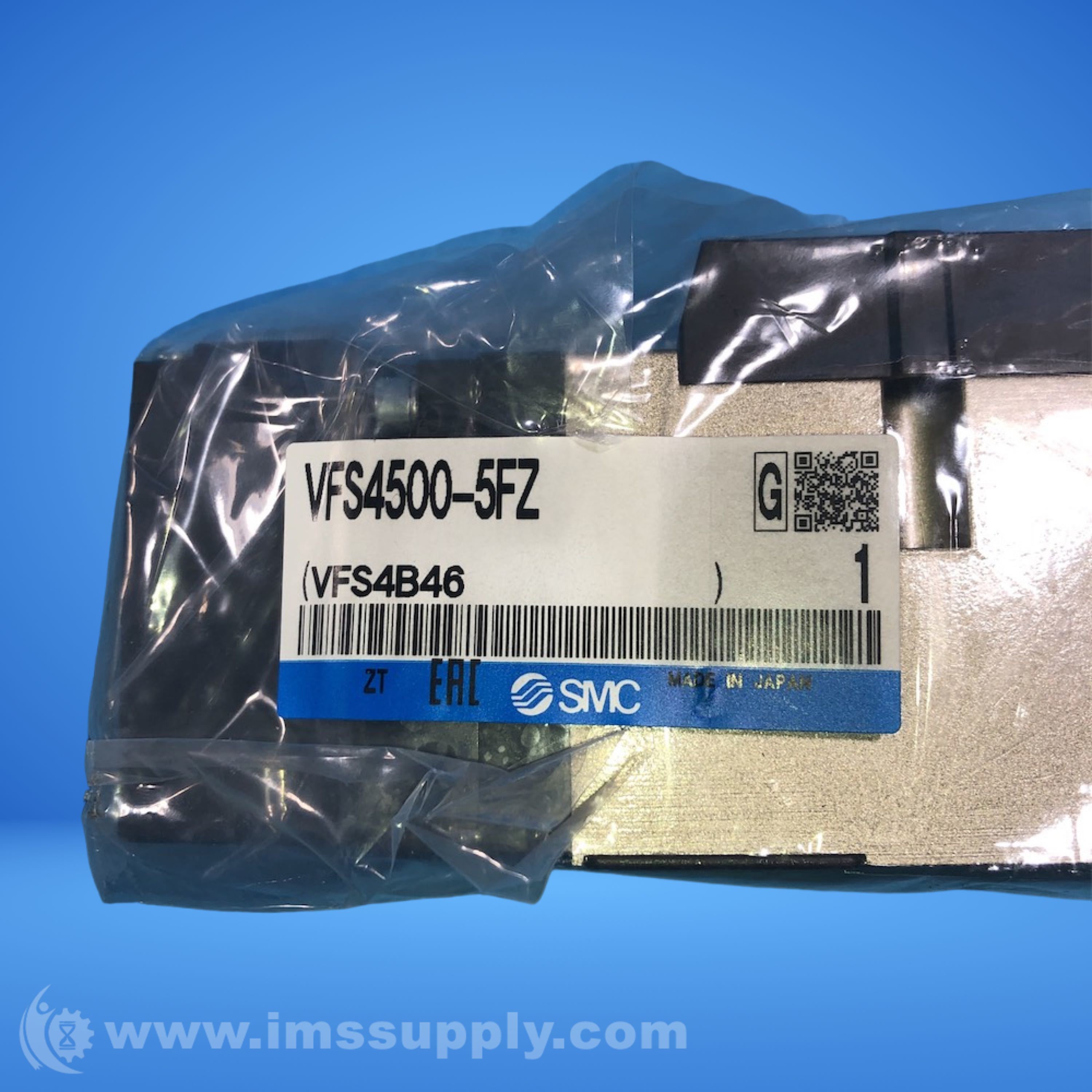

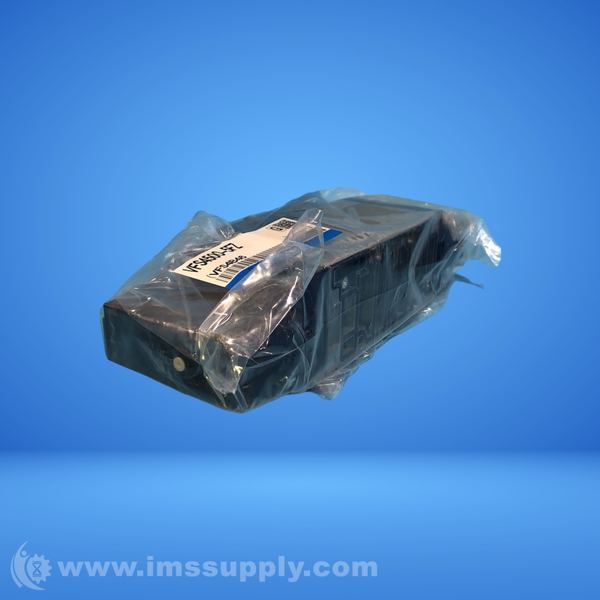

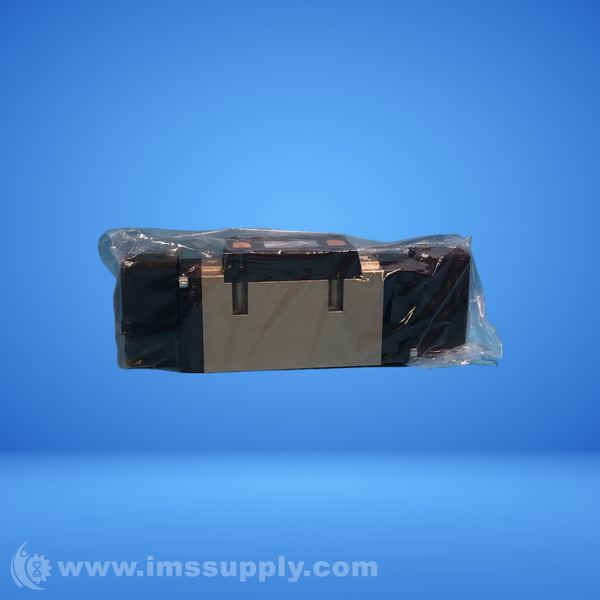

SMC VFS4500-5FZ 5 PORT PILOT OPERATED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS4500-5FZ
IMS Product Code: 1798780
Packaging: Sold Individually
Description:
SMC VFS4500-5FZ 5 Port Pilot Operated Solenoid Valve
5 port pilot operated solenoid valve, metal seal, plug-in, base mounted, internal pilot, 24VDC coil, with light/surge voltage suppressor
Specifications
- Series: VFS4000
- Mounting Type: Base Mount
- Weight: 1.6871 lb
- Symbol: 3 Position Pressure Center
- Body Option: Standard
- Pilot Type: Internal Pilot
- Rated Voltage: 24 VDC
- Option: With Light/Surge Voltage Suppressor
- Pilot Valve Manual Override: Non-locking Push Type (Flush)
- Porting Specifications: Side Ported or None
- Port Size: Without Sub-plate(For manifold)
- Thread Type: Rc
- Fluid: air and inert gas
- Operating pressure: 0.1MPa to 1.0MPa
- Effective area (Cv): 1.7 to 3.6
- Coil rated voltage: 100, 200 VAC 50/60Hz; 24VDC
- Response time: 55 or less ms
- Ambient/fluid temp: -10 to 60 C
- Function: 5 (3 Position Pressure Center)
- Body Option: 0 (Base Mounted Plug-in)
- Direct Manual Override: 0 (Standard)
- Pilot: Internal Pilot
- Voltage: 5 (24VDC)
- Lead Wire: F (Plug-in)
- Surge Suppressor: Z (Light & Surge Suppressor)
- Manual Override: Non-locking Push Style (Flush)
- Piping: Side Ported (Or None in Case of w/o Subplate)
- Thread: Rc (Or None in Case of w/o Subplate)
- Number Of Ports: 5
- Number Of Positions: 3 (Pressure Center)
- Number Of Solenoids: 2
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Plug-in
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 145 psi
- Proof Pressure: 218 psi
- Seal Material: Metal
- Operating Medium: Air
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
