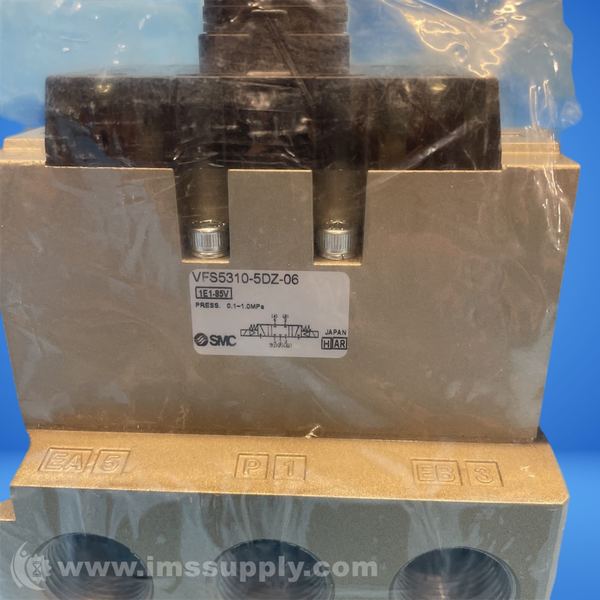

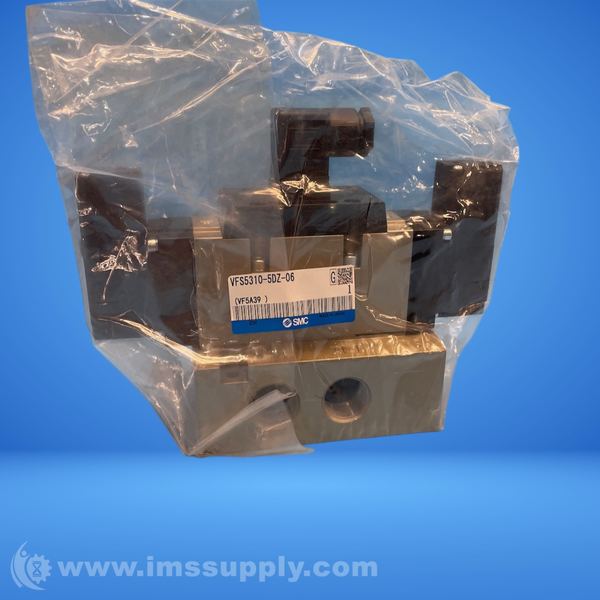

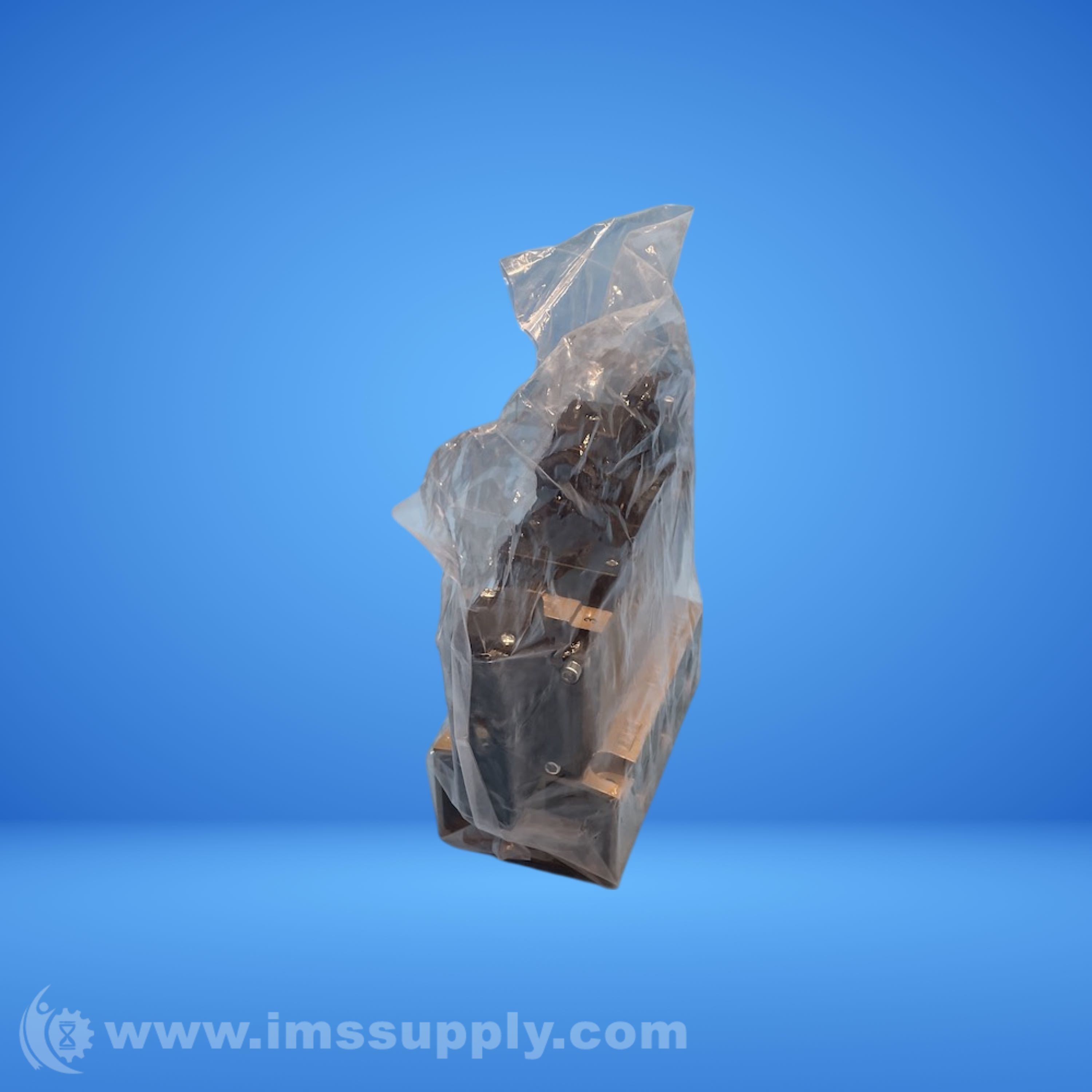

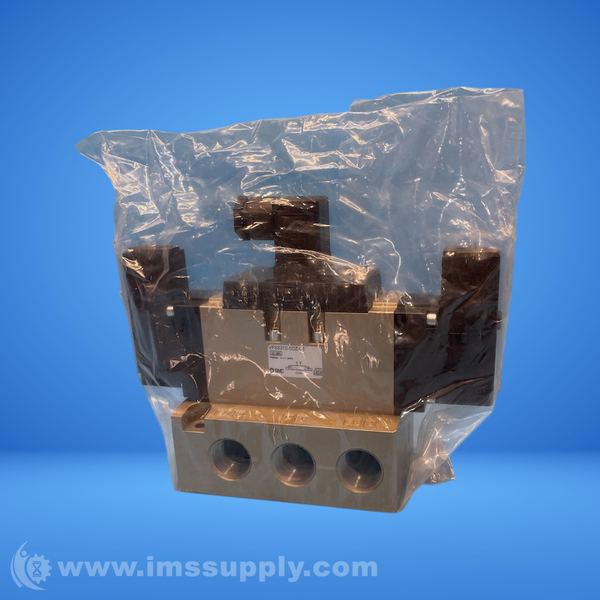

SMC VFS5310-5DZ-06 5 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VFS5310-5DZ-06
IMS Product Code: 1980398
Packaging: Sold Individually
Description:
SMC VFS5310-5DZ-06 5 Port Solenoid Valve
5 port pilot operated solenoid valve with metal seal, non plug-in base mount, 3 position closed center function
Specifications
- Series: VFS5000
- Type: VALVE
- Mounting: BASE MT
- Piping Type: Base Mounted Non Plug-In
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 140 degrees F
- Maximum Operating Pressure: 145 psi
- Proof Pressure: 218 psi
- Seal Material: Metal
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Sizes: 3/4 BSPT
- Subplate Port Size: 3/4 BSPT
- Actuation: Piloted Solenoid
- Function: 3 position closed center
- Fluid: air and inert gas
- Operating pressure: 0.1MPa to 1.0MPa
- Effective area (Cv): 2.2 to 5.7
- Response time: 60 or less ms
- Ambient/fluid temp: -10 to +60 degrees C
- Pilot Type: Internal Pilot
- Rated Voltage: 24 VDC
- Option: With Light/Surge Voltage Suppressor
- Pilot Valve Manual Override: Non-locking Push Type (Flush)
- Porting Specifications: Side Ported or None
- Port Size: 3/4
- Thread Type: Rc
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
