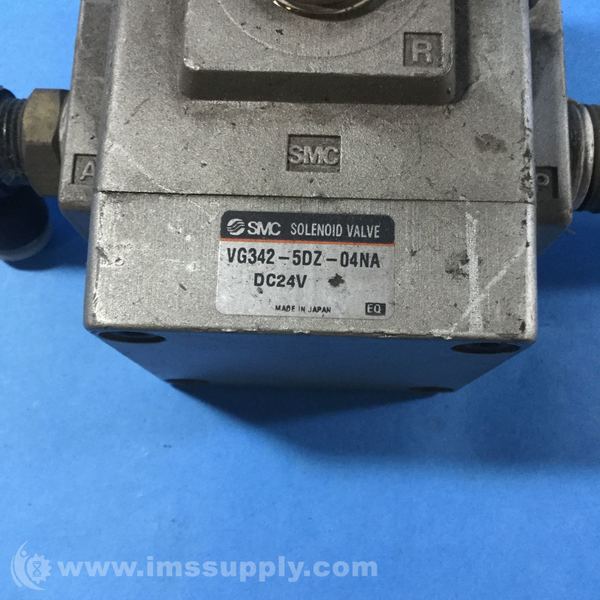

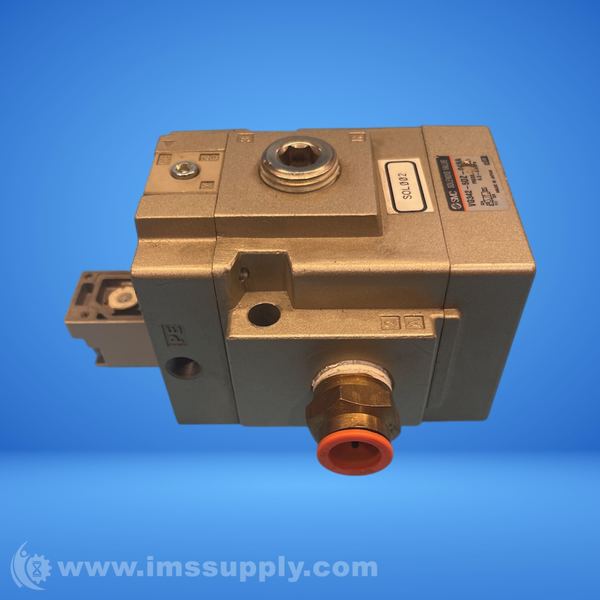

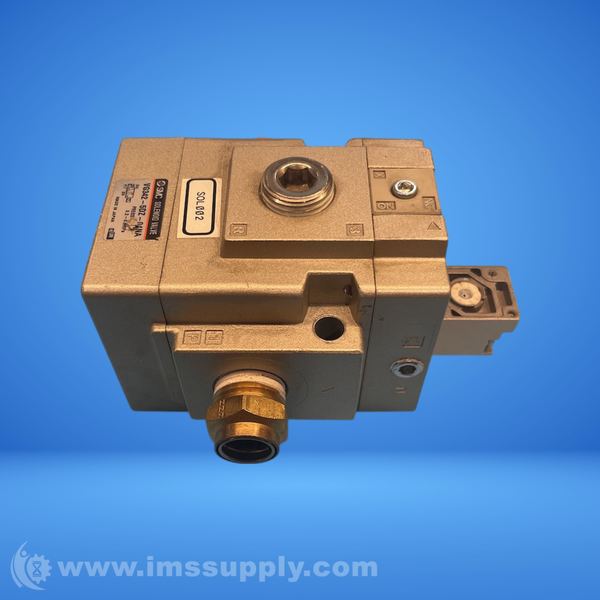

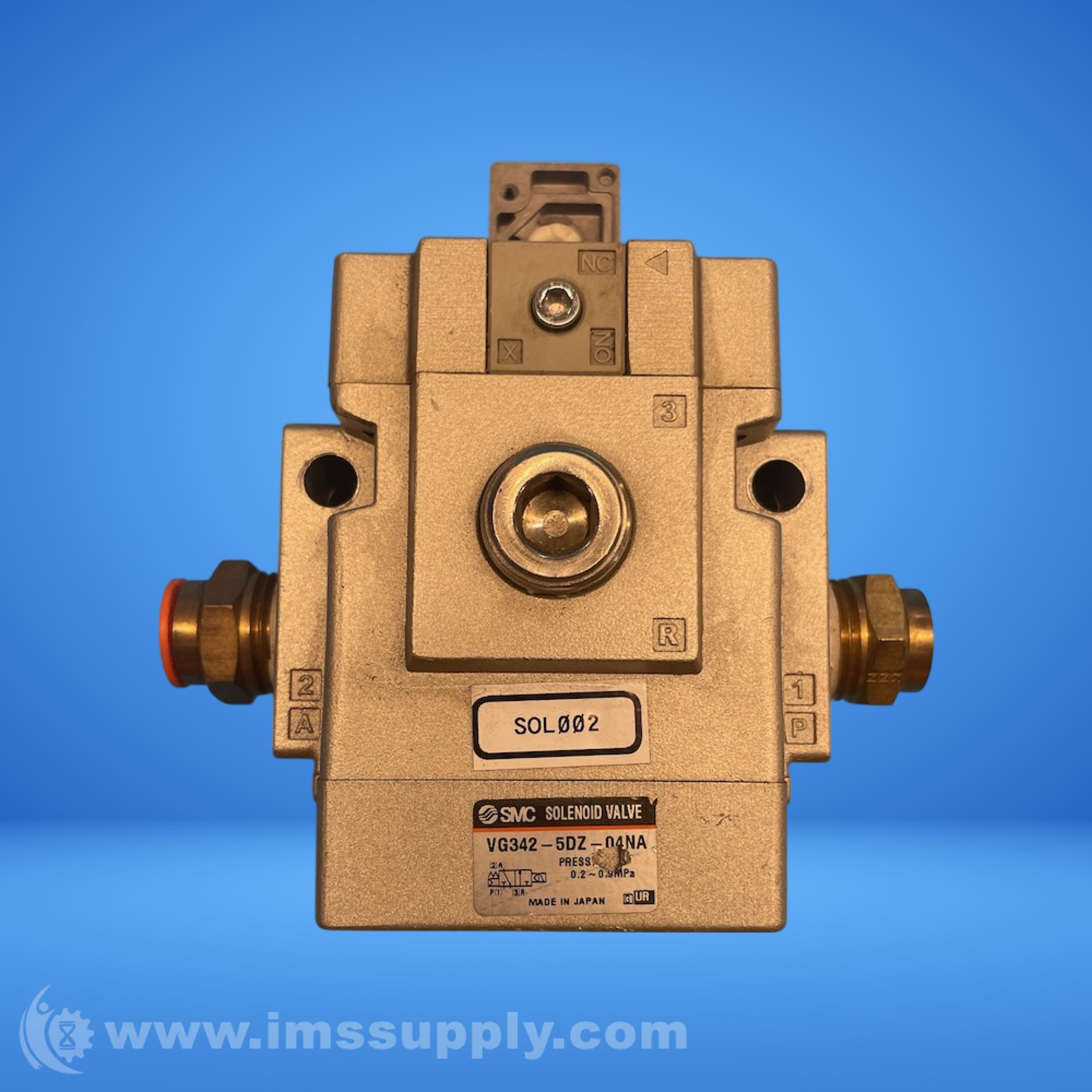

SMC VG342-5DZ-04NA 3-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VG342-5DZ-04NA
IMS Product Code: 1807390
Packaging: Sold Individually
Description:
SMC VG342-5DZ-04NA 3-Port Solenoid Valve
3-Port, Pilot Operated, Poppet Type, Rubber Seal, Solenoid Valve
Specifications
- Series: VG342
- Type: Solenoid Valve
- Port Configuration: 3-Port
- Operation Type: Pilot Operated
- Seal Type: Rubber Seal
- Rated Voltage: 24 VDC
- Electrical Entry: DIN Terminal
- Light/Surge Voltage Suppressor: With Light/Surge Voltage Suppressor
- Bore Size: 1/2
- Thread Type: NPT
- Passage Symbol: N.C.(Normally Closed)
- Pilot Valve Option: Standard Type
- Actuator Type: Pilot
- Body Material: Aluminum Alloy/NBR
- End Style: NPT
- Media: Air
- Nominal Size: 1/2 in
- Pressure Rating: 0.2 to 0.9 MPa
- Temperature Rating: -10 to 50 degrees C
New - Missing Box (Special):
two attachments
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

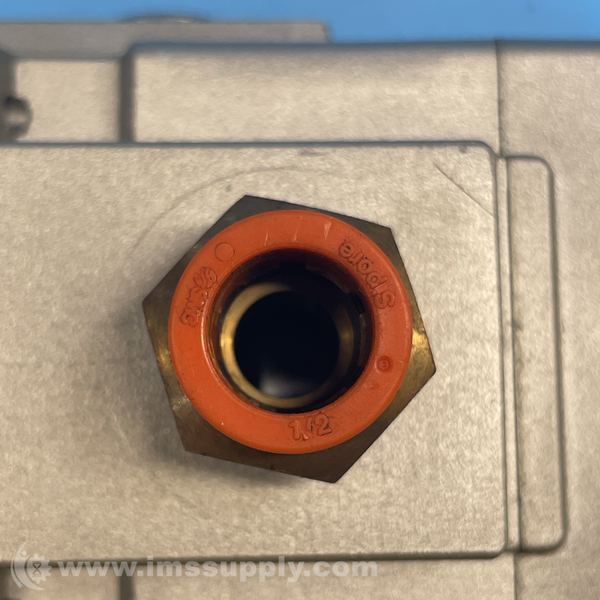

Two fittings attached and is missing the DIN terminal connector
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
