SMC VNH413A-25A-5TZ COOLANT VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VNH413A-25A-5TZ
IMS Product Code: 1799036
Packaging: Sold Individually
Description:

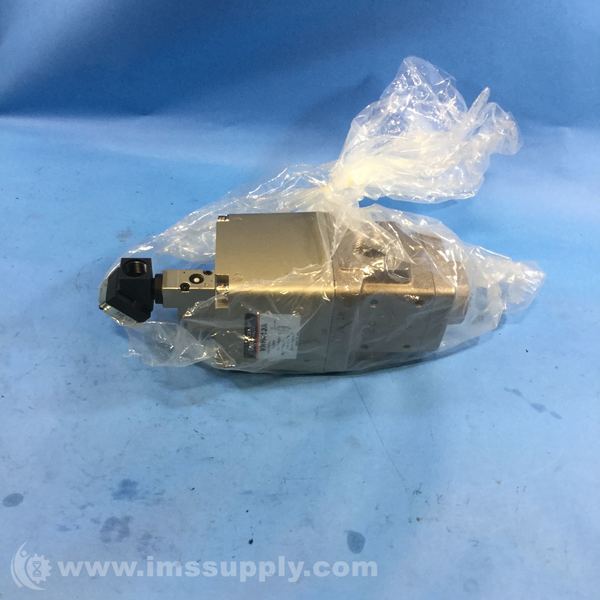

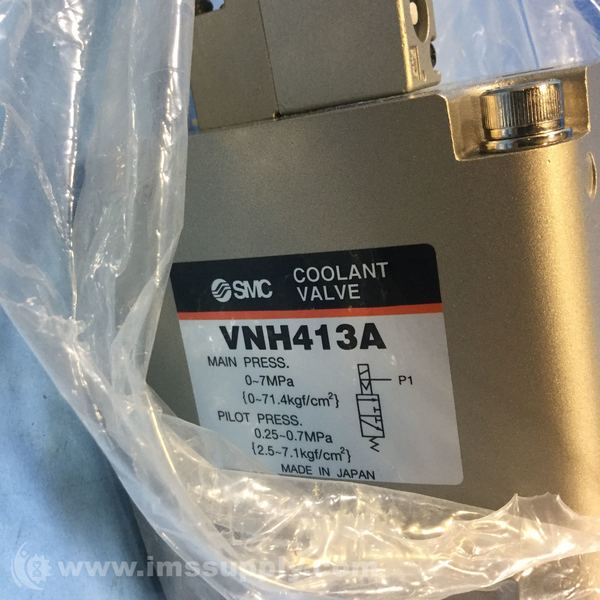

SMC VNH413A-25A-5TZ Coolant Valve
2-way media valve for coolant control. External pilot solenoid/air operated.
Specifications
- Operating fluid pressure: 0 to 7.0 MPa
- Fluid (Main piping): Coolant
- Operation: External pilot solenoid/Air operated
- Operating fluid temperature: -5 to 60C (NBR seal), -5 to 99C (FKM seal)
- Pilot air: 0.25 to 0.7 MPa
- Ambient temperature: -5 to 50C
- Max. operating frequency: 20 times/min
- Mounting position: Vertical upwards
- Port size: 1/4
- Orifice diameter (mm): 8.2
- Flow characteristics Av x 10-6m2: 58
- Pilot port size: 1
- Mass (kg): 8.83 kg (19.47942 lb)
- Face-to-face dimension (mm): 115
- Proof pressure: 10.5 MPa
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
