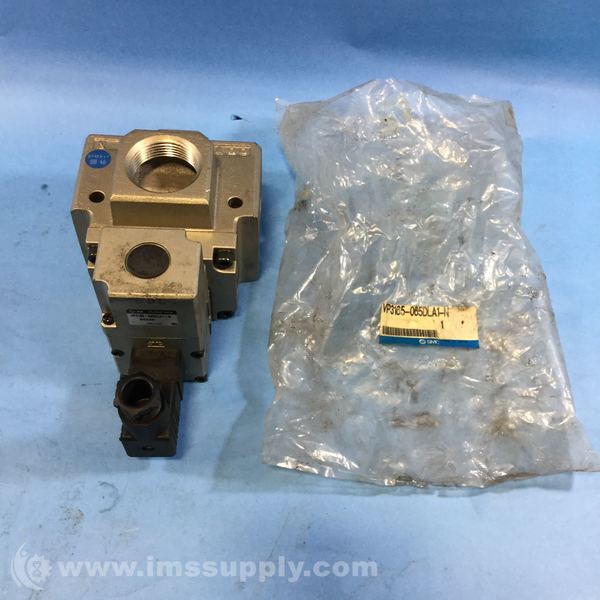

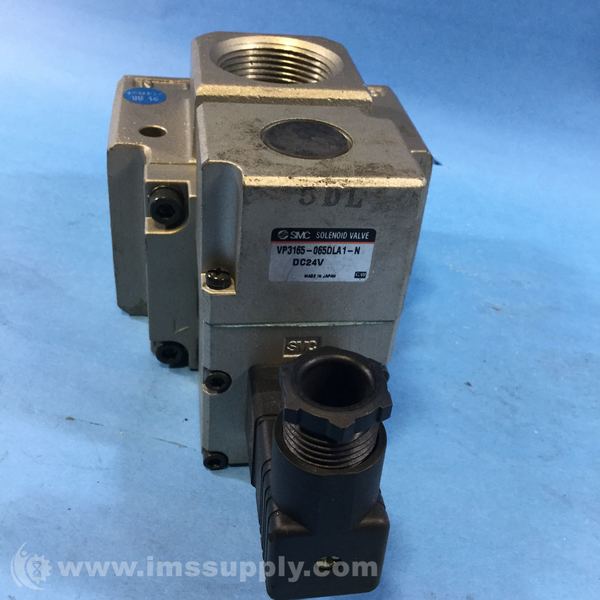

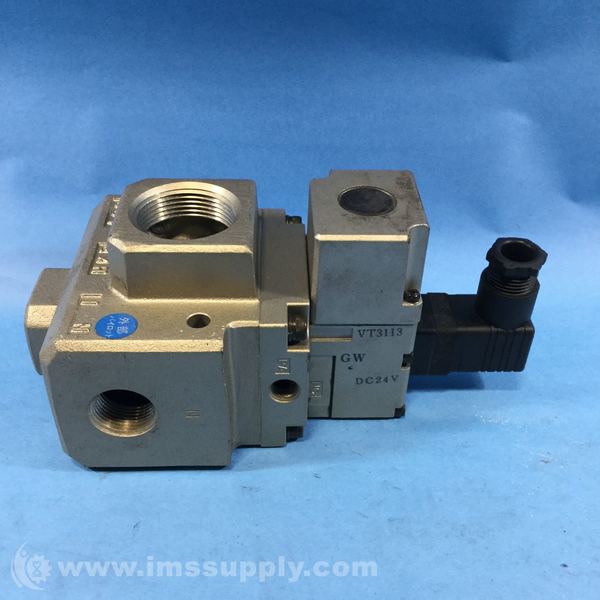

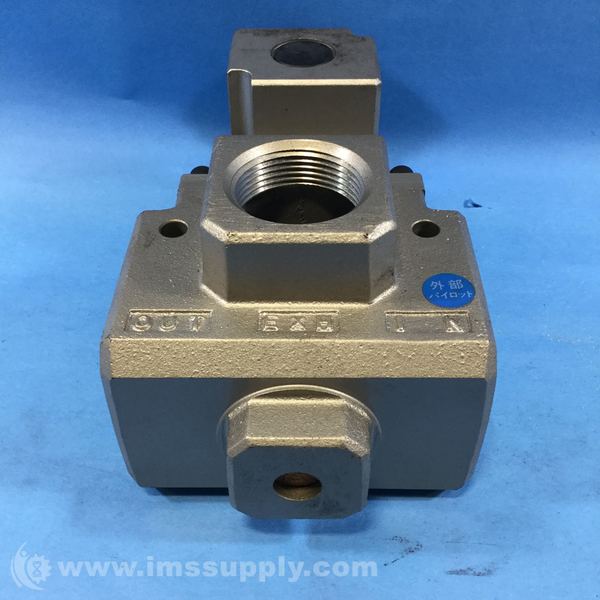

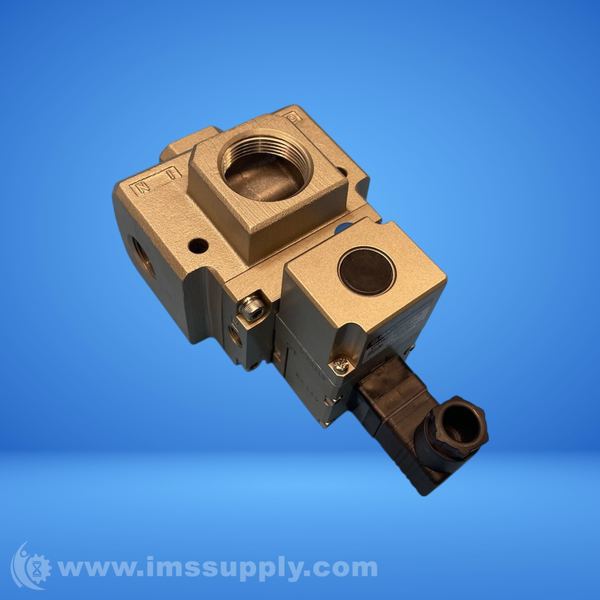

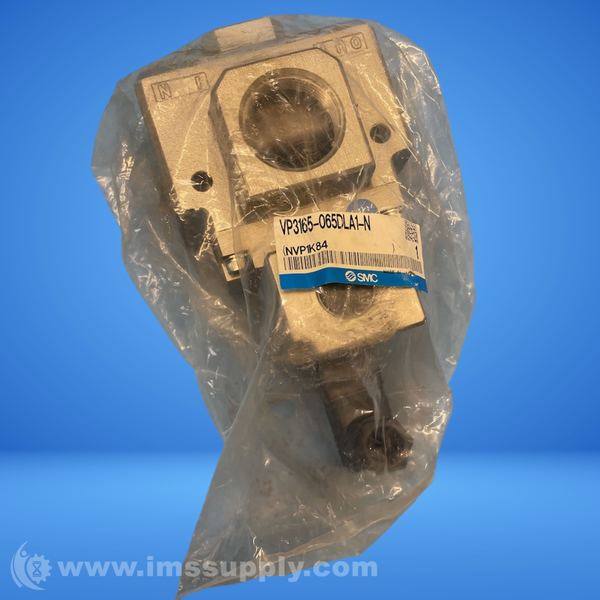

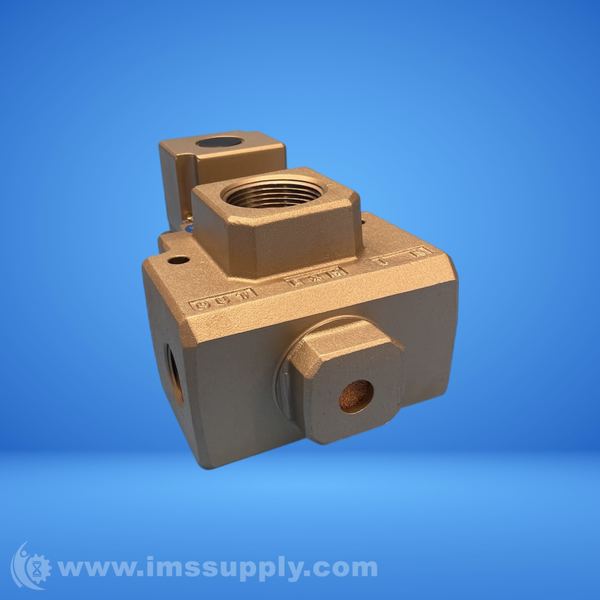

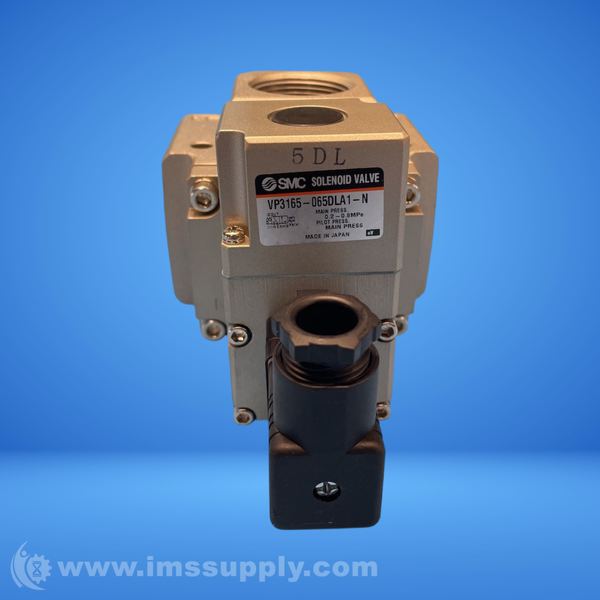

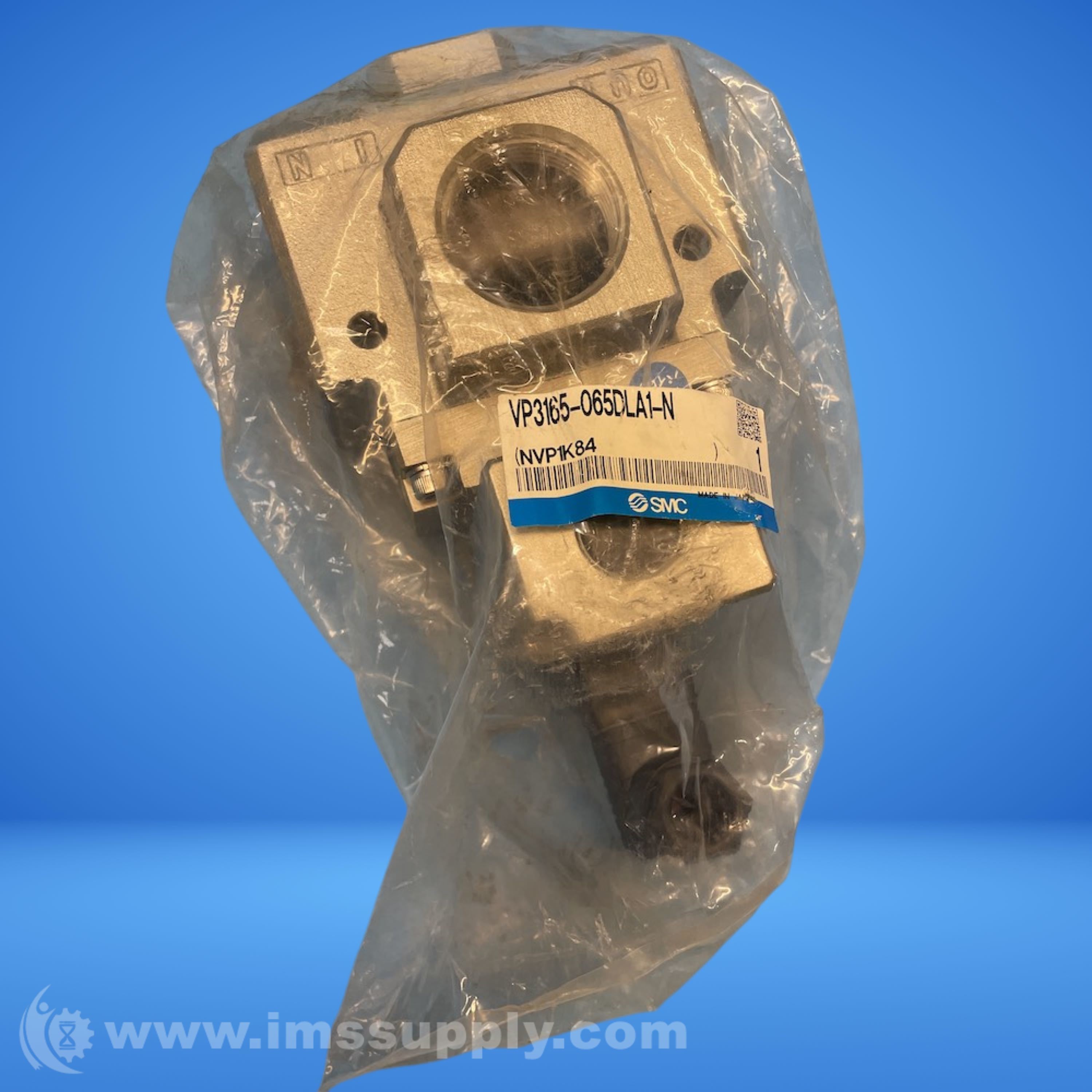

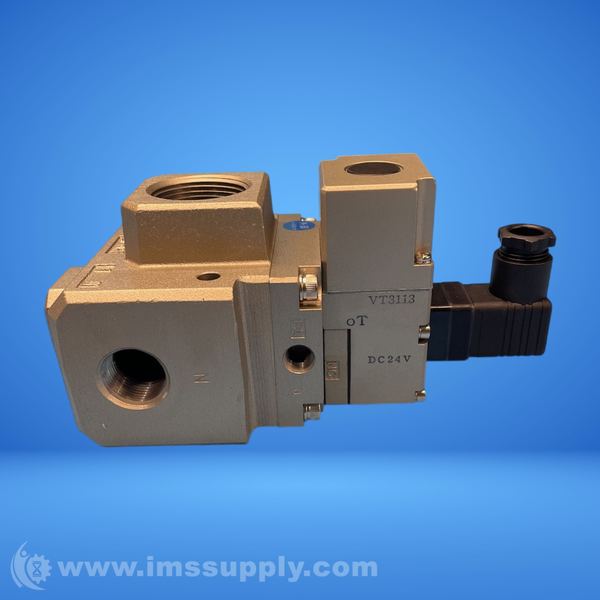

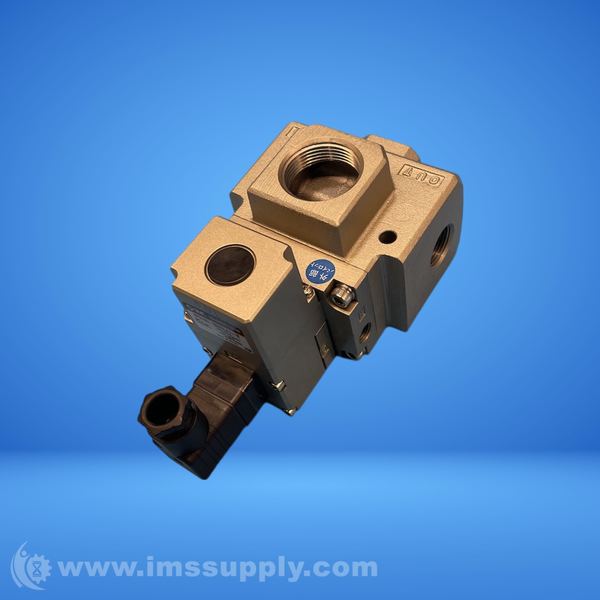

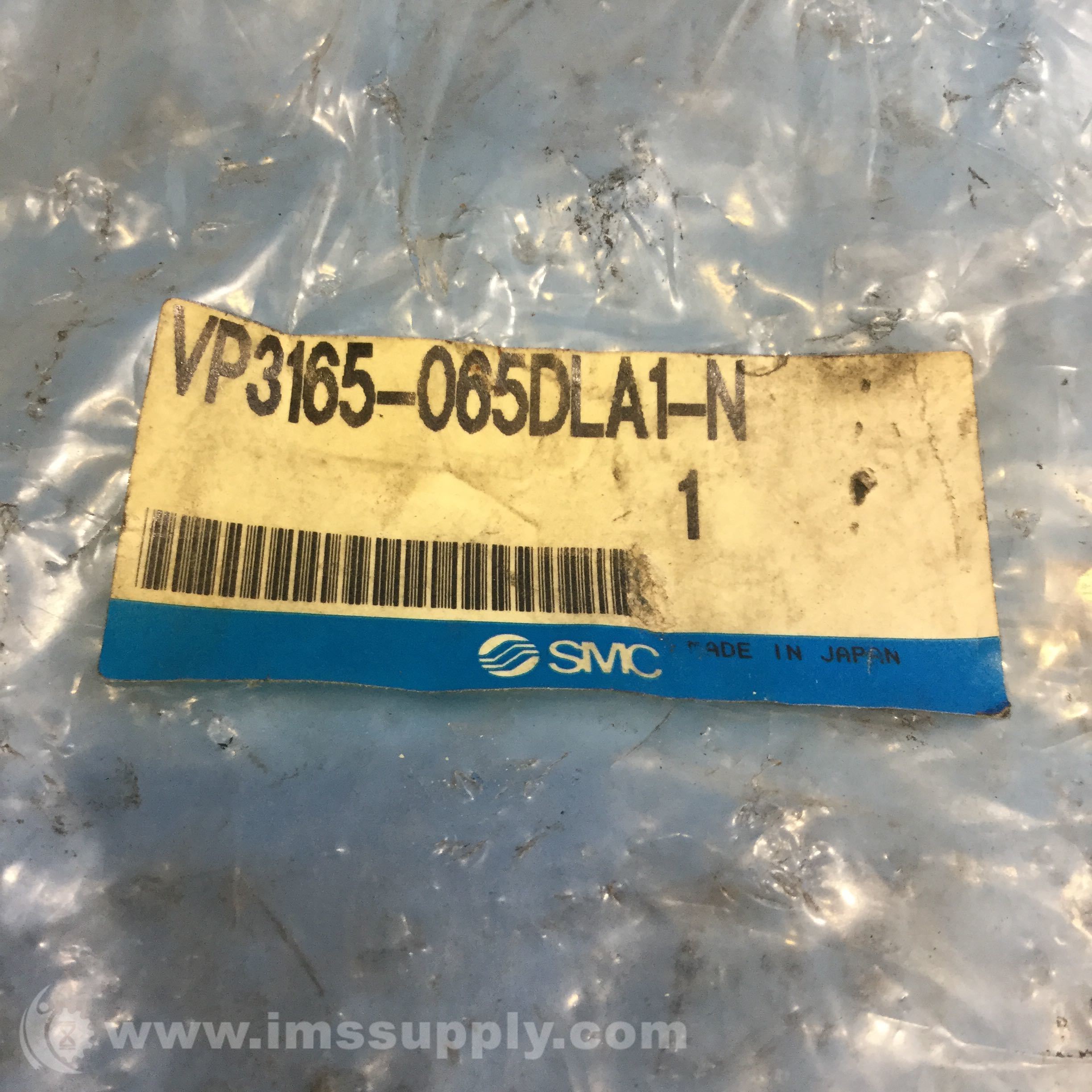

SMC VP3165-065DLA1-N 3 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VP3165-065DLA1-N
IMS Product Code: 1798783
Packaging: Sold Individually
Description:
SMC VP3165-065DLA1-N 3 Port Solenoid Valve
3 port solenoid valve with internal pilot type, body ported, single solenoid, 24V DC supply voltage, DIN terminal electrical entry.
Specifications
- Piping Type: Body Ported (Side)
- Number Of Ports: 3
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 230 (1 to 2 (IN to OUT)) mm, 280 (2 to 3 (OUT to EXH)) mm
- Operating Temperature Range: 32 to 140 F
- Maximum Operating Pressure: 101 psi
- Seal Material: Rubber
- Operating Medium: Air
- Port Sizes: 3/4 BSPT
- Port Size - Exhaust: 1-1/4 BSPT
- Standards Met: JIS
- Actuation: Piloted Solenoid
- Body Material: Aluminum Alloy
- Overall Height: 219 mm
- Overall Length: 101 mm
- Overall Width: 113 mm
- Response Time: 40 ms
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Power Consumption: 12 W
- Valve Function: Poppet
- Coil Specifications: Standard
- Pilot Type: Internal Pilot
- Pressure: Standard (0.7 Mpa)
- Series: VP300-700
