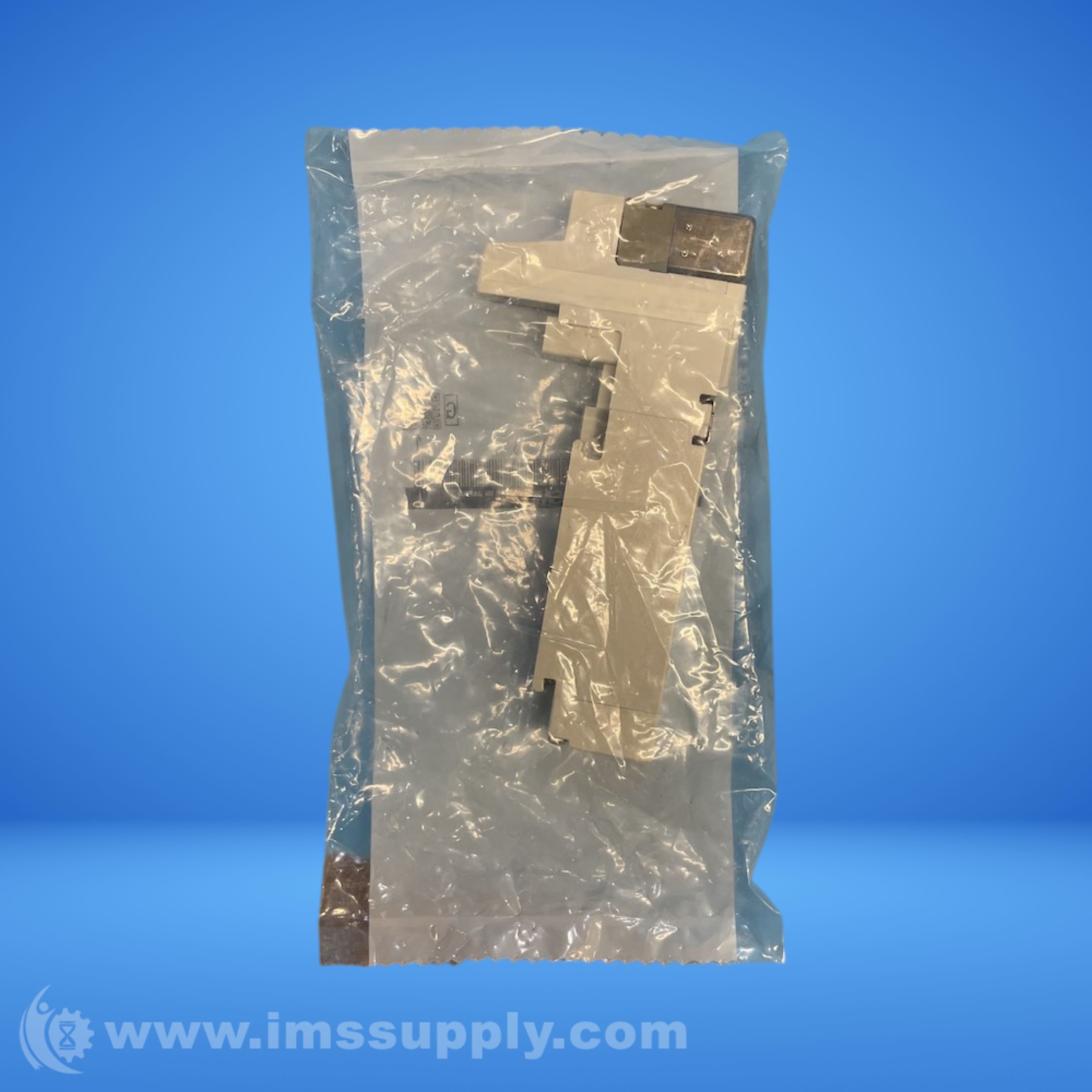

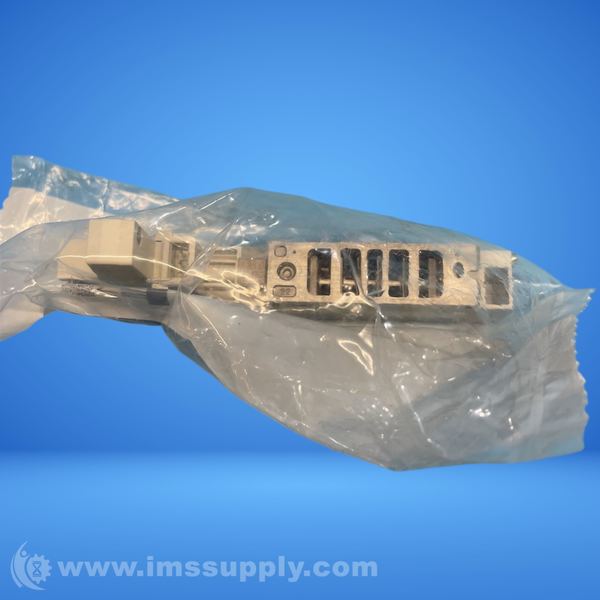

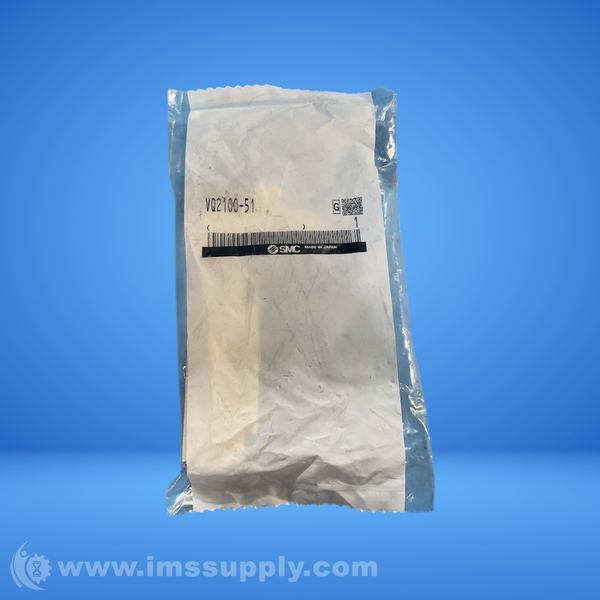

SMC VQ2100-51 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ2100-51
IMS Product Code: 2121275
Packaging: Sold Individually
Description:
SMC VQ2100-51 5-Port Solenoid Valve
5-Port, Plug-in, Base Mounted, VQ2000 Series Solenoid Valve
Specifications
- Type: VQ2 SOL VALVE 4 WAY
- Size Rating: NO SIZE RATING
- Weight: 0.23166 lb
- Piping Type: Base Mounted
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Flow Coefficient Cv Flow Factor Kv: 0.46 (P to A/B) Cv, 0.6 (A/B to R1/R2) Cv
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1981
- Actuation: Piloted Solenoid
- Body Material: Zinc
- Response Time: 22 ms
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Sonic Conductance (C): 2.6 dm³/(s.bar)
- Valve Function: Spool
- Series: VQ
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 26 minutes.
