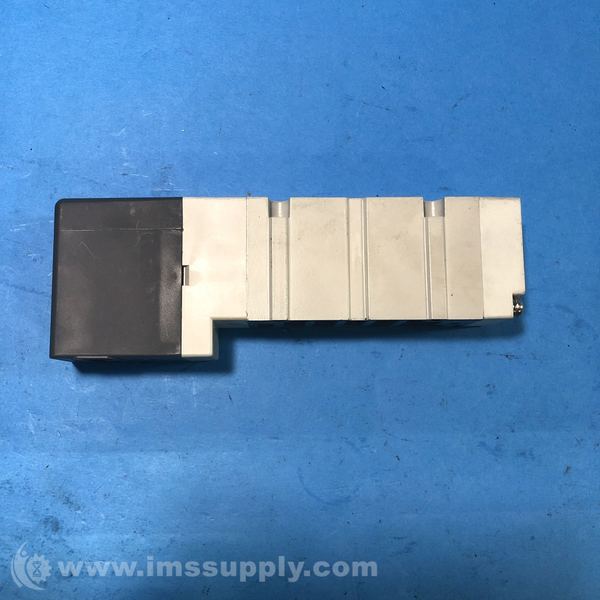

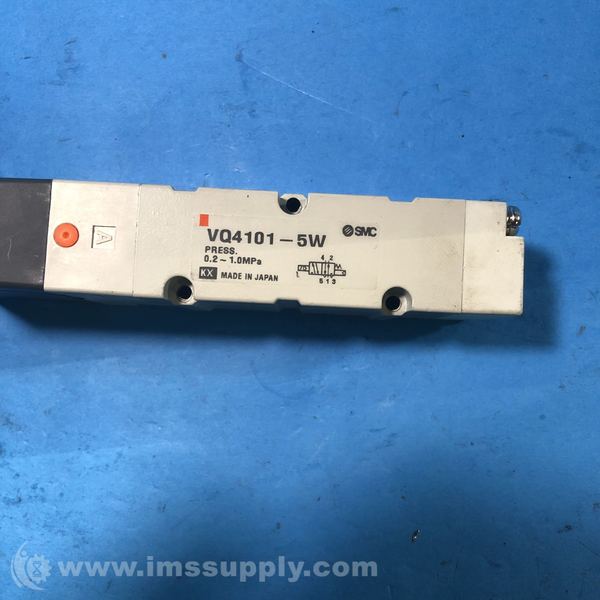

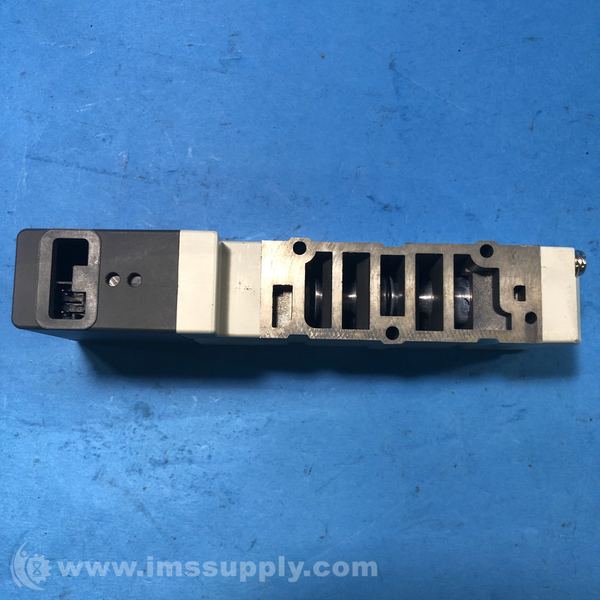

SMC VQ4101-5W SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ4101-5W
IMS Product Code: 1446066
Packaging: Sold Individually
Description:
SMC VQ4101-5W Solenoid Valve
5-port, 2-position, single solenoid valve with base mount configuration. Operates on 24V DC with piloted solenoid actuation.
Specifications
- Series: VQ4000
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Flow Coefficient Cv Flow Factor Kv: 2 (A/B to EA/EB) Cv, 2.1 (P to A/B) Cv
- Flow Direction: 4-Way
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 101 psi
- Number Of Solenoids: Single
- Operating Medium: Air, Inert Gas
- Operating Temperature Range: 14 to 122 degrees F
- Overall Height: 79 mm
- Overall Length: 158 mm
- Overall Width: 48 mm
- Piping Type: Base Mounted
- Response Time: 25 ms
- Seal Material: Rubber
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Solenoid Supply Voltage: 24 V dc
- Standards Met: JIS B 8375-1981
- Subplate Port Size: 3/8 BSPT
- Valve Function: Spool
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached: One SMC VQ4301-5W Solenoid Valve, base and fittings.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
