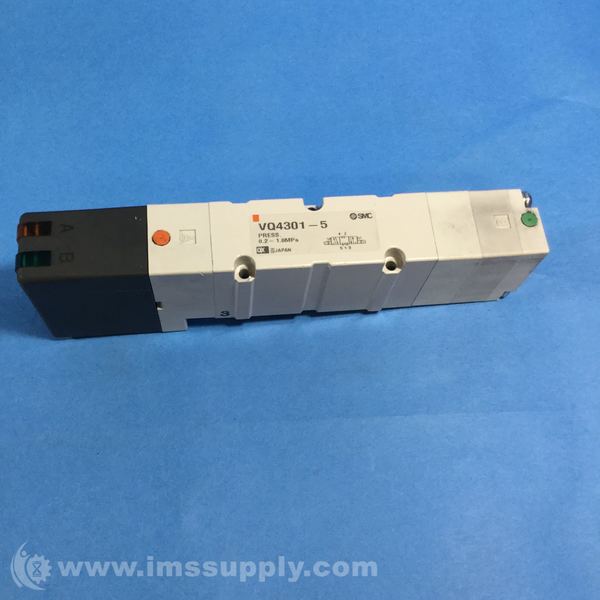

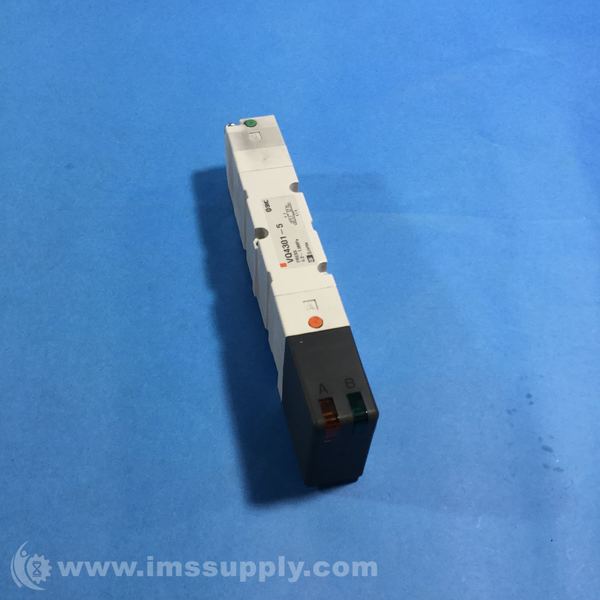

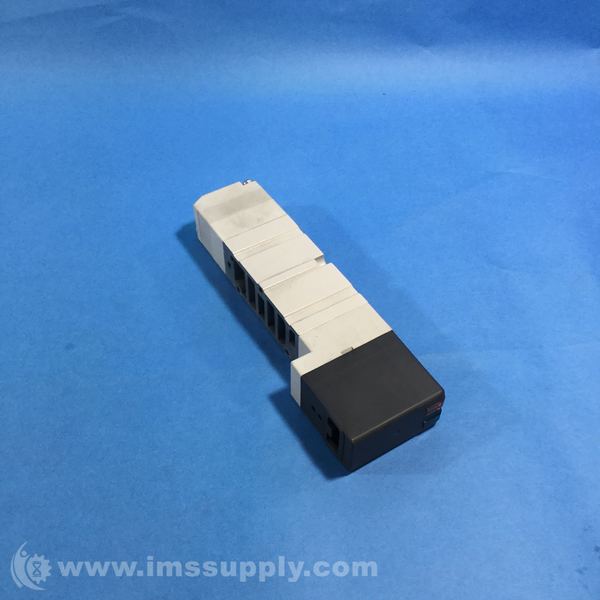

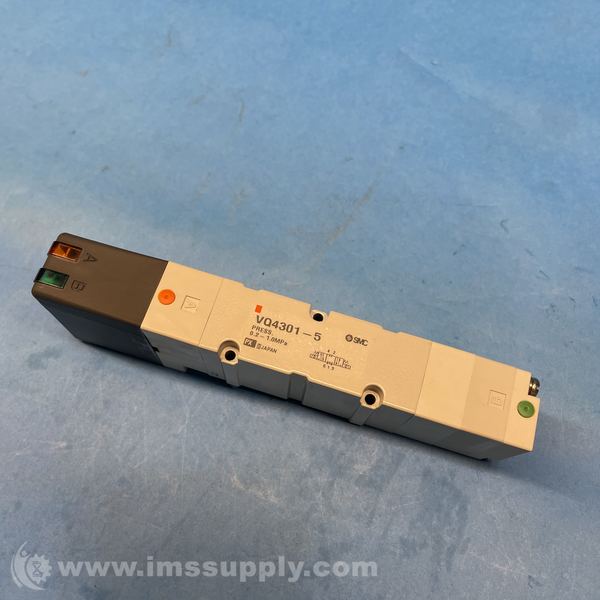

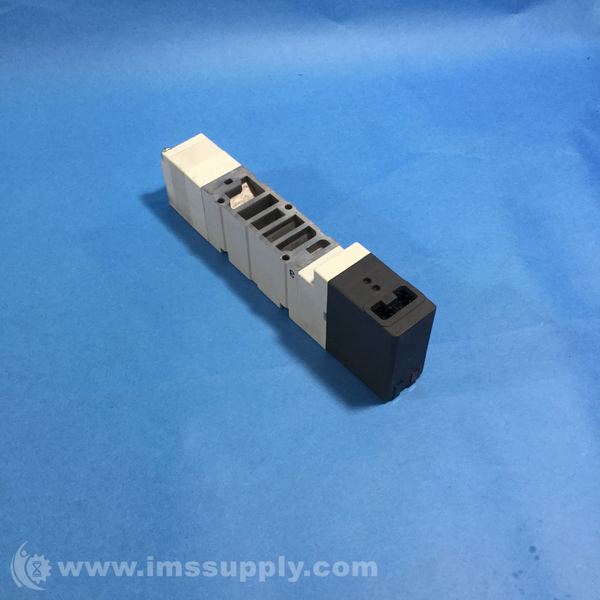

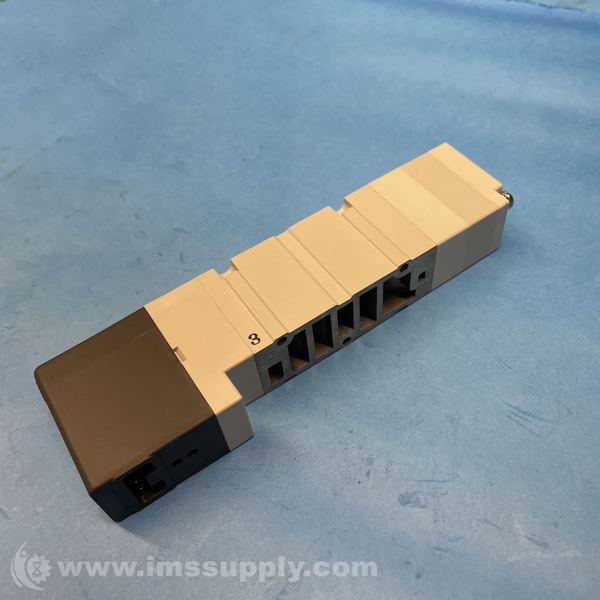

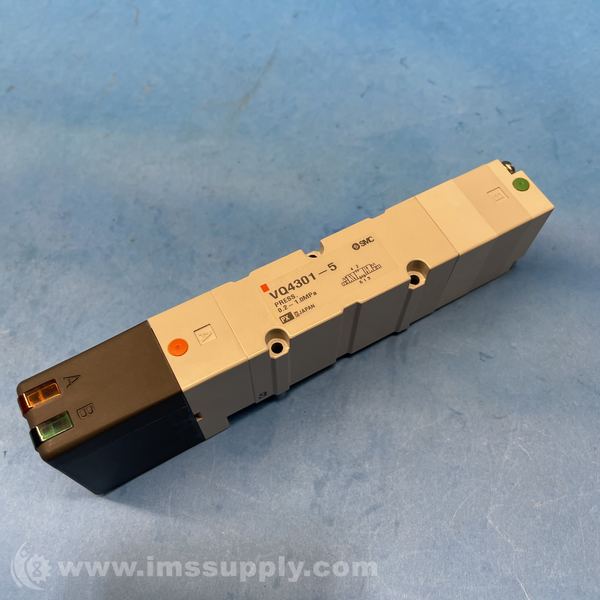

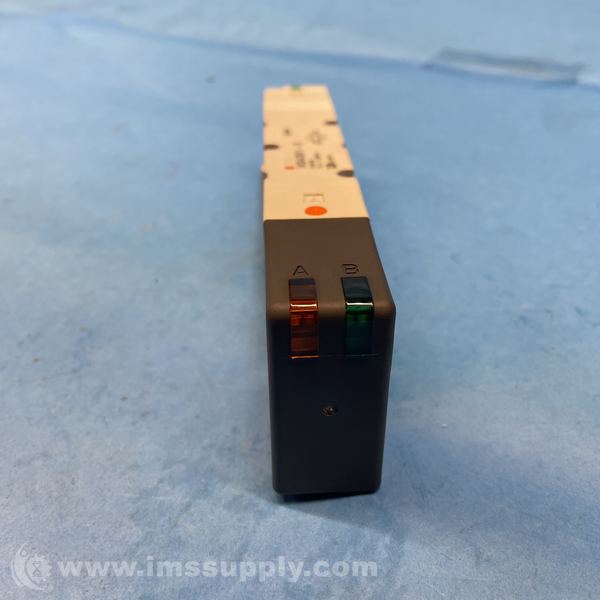

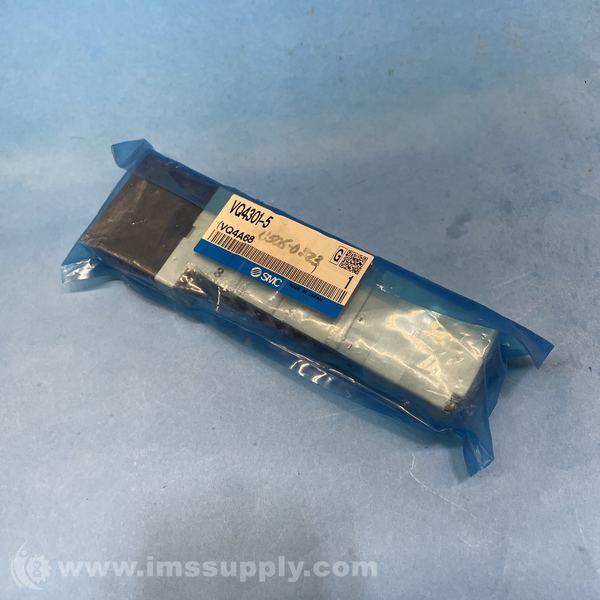

SMC VQ4301-5 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ4301-5
IMS Product Code: 1804931
Packaging: Sold Individually
Description:
SMC VQ4301-5 5-Port Solenoid Valve
Base mounted 5-port solenoid valve with double solenoid and non-locking push manual operation. Aluminum body with rubber seals.
Specifications
- Series: VQ4000
- Type: 4/5-PORT
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Flow Coefficient Cv Flow Factor Kv: 1.9 (A/B to EA/EB) Cv, 1.9 (P to A/B) Cv
- Flow Direction: 4-Way
- Manual Operation Type: Non-Locking Push
- Maximum Operating Pressure: 101 psi
- Number Of Solenoids: Double
- Operating Medium: Air, Inert Gas
- Operating Temperature Range: 14 to 122 degrees F
- Overall Height: 79 mm
- Overall Length: 181 mm
- Overall Width: 48 mm
- Piping Type: Base Mounted
- Response Time: 50 ms
- Seal Material: Rubber
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Solenoid Supply Voltage: 24 V dc
- Standards Met: JIS B 8375-1981
- Subplate Port Size: 3/8 BSPT
- Valve Function: Spool
- Fluid: air/inert gas
- Operating pressure range: 0.15 - 1.0MPa
- Effective area mm 2 (Cv): 2 position metal seal 36.0 (2.0); 2 position rubber seal 39.6 (2.2) 3 position metal seal 19.8 - 36.0 (1.1 - 2.0); 3 position rubber seal 21.6 - 39.6 (1.2 - 2.2)
- Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
- Response time (ms) standard 1W: metal seal 12 or less to 55 or less; rubber seal 15 or less to 62 or less
- Ambient & fluid temperature: metal seal -10 to 50°C; rubber seal -5 to 50°C
