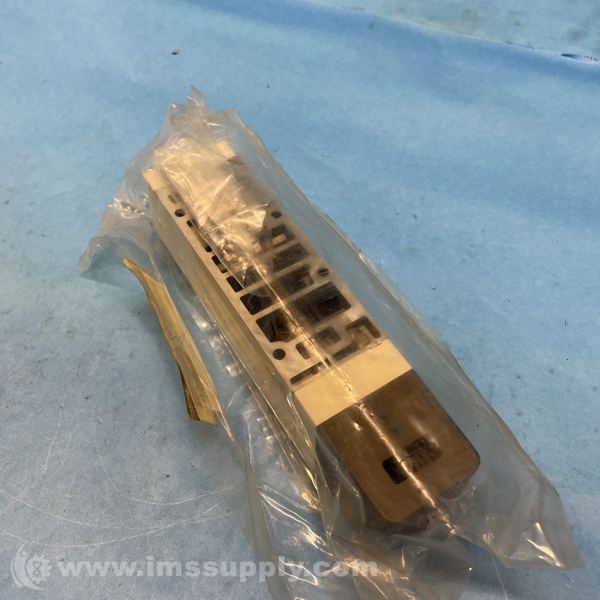

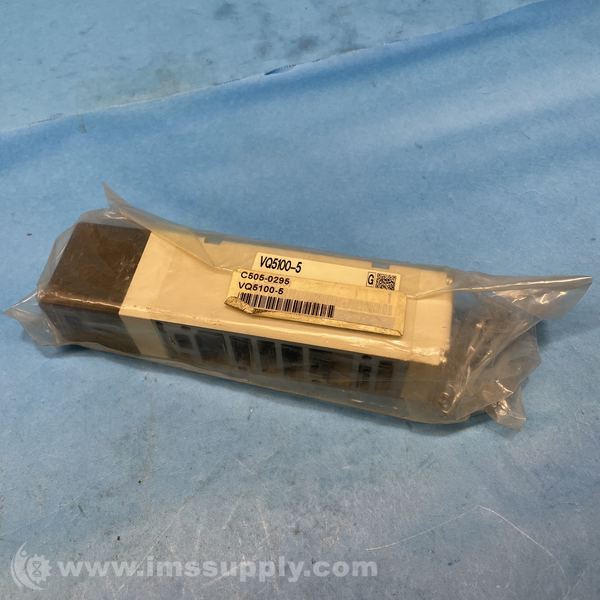

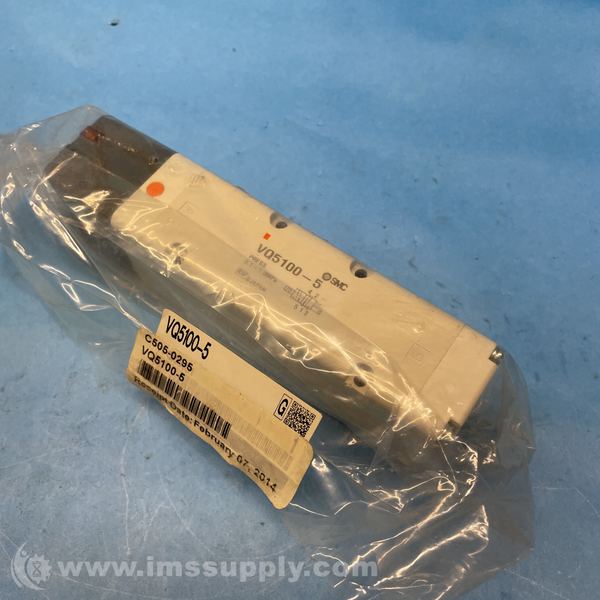

SMC VQ5100-5 PILOTED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ5100-5
IMS Product Code: 2135255
Packaging: Sold Individually
Description:
SMC VQ5100-5 Piloted Solenoid Valve
A 5-port, single solenoid, plug-in DC valve with metal seal and aluminum body. Operates at 0.1-1.0 MPa with 24V DC supply.
Specifications
- Series: VQ5000
- Type: Valve
- Port Gender: Female
- Flow Coefficient Cv Flow Factor Kv: 2.9 (P to A, B) Cv, 3.4 (A, B to EA, EB) Cv
- Solenoid Supply Voltage: 24 V dc
- Seal Material: Metal
- Body Material: Aluminum
- Standards Met: JIS
- Operating Pressure Range: +0.1 to +1 MPa
- Operating Temperature Range: -5 to +50 degrees C
- Response Time: =35 ms
- Number Of Solenoids: Single
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Coil Insulation: Class B
- Actuation: Piloted Solenoid
- Maximum Operating Pressure: 1 MPa
- Minimum Operating Pressure: 0.1 MPa
- Overall Length: 195 mm
- Overall Width: 18 mm
- Overall Height: 98 mm
- Weight: 0.57 kgs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 2 hours and 27 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 2 hours and 27 minutes.
