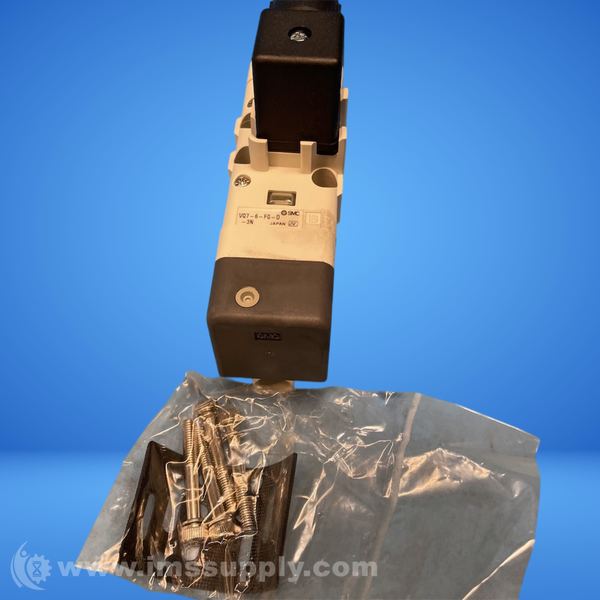

SMC VQ7-6-FG-D-3N 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ7-6-FG-D-3N
IMS Product Code: 2103633
Packaging: Sold Individually
Description:
SMC VQ7-6-FG-D-3N 5-Port Solenoid Valve
SMC VQ7-6-FG-D-3N solenoid valve. ISO 5599/I Standard Solenoid Size 1, VQ7-6 Series, 5-port, 2-position double solenoid valve with DIN terminal block electrical entry.
Specifications
- Piping Type: Base Mounted without Subplate
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal Block (With Connector)
- Flow Coefficient Cv Flow Factor Kv: 0.9 (P to A/B) Cv, 1.1 (A/B to EA/EB) Cv
- Manual Operation Type: Push Type (Tool Required)
- Operating Temperature Range: 14 to 140 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1981, JIS
- Actuation: 2 Position Double
- Overall Height: 137.5 mm
- Overall Length: 145 mm
- Overall Width: 62 mm
- Response Time: 12 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Sonic Conductance (C): 4.1 (P to A/B) dm³/(s.bar), 5.2 (A/B to EA/EB) dm³/(s.bar)
- Series: VQ7
- Weight: 1.28538 lb
- Country of Origin: JP
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
