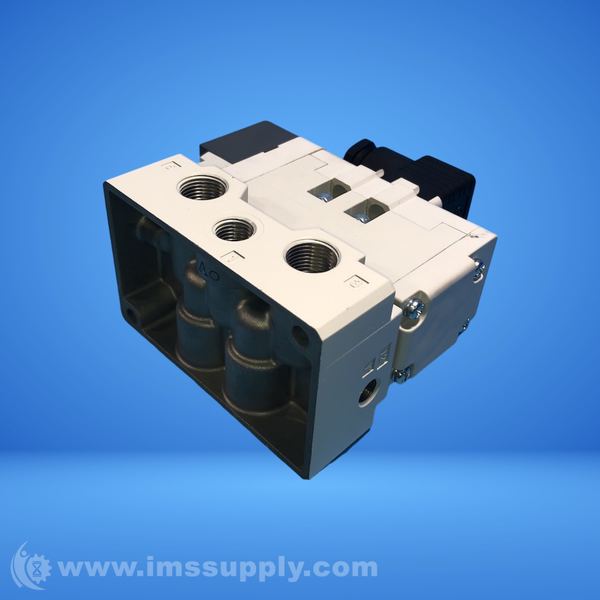

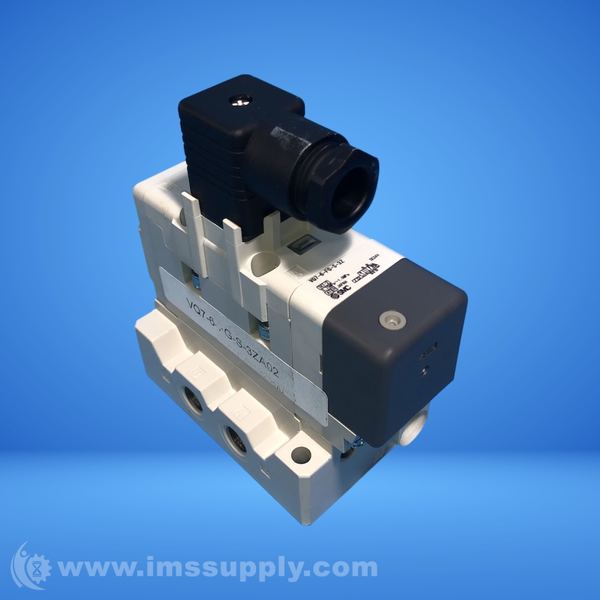

SMC VQ7-6-FG-S-3Z SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ7-6-FG-S-3Z
IMS Product Code: 1867730
Packaging: Sold Individually
Description:
SMC VQ7-6-FG-S-3Z Solenoid Valve
ISO Standard Solenoid Valve - 4-Way, Piloted Solenoid, 24 V dc, Single Solenoid, DIN Terminal, Without Subplate
Specifications
- Series: VQ7
- Type: Solenoid Valve
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 0.9 (P to A/B) Cv, 1.1 (A/B to EA/EB) Cv
- Manual Operation Type: Push Type (Tool Required)
- Operating Temperature Range: 14 to 140 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Port Size: Without Subplate
- Standards Met: JIS B 8375-1981, JIS
- Actuation: Piloted Solenoid
- Overall Height: 137.5 mm
- Overall Length: 120.5 mm
- Overall Width: 62 mm
- Response Time: 20 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Sonic Conductance (C): 4.1 (P to A/B) dm�/(s.bar), 5.2 (A/B to EA/EB) dm�/(s.bar)
- Thread Standard: w/o Sub-plate
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 31 minutes.
Used (Special):
Missing Solenoid Coil Connector
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 31 minutes.
