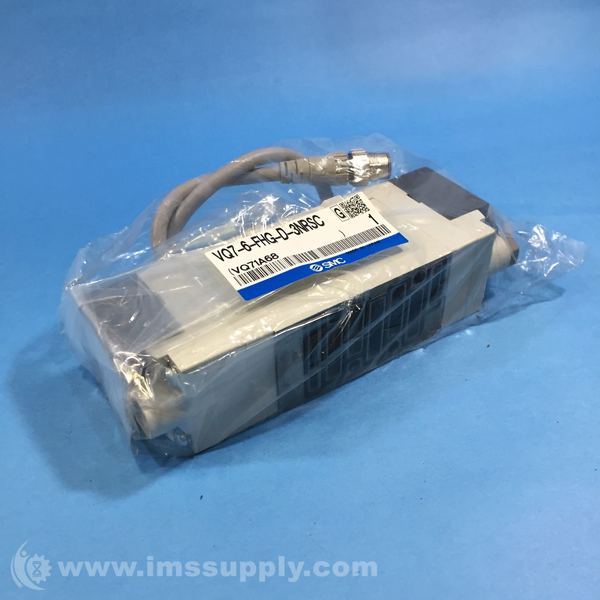

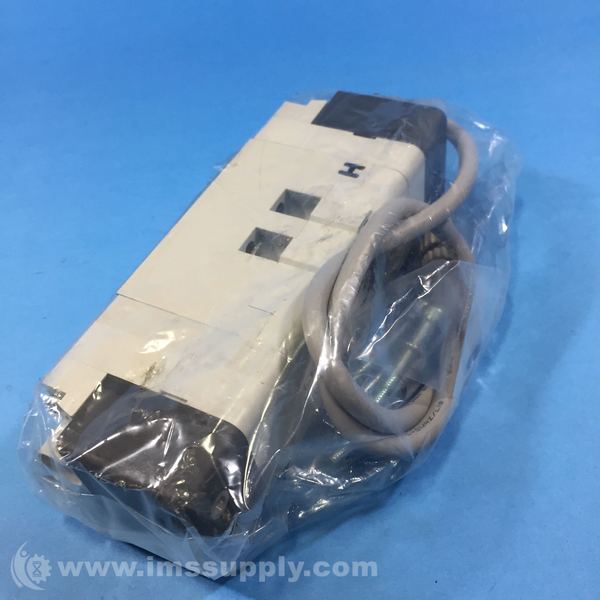

SMC VQ7-6-FHG-D-3NRSC SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ7-6-FHG-D-3NRSC
IMS Product Code: 1861126
Packaging: Sold Individually
Description:
SMC VQ7-6-FHG-D-3NRSC Solenoid Valve
24V DC double solenoid valve with closed-center 3-position FHG passage, Rc thread, rubber seal, and indicator light. Pre-wired SC connector for easy setup.
Specifications
- Series: VQ7
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Pre-Wired
- Flow Coefficient Cv Flow Factor Kv: 1.1 (P to A/B) Cv, 1.3 (A/B to EA/EB) Cv
- Manual Operation Type: Push Type (Tool Required)
- Operating Temperature Range: 23 to 140 degrees F
- Maximum Operating Pressure: 145 psi
- Seal Material: Rubber
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1981, JIS
- Actuation: Piloted Solenoid
- Overall Height: 93 mm
- Overall Length: 155 mm
- Overall Width: 62 mm
- Response Time: 45 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Sonic Conductance (C): 5 (P to A/B) dm³/(s.bar), 5.6 (A/B to EA/EB) dm³/(s.bar)
- Weight: 0.48 kg
