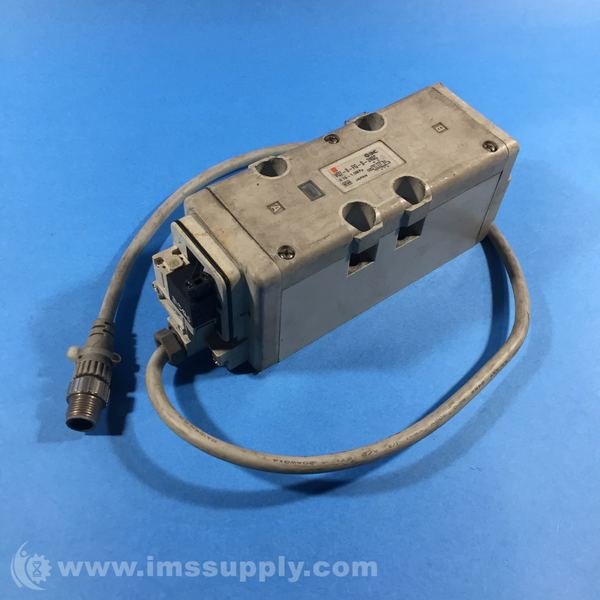

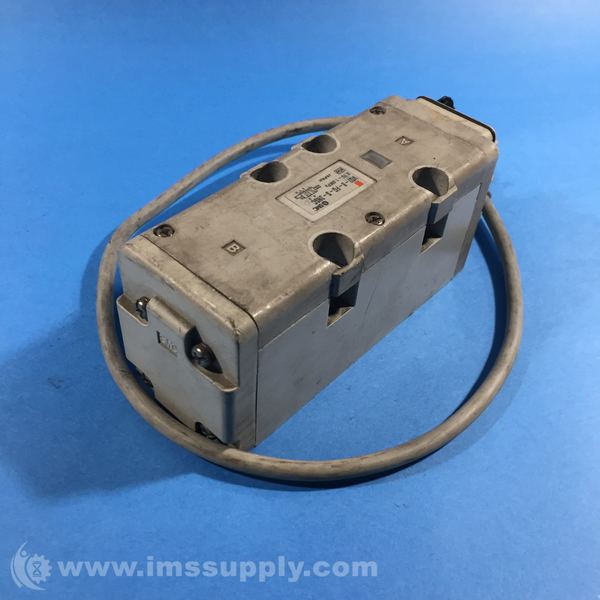

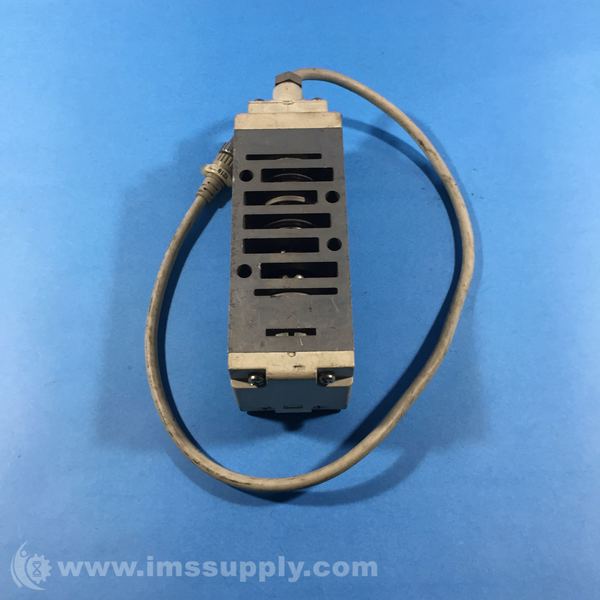

SMC VQ7-8-FG-S-3NSC ISO STANDARD SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQ7-8-FG-S-3NSC
IMS Product Code: 1814410
Packaging: Sold Individually
Description:
SMC VQ7-8-FG-S-3NSC ISO Standard Solenoid Valve
ISO standard solenoid valve, size 2, single solenoid, 5-port, 2-position, piloted solenoid actuation, metal seal, pre-wired electrical entry, 24V DC supply voltage
Specifications
- Series: VQ7
- Number Of Ports: 5
- Number Of Positions: 2
- Number of Solenoids: Single
- Solenoid Supply Voltage: 24 V DC
- Solenoid Electrical Entry: Pre-Wired
- Flow Coefficient Cv Flow Factor Kv: 2.4 (P to A/B) Cv, 3 (A/B to EA/EB) Cv
- Manual Operation Type: Push Type (Tool Required)
- Operating Temperature Range: 14 to 140 degrees F
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Overall Height: 108.5 mm
- Overall Length: 154 mm
- Overall Width: 75 mm
- Response Time: 40 ms
- Solenoid Allowable Voltage Fluct: -10 to +10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Sonic Conductance (C): 10 (P to A/B) dm³/(s.bar), 12 (A/B to EA/EB) dm³/(s.bar)
- Connector: SC (Pre-wired Connector)
- Option: N (Indicator Light)
- Seal: Metal Seal
- Solenoid: S (Single)
- Symbol: FG (2-Position)
- Thread: Rc
- Voltage: 3 (24V DC)
- Fluid: air/inert gas
- Operating pressure: 0.15 to 1.0MPa
- Enclosure: IP65 (dusttight, splash proof)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
