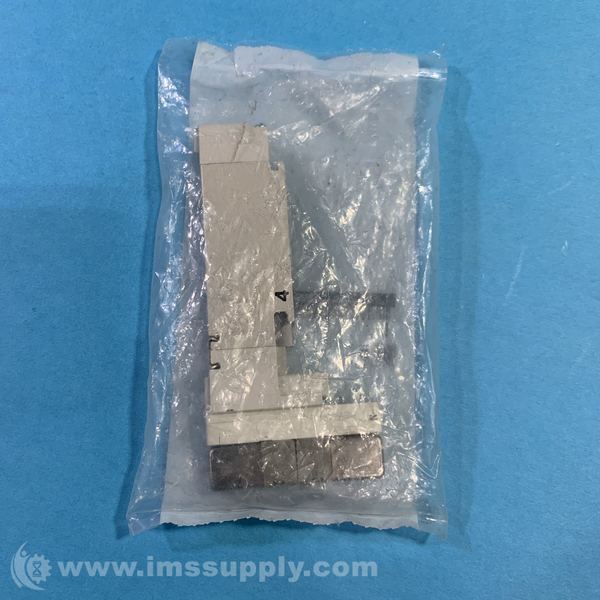

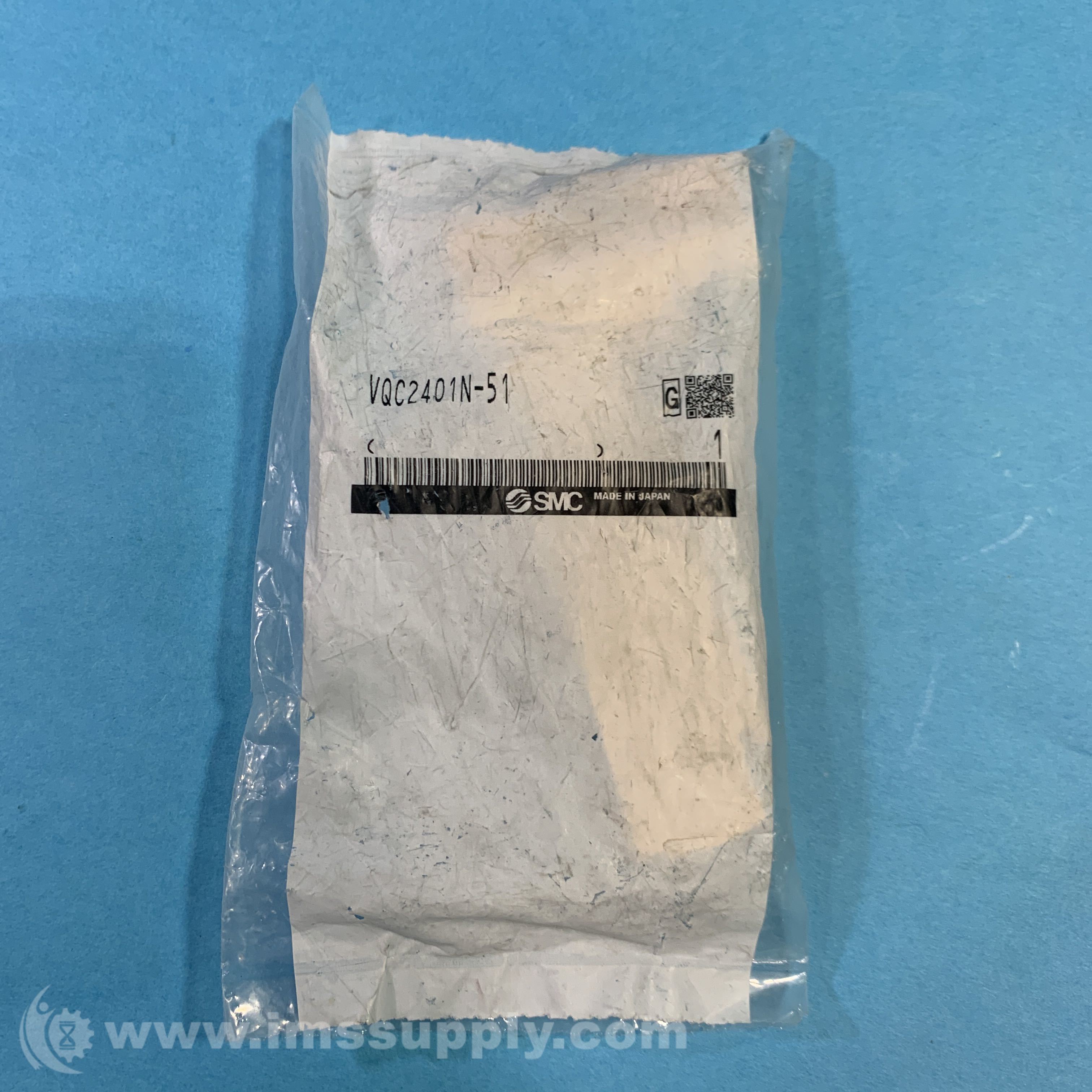

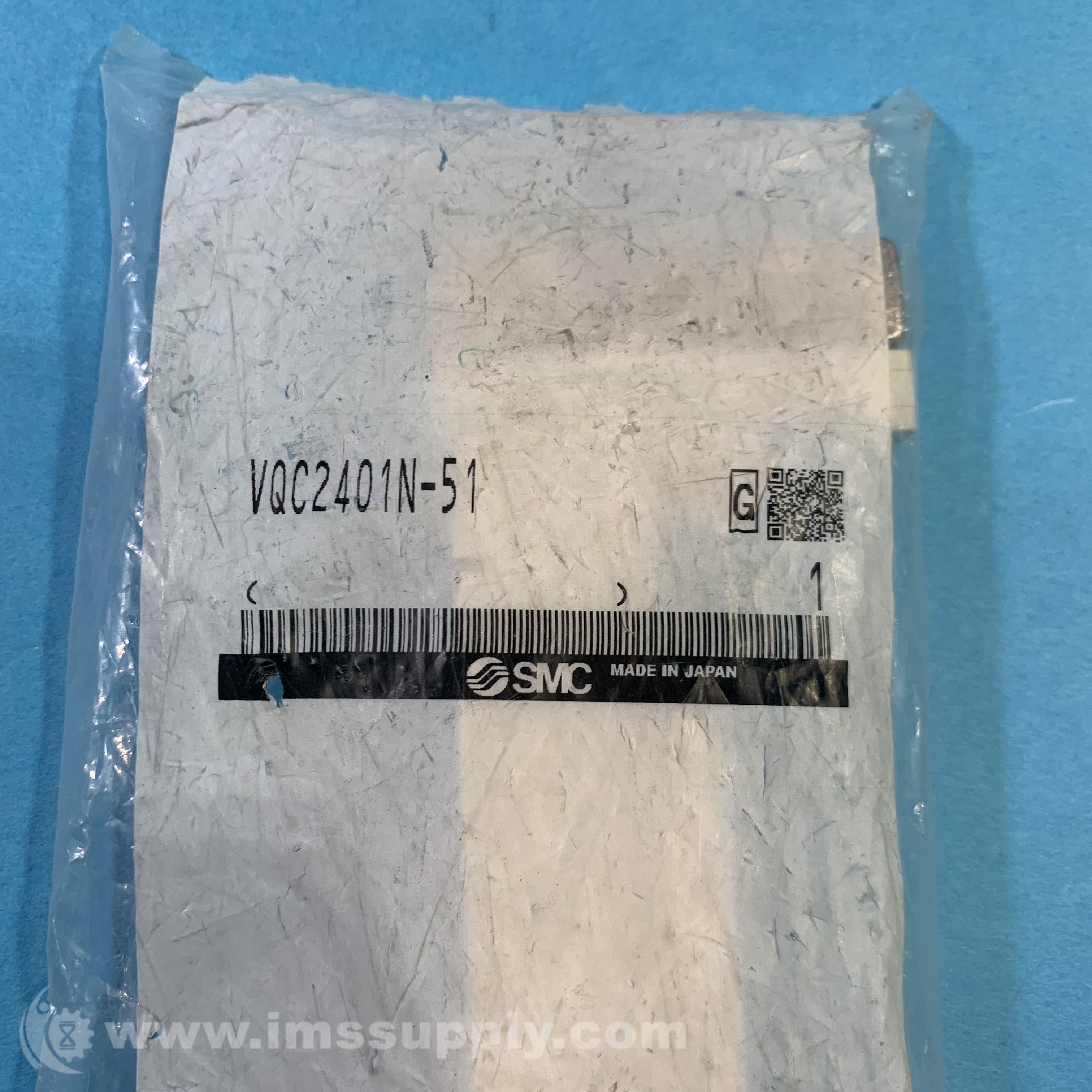

SMC VQC2401N-51 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQC2401N-51
IMS Product Code: 1903252
Packaging: Sold Individually
Description:
SMC VQC2401N-51 5-Port Solenoid Valve
5-port solenoid valve, base mounted, double solenoid, plug-in electrical entry, 24V DC, 5-way/3-position configuration.
Specifications
- Series: VQC2000
- Type: 5-Port Solenoid Valve
- Actuation: Piloted Solenoid
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: Plug-in
- Piping Type: Base Mounted
- Flow Coefficient Cv Flow Factor Kv: 0.49 (P to A, B) Cv, 0.8 (A, B to R1, R2) Cv
- Manual Operation Type: Non-Locking Push (Tool Required)
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 145 psi
- Seal Material: Rubber
- Operating Medium: Air
- Flow Direction: 4-Way
- Body Material: Zinc
- Response Time: =44 ms
- Solenoid Allowable Voltage Fluct: ±10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 0.4 W
- Solenoid Supply Current: 17 mA
- Standards Met: JIS B 8375-1981
- Actuator Type: 3-Position
- Flow Rate: 0.80 Cv
- Media: Air
- Pressure Rating: 0.2 to 0.7 MPa
- Temperature Rating: -10 to 50 degrees C
- Body Style: Base-Mounted
- Pilot Type: Internal Pilot
- Number of Positions: Three-Position
- Number of Ways: Five-Way
- Operating Pressure - Minimum: 0.2 MPa
- Lubrication: Lubrication Not Required
- Spool Material: Aluminum
- Standards: RoHS Compliant
- Valve Type: Spool
