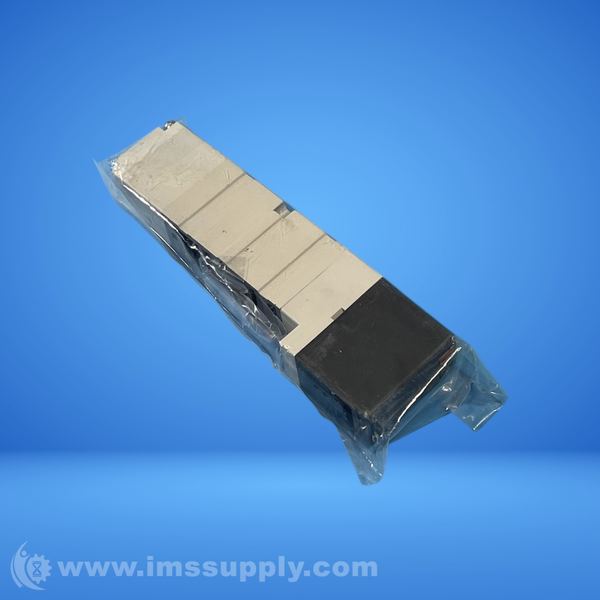

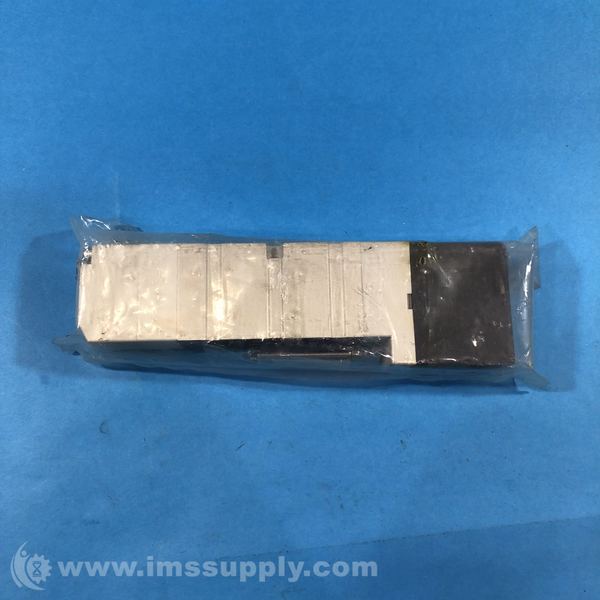

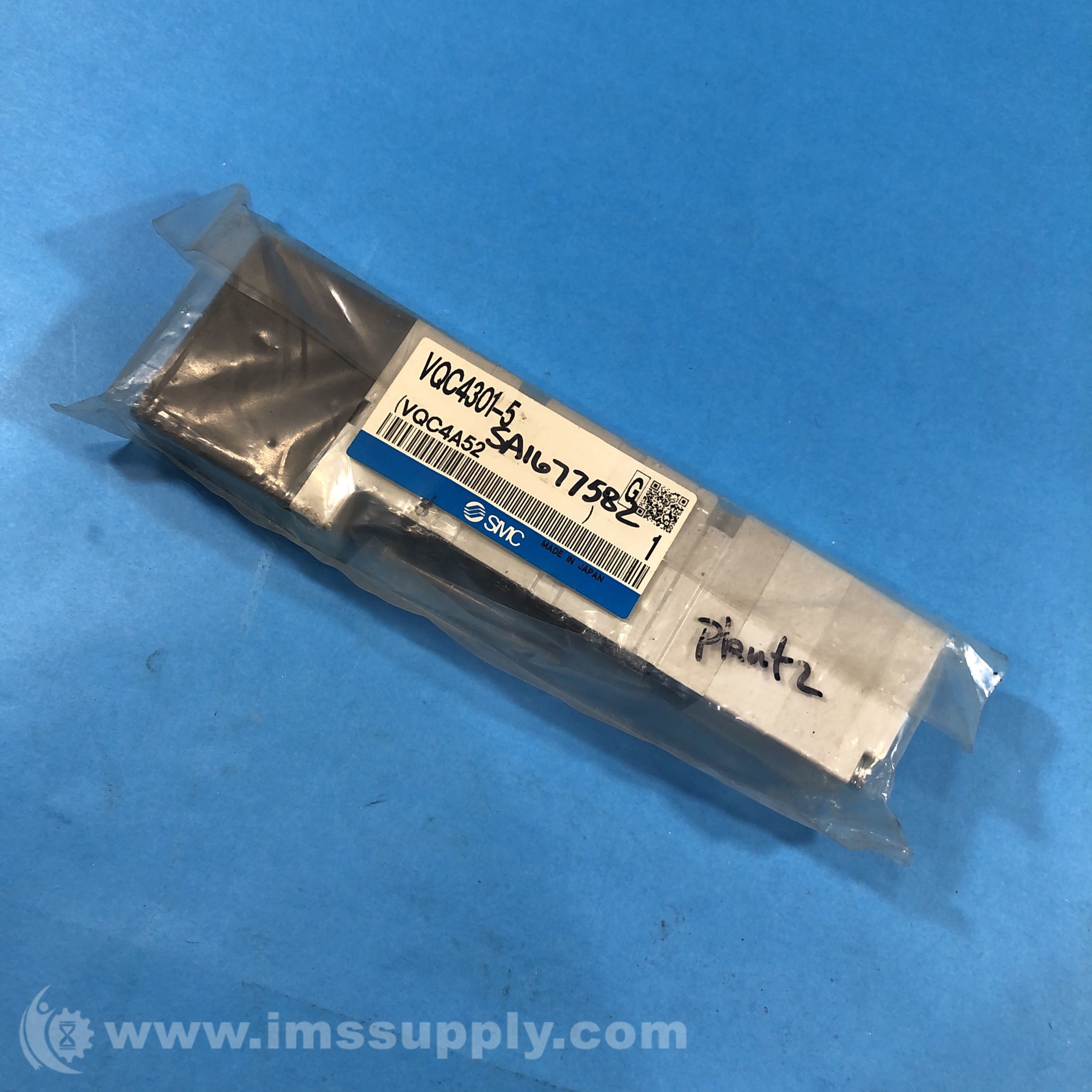

SMC VQC4301-5 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQC4301-5
IMS Product Code: 1804562
Packaging: Sold Individually
Description:
SMC VQC4301-5 5-Port Solenoid Valve
5-Port Solenoid Valve, Base Mount, Plug-In
Specifications
- Series: VQC4000
- Port: 5-PORT
- Weight: 0.27 kgs
- Actuation: Piloted Solenoid
- Flow Coefficient Cv Flow Factor Kv: 1.9 (A, B to R1, R2) Cv, 1.9 (P to A, B) Cv
- Maximum Operating Pressure: 1 Mpa
- Minimum Operating Pressure: 0.2 MPa
- Number Of Solenoids: Double
- Operating Pressure Range: +0.2 to +1 MPa
- Operating Temperature Range: -10 to +50 degrees C
- Port Gender: Female
- Response Time: <= 50 ms
- Seal Material: Rubber
- Solenoid Allowable Voltage Fluct: +/- 10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 1 W
- Solenoid Supply Current: 42 mA
- Solenoid Supply Voltage: 24 V dc
- Standards Met: JIS B 8375-1981
- Fluid: Air/Inert Gas
- Effective Area (Cv): 1.7 Metal Seal; 2.0 Rubber Seal
- Coil Rated Voltage: 24Vdc
- Enclosure: Dust Proof (Conforms To Ip67)
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached SMC parts: Two additional identical parts attached, VVQ4000-10A-1 x2, VQC4101-5 x2, ARBQ4000-N0-A-1 x2, X10PSI x2, AN500-N06 x2
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached SMC parts: VQC4400-5 x2, VQC4200-5 x2, VQC4100-5 x2, VQC4400-5 x2, VQC4300-5, VVQ4000-10A-1 x2, INA-25-59 x2 (one bent). Mounted on SMC base block.
