SMC VQZ2151-5YZ1 BASE MOUNT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQZ2151-5YZ1
IMS Product Code: 1446200
Packaging: Sold Individually
Description:

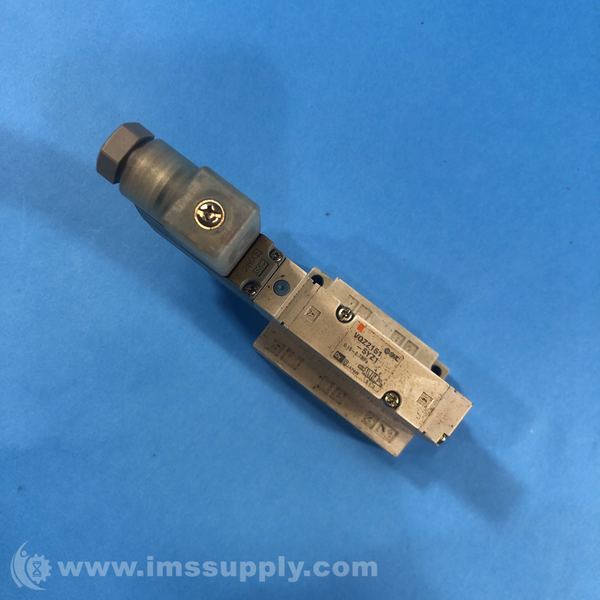

SMC VQZ2151-5YZ1 Base Mount Solenoid Valve
Base mount solenoid valve with DIN terminal and surge suppressor, rubber seal, and non-locking push style manual override.
Specifications
- Series: VQZ2000
- Weight: 0.22491 lb
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm^2 (Cv) rubber seal: 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W rubber seal: 30 or less
- Ambient and fluid temperature: -10 to 50 C
- Coil voltage: 5 (24VDC)
- Composite symbol: 1 (2 position single)
- Function: Standard (0.35W DC, AC)
- Lead Wire: YZ (DIN terminal w/light & surge suppressor)
- Manual Override: Non-locking push style
- Port Size: w/o sub-plate
- Seal type: 1 (rubber seal)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, April 6, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
