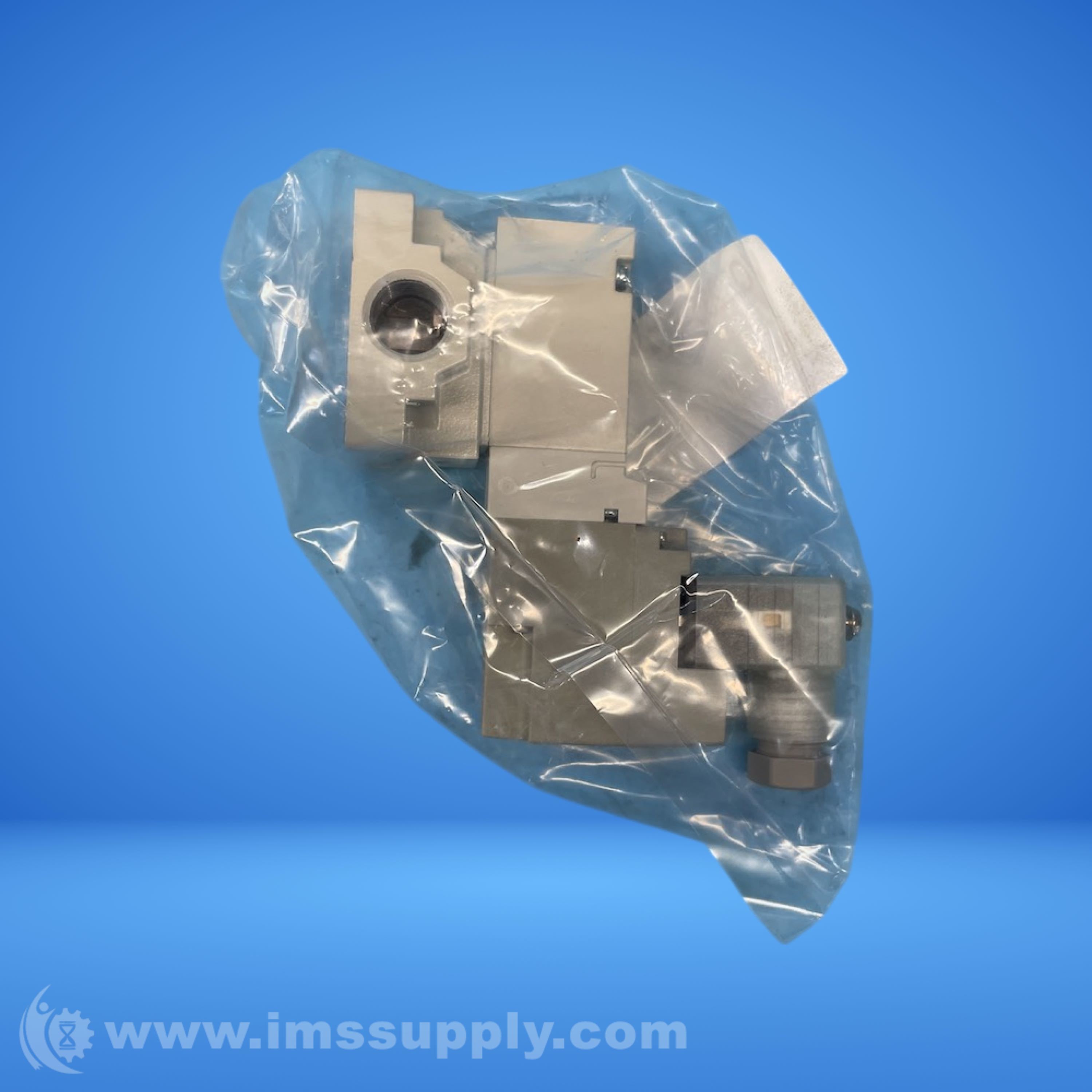

SMC VQZ235-5YZ1-02 3-PORT BASE MOUNT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VQZ235-5YZ1-02
IMS Product Code: 2111189
Packaging: Sold Individually
Description:
SMC VQZ235-5YZ1-02 3-Port Base Mount Solenoid Valve
3-port base mounted solenoid valve with DIN terminal electrical entry and 24 V DC solenoid supply voltage.
Specifications
- Series: VQZ200
- Mount Type: Base Mount
- Port Type: 3-Port
- Weight: 0.29226 lb
- Piping Type: Base Mounted Subplate Included
- Number Of Ports: 3
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 0.65 (P to A) Cv, 0.8 (A to R) Cv
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Rubber
- Operating Medium: Air, Inert Gas
- Flow Direction: 2-Way
- Normal State: Normally Closed
- Port Sizes: 1/4 BSPT
- Standards Met: IEC 60529, JIS B 8375-1981, JIS
- Actuation: Piloted Solenoid
- Body Material: Aluminum
- Overall Height: 56.5 mm
- Overall Length: 70 mm
- Overall Width: 45 mm
- Response Time: <= 22 ms
- Solenoid Allowable Voltage Fluct: +/- 10 %
- Solenoid Coil Insulation: Class B
- Solenoid Power Consumption: 0.45 W
- Sonic Conductance (C): 2.3 (P to A) dm�/(s.bar), 3 (A to R) dm�/(s.bar)
- Valve Function: Spool
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm^2 (Cv): metal seal 2.0 (0.11) - 12.6 (0.7); rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC; 100, 110, 200, 220VAC
- Response time (ms): metal seal 25 or less; rubber seal 30 or less
- Ambient and fluid temperature: -10 to 50 C
