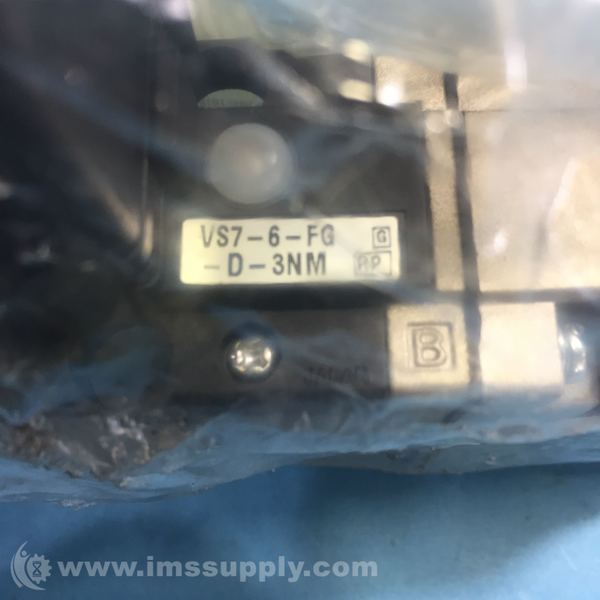

SMC VS7-6-FG-D-3NM ISO INTERFACE SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-6-FG-D-3NM
IMS Product Code: 1864518
Packaging: Sold Individually
Description:
SMC VS7-6-FG-D-3NM ISO Interface Solenoid Valve
Size 1, ISO interface solenoid valve Fluid: air/inert gas Operating pressure: 0.1 to 1.0MPa Single or double solenoids Options include indicator light, direct manual override, wedge packing style, individual pilot EXH, surge voltage suppressor
Specifications
- Series: VS7
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 27 mm˛
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Maximum Operating Pressure: 145 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Overall Height: 115 mm
- Overall Length: 171 mm
- Overall Width: 38 mm
- Response Time: =0.015 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 percent
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Standards Met: JIS B 8375-1975, JIS B 8735
- Thread Type: Rc(PT)
- Weight: 1.88753 lb
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 38 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 38 minutes.
Used (Special):
Missing din connector on top of valve.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 38 minutes.
