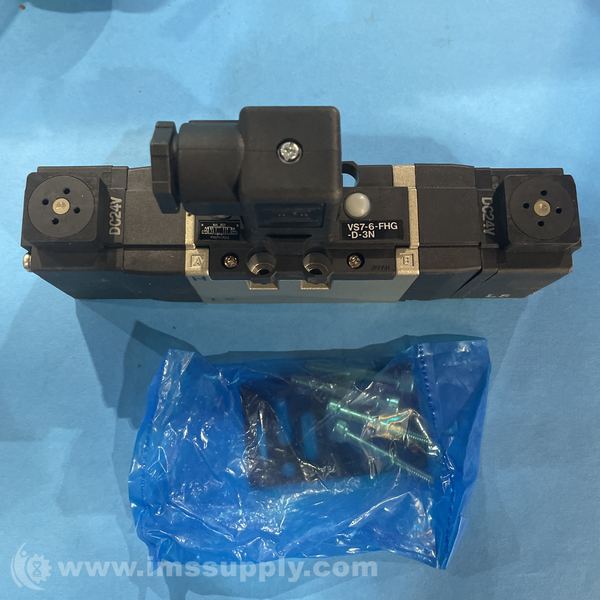

SMC VS7-6-FHG-D-3N SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-6-FHG-D-3N
IMS Product Code: 2136065
Packaging: Sold Individually
Description:
SMC VS7-6-FHG-D-3N Solenoid Valve
ISO Interface Solenoid Valve, Size 1, Metal Seal, 5 Port, Double Solenoid, Piloted Solenoid Actuation
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 25.5 mm
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Maximum Operating Pressure: 145 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1975, JIS B 8735
- Actuation: Piloted Solenoid
- Overall Height: 95.5 mm
- Overall Length: 178 mm
- Overall Width: 38 mm
- Response Time: <=0.045 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Series: VS7
- Symbol: 3 Position Closed Center
- Rated Voltage: 24 VDC
- Option a: Indicator Light
- Option b: None
- Option c: None
- Sub-Plate Port Size: Without Sub-plate
- Thread Type: Rc(PT)
- Connector: With Connector

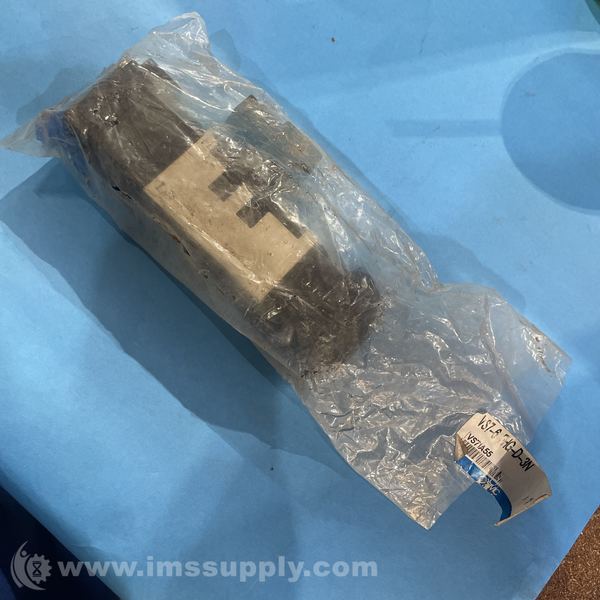

New - Open Box (Special):

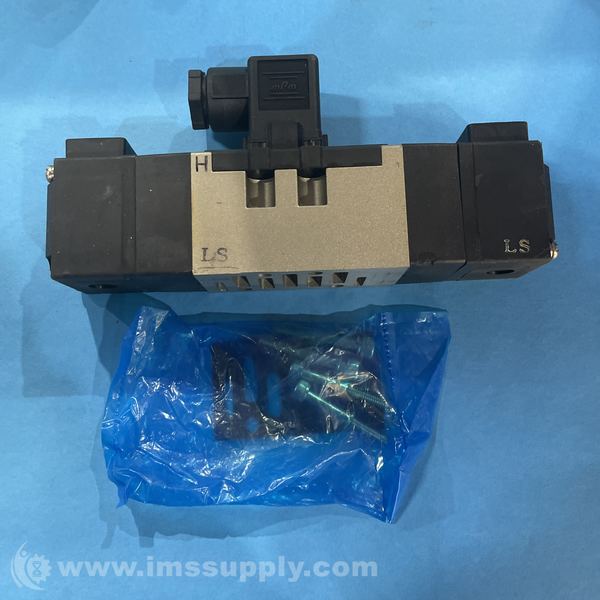

has small bag with screws etc
