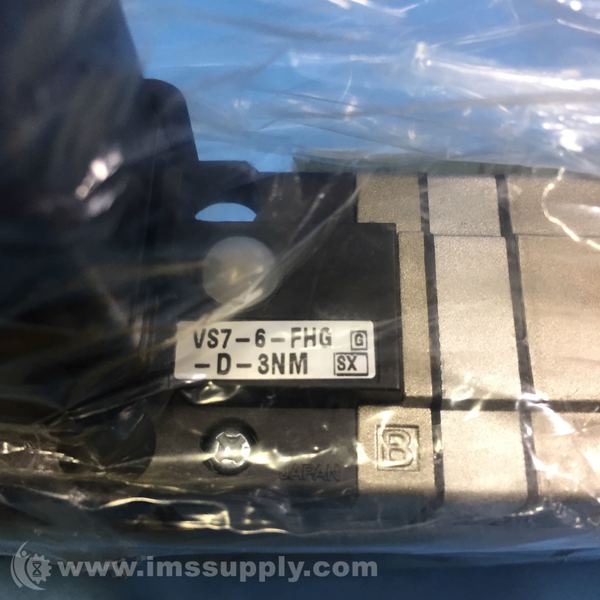

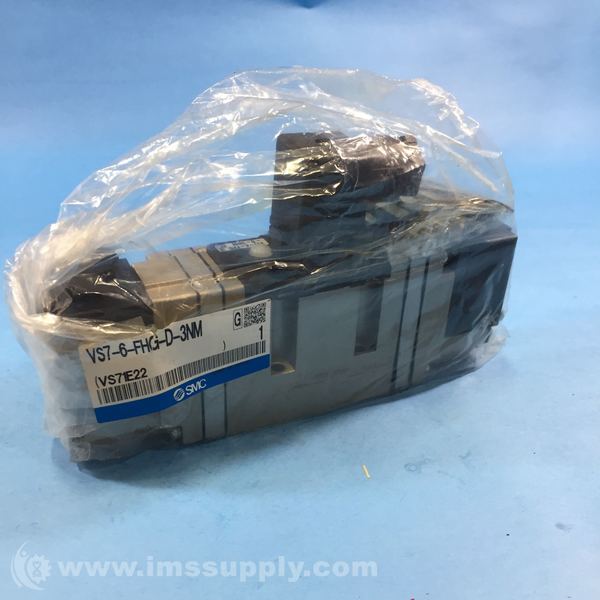

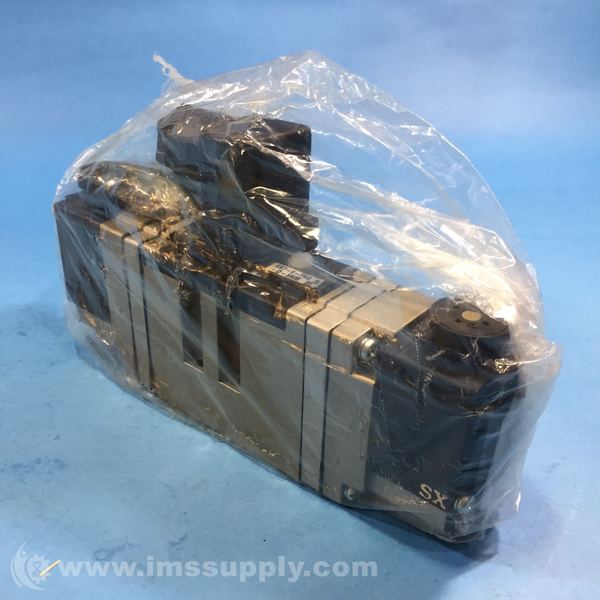

SMC VS7-6-FHG-D-3NM SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-6-FHG-D-3NM
IMS Product Code: 1861129
Packaging: Sold Individually
Description:
SMC VS7-6-FHG-D-3NM Solenoid Valve
3-position closed center solenoid valve, double solenoid, 24V DC, indicator light, Rc threads
Specifications
- Series: VS7
- Symbol: FHG (3-Position, Closed Center)
- Solenoid: D (Double)
- Voltage: 3 (24V DC)
- Option: NM (Indicator Light, Direct Manual Override)
- Port Size: w/o Subplate
- Thread: Rc (PT) (or w/o Subplate Type)
- Connector: With Connector
- Weight: 0.607 kg
- Valve Operation: Solenoid
- Number Of Solenoids: Double
- Rated Voltage: 24 VDC
- Option a: Indicator Light
- Option b: Direct Manual Override
- Sub-Plate Port Size: Without Sub-plate
- Thread Type: Rc(PT)
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Overall Height: 115 mm
- Overall Length: 189 mm
- Overall Width: 38 mm
- Response Time: =0.045 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
