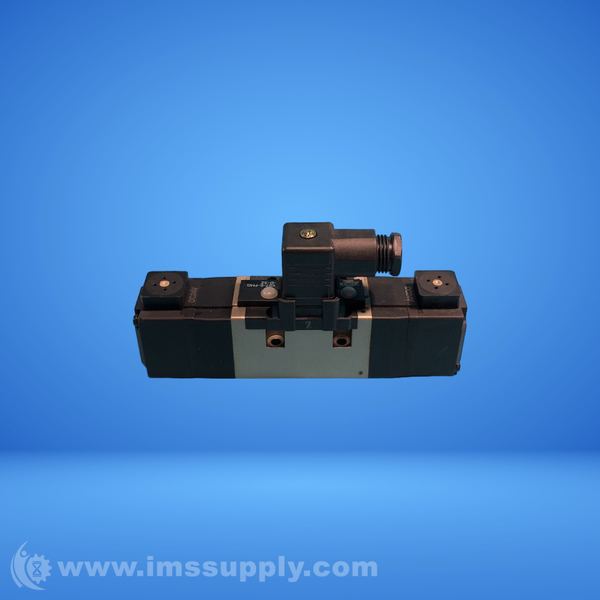

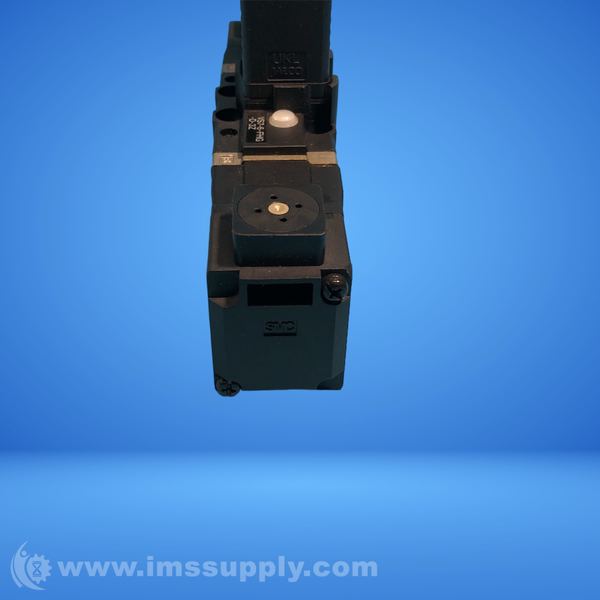

SMC VS7-6-FHG-D-3Z 4/5 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-6-FHG-D-3Z
IMS Product Code: 2036573
Packaging: Sold Individually
Description:
SMC VS7-6-FHG-D-3Z 4/5 Port Solenoid Valve
ISO Interface Solenoid Valve, Metal Seal, Size 1
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 25.5 mm
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 F
- Maximum Operating Pressure: 145 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1975, JIS B 8735
- Actuation: Piloted Solenoid
- Overall Height: 95.5 mm
- Overall Length: 178 mm
- Overall Width: 38 mm
- Response Time: <=0.045 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Series: VS7
- Fluid: air/inert gas
- Operating pressure: 0.1 to 1.0MPa
- Solenoid configuration: Single or double solenoids
- Connector Option: Z (Indicator Light w/Surge Voltage Suppressor)
- Port Size: w/o Subplate
- Solenoid: D (Double)
- Symbol: FHG (3-Position, Closed Center)
- Thread: Rc (PT) (or w/o Subplate Type)
- Voltage: 3 (24V DC)

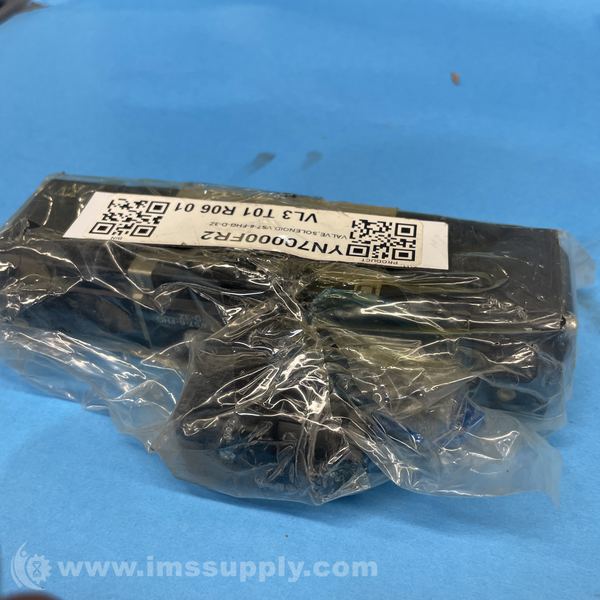

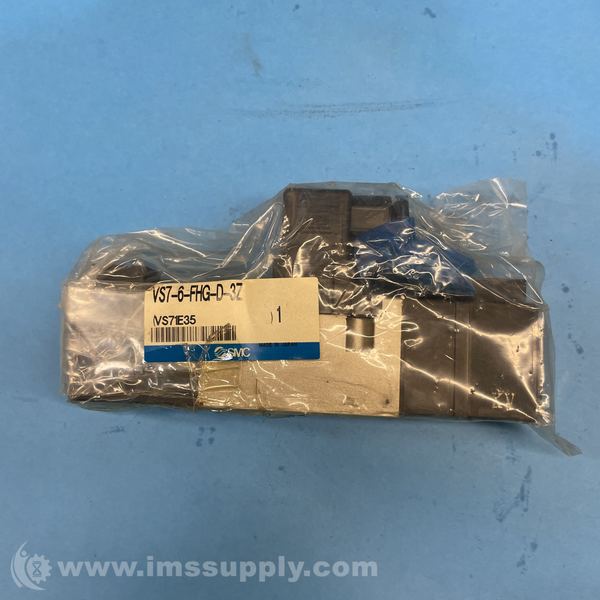

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):

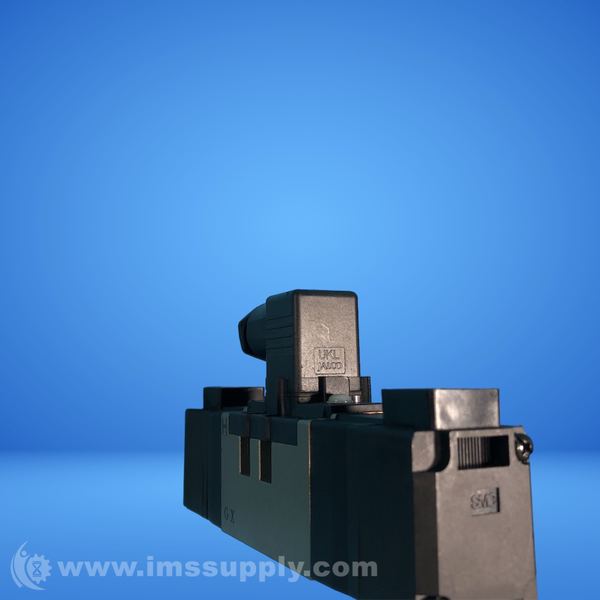

Part comes with attachment(SMC) part UKL JALCO.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
