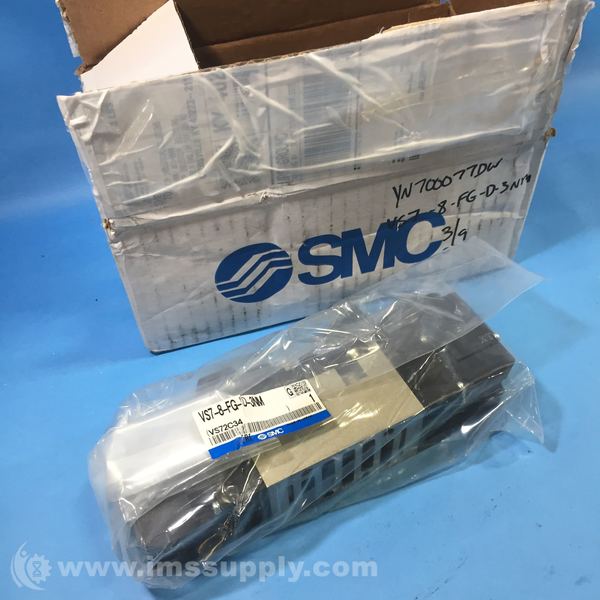

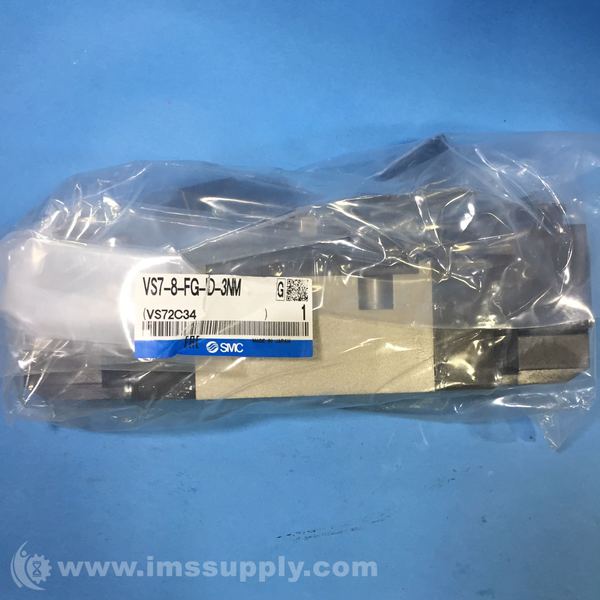

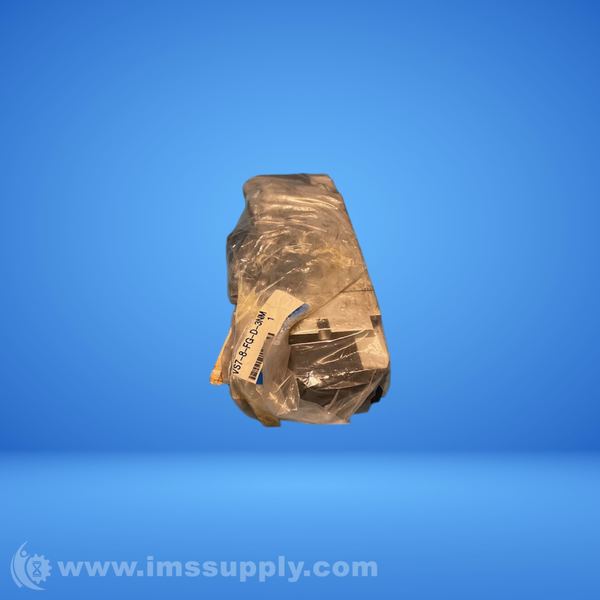

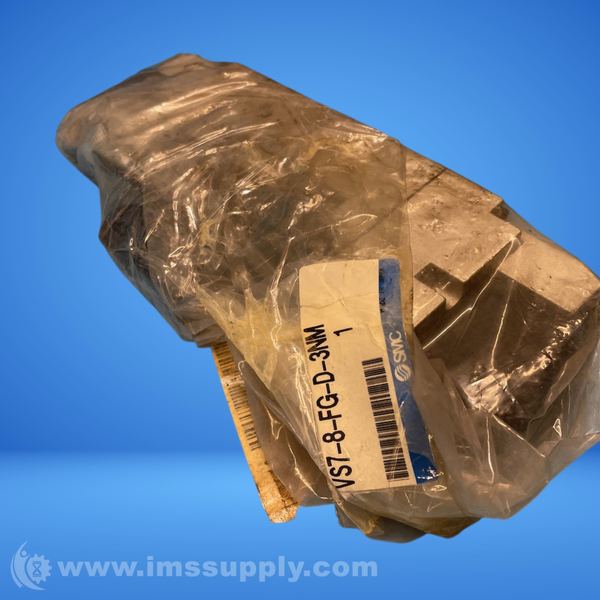

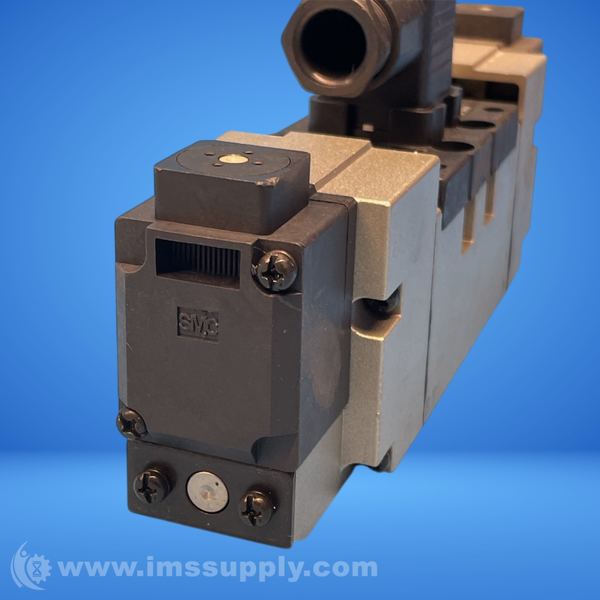

SMC VS7-8-FG-D-3NM 2 POSITION SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-8-FG-D-3NM
IMS Product Code: 1898537
Packaging: Sold Individually
Description:
SMC VS7-8-FG-D-3NM 2 Position Solenoid Valve
ISO interface solenoid valve with metal seal, double solenoid configuration, and DIN terminal electrical entry. Operates on air or inert gas.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 58 mm�
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1975, JIS B 8735
- Actuation: Piloted Solenoid
- Overall Height: 105 mm
- Overall Length: 230 mm
- Overall Width: 50 mm
- Response Time: =0.02 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Series: VS7
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 31 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 11 hours and 31 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 31 minutes.
