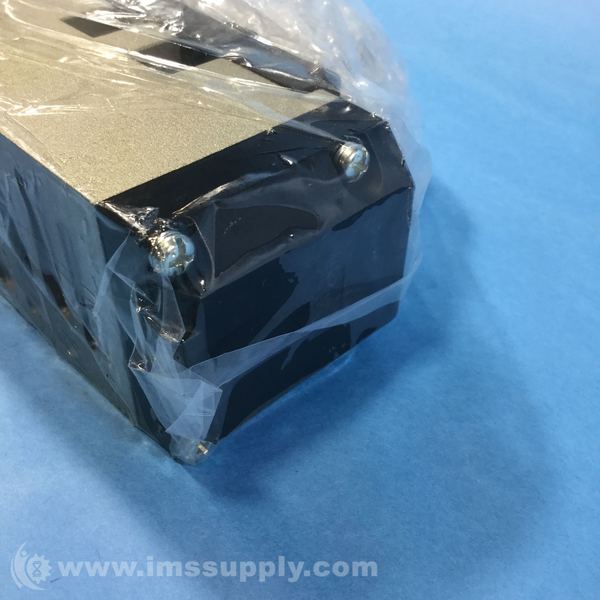

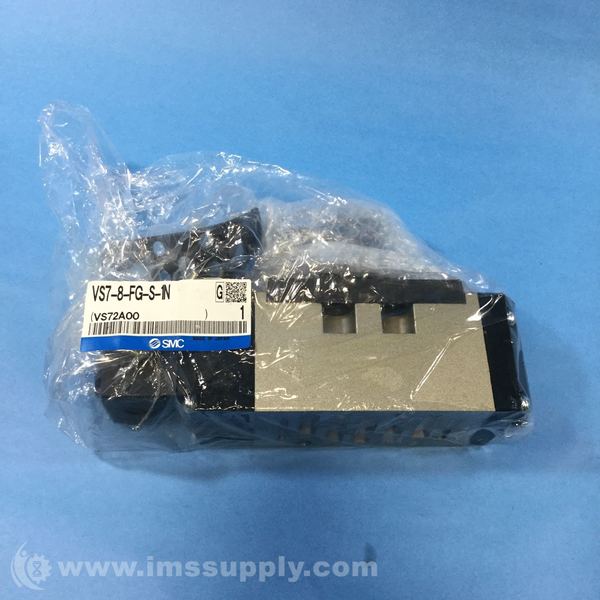

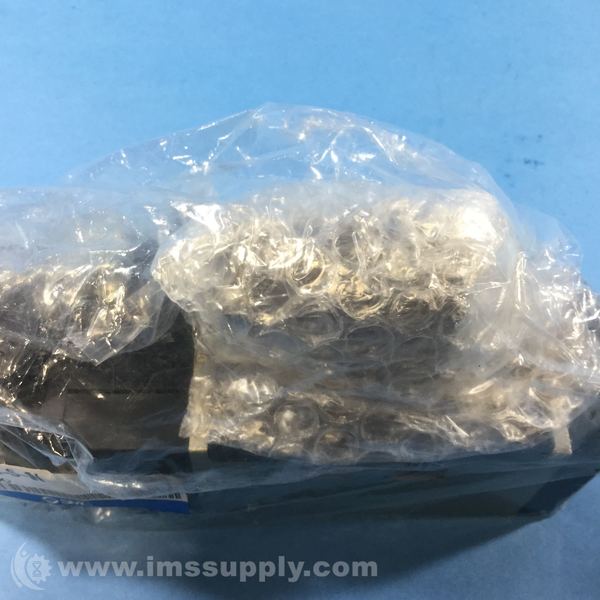

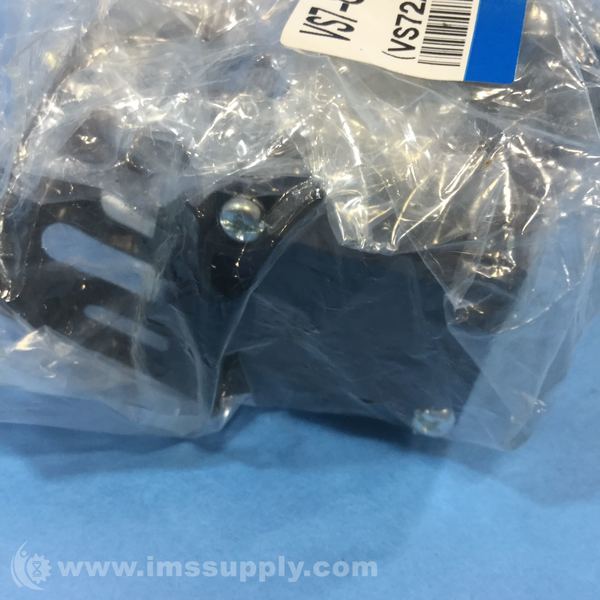

SMC VS7-8-FG-S-1N PILOTED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-8-FG-S-1N
IMS Product Code: 1789017
Packaging: Sold Individually
Description:
SMC VS7-8-FG-S-1N Piloted Solenoid Valve
Piloted solenoid valve with ISO interface, 5-port 2-position configuration, single solenoid, DIN terminal electrical entry, and indicator light option. Designed for air/inert gas applications with metal seal and non-locking push manual override.
Specifications
- Series: VS7
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 100 V ac
- Solenoid Supply Frequency: 50/60 Hz
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 58 mm
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Standards Met: JIS B 8375-1975, JIS B 8735
- Actuation: Piloted Solenoid
- Overall Height: 105 mm
- Overall Length: 173 mm
- Overall Width: 50 mm
- Response Time: 0.04 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 percent
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
