SMC VS7-8-FG-S-3N 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-8-FG-S-3N
IMS Product Code: 1789234
Packaging: Sold Individually
Description:

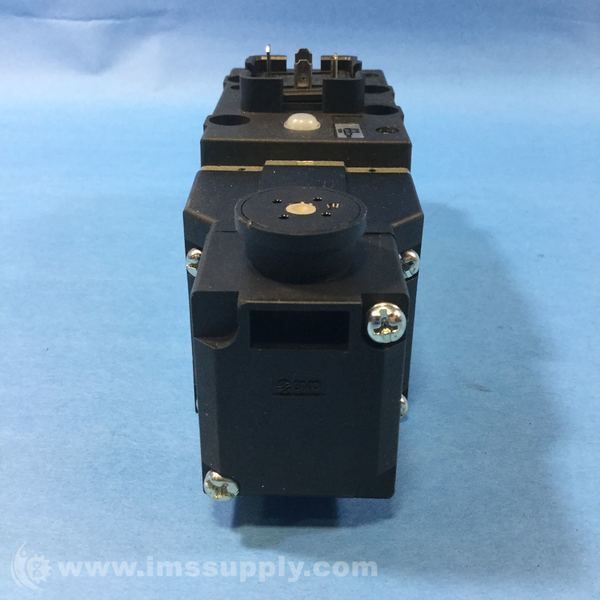

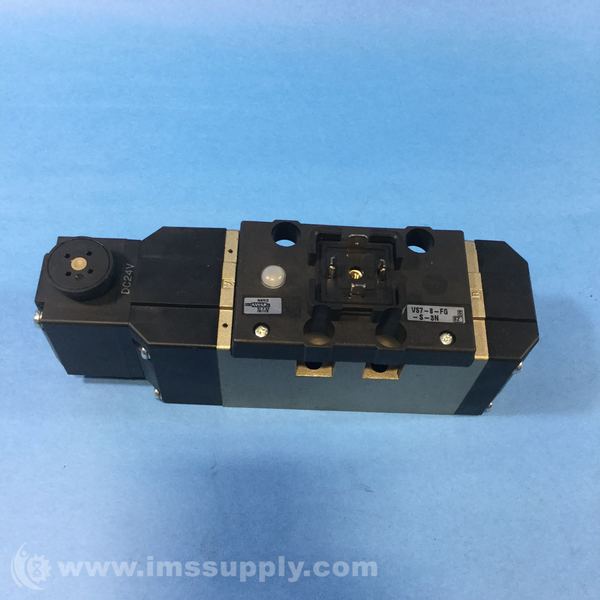

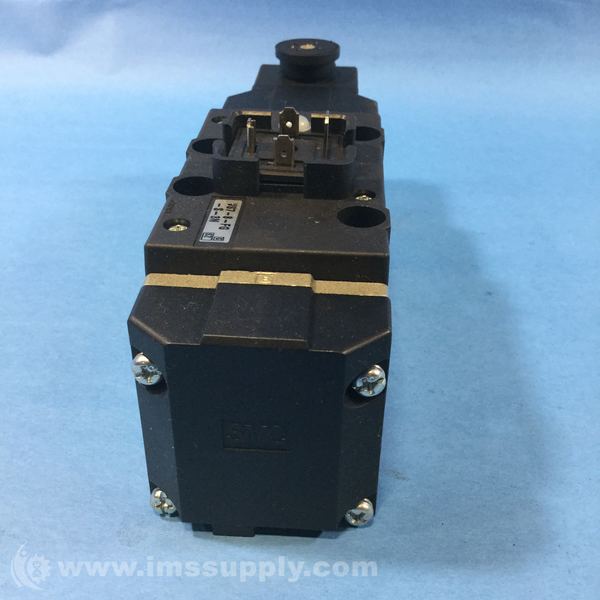

SMC VS7-8-FG-S-3N 5-Port Solenoid Valve
Piloted solenoid valve with body ported configuration, 5 ports, 2 positions, single solenoid, 24V DC supply, DIN terminal entry, non-locking push manual operation, metal seal, and 101 psi maximum operating pressure.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Seal Material: Metal
- Maximum Operating Pressure: 101 psi
- Operating Temperature Range: 41 to 140 degrees F
- Flow Coefficient Cv Flow Factor Kv: 58 mm˛
- Response Time: =0.04 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Series: VS7
- Standards Met: JIS B 8375-1975, JIS B 8735
- Overall Height: 105 mm
- Overall Length: 173 mm
- Overall Width: 50 mm
- Weight: 1.97871 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
