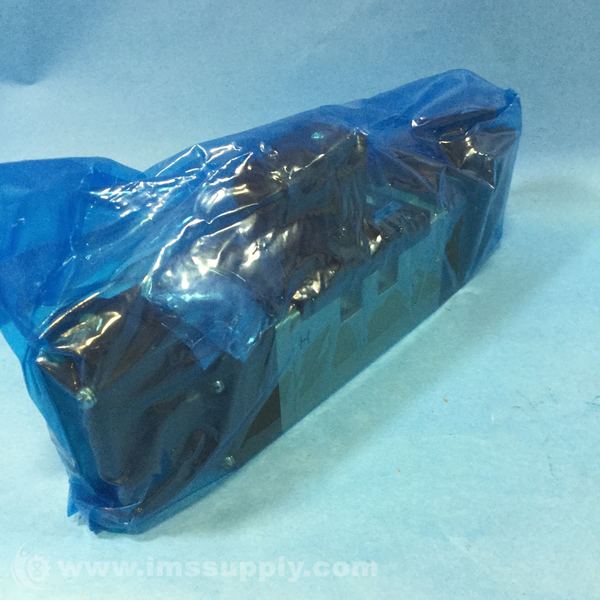

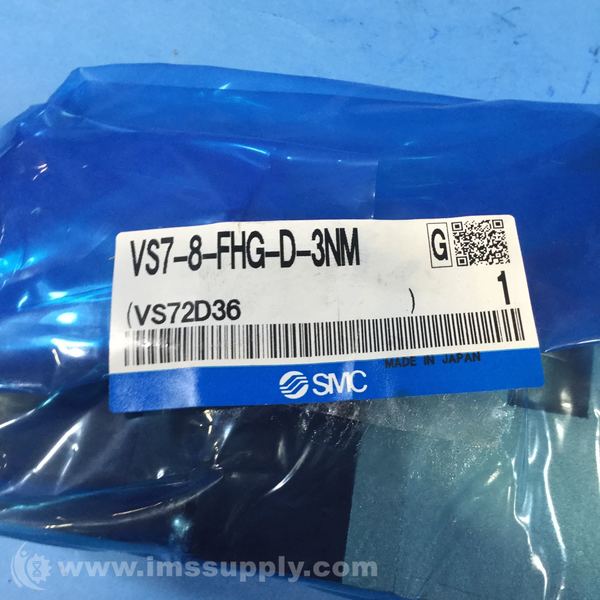

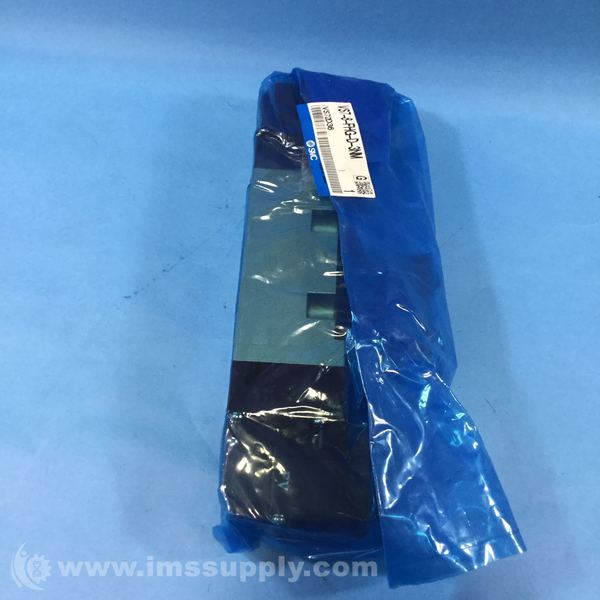

SMC VS7-8-FHG-D-3NM SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-8-FHG-D-3NM
IMS Product Code: 1787596
Packaging: Sold Individually
Description:
SMC VS7-8-FHG-D-3NM Solenoid Valve
5-port ISO interface solenoid valve with double solenoid and 24V DC rated voltage. Features indicator light and direct manual override. Body-ported design with Rc(PT) thread type and DIN terminal electrical entry. Metal seal material and piloted solenoid actuation.
Specifications
- Series: VS7-8
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Rated Voltage: 24 VDC
- Operating Medium: Air, Inert Gas
- Seal Material: Metal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Flow Coefficient Cv Flow Factor Kv: 58 mm
- Overall Height: 105 mm
- Overall Length: 245.5 mm
- Overall Width: 50 mm
- Response Time: <=0.05 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
