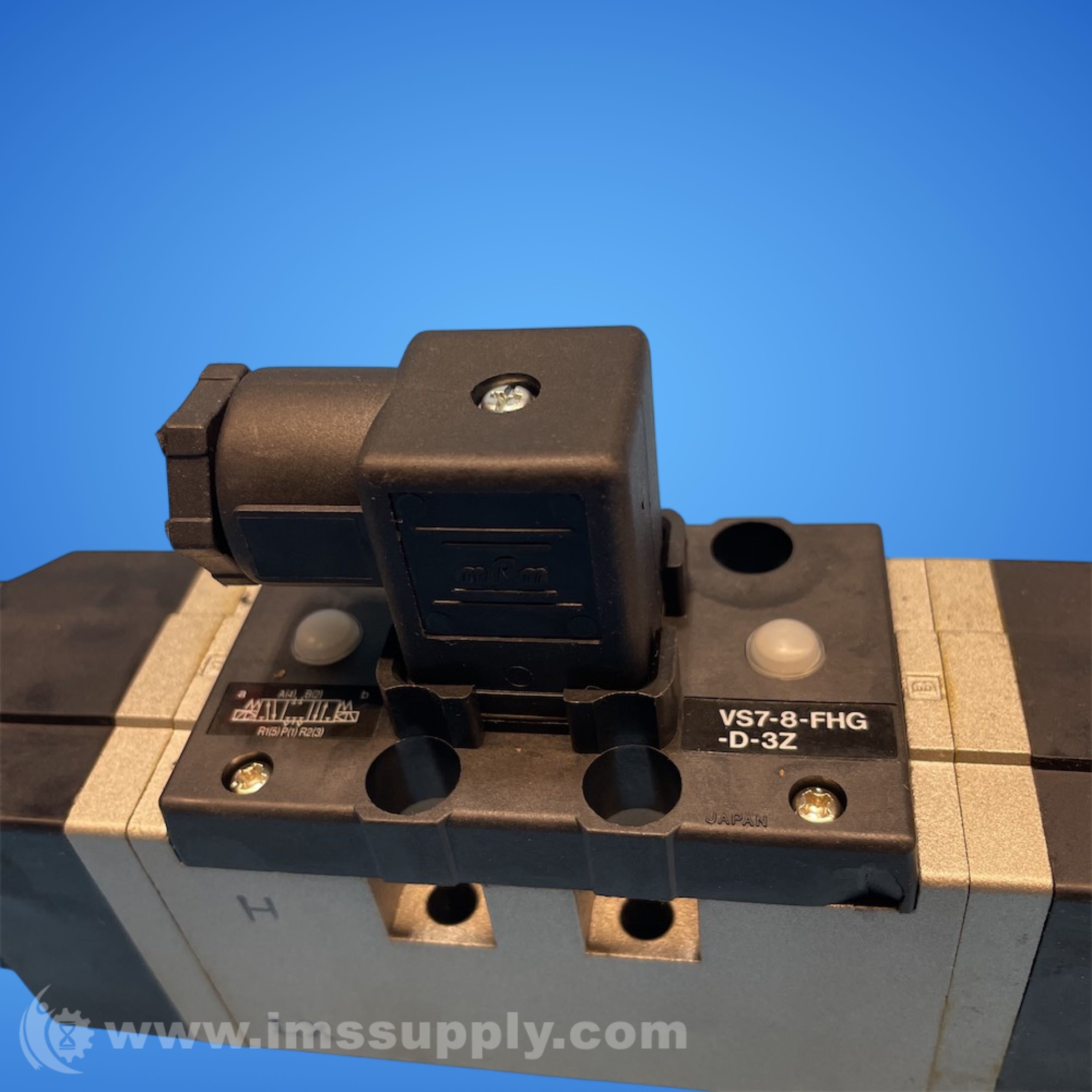

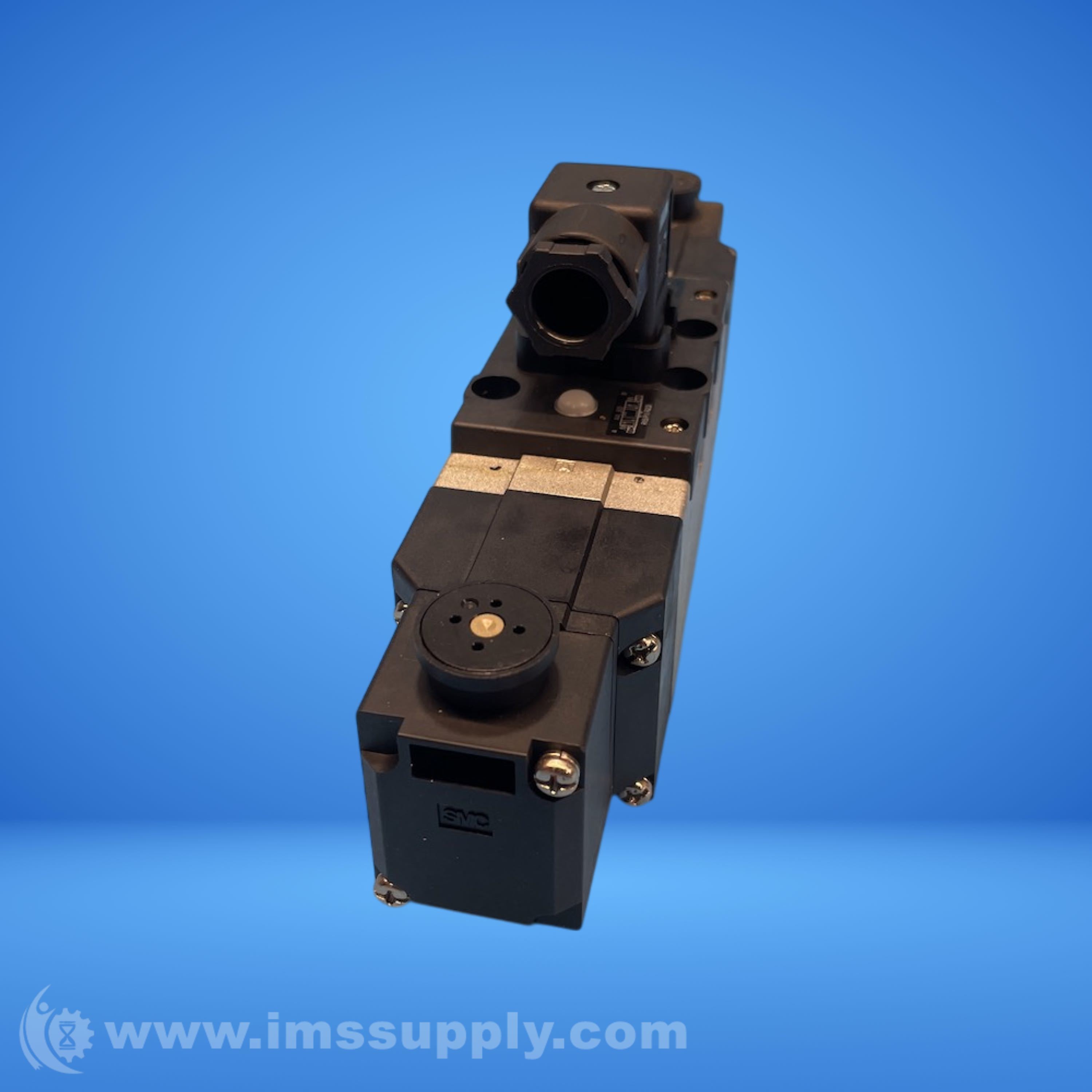

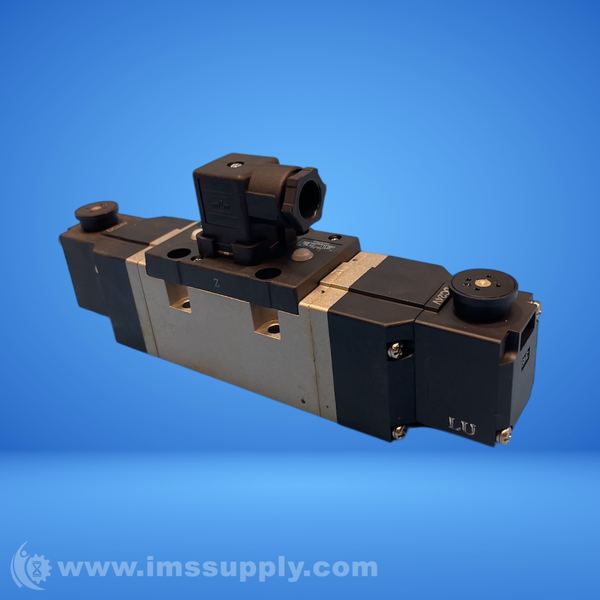

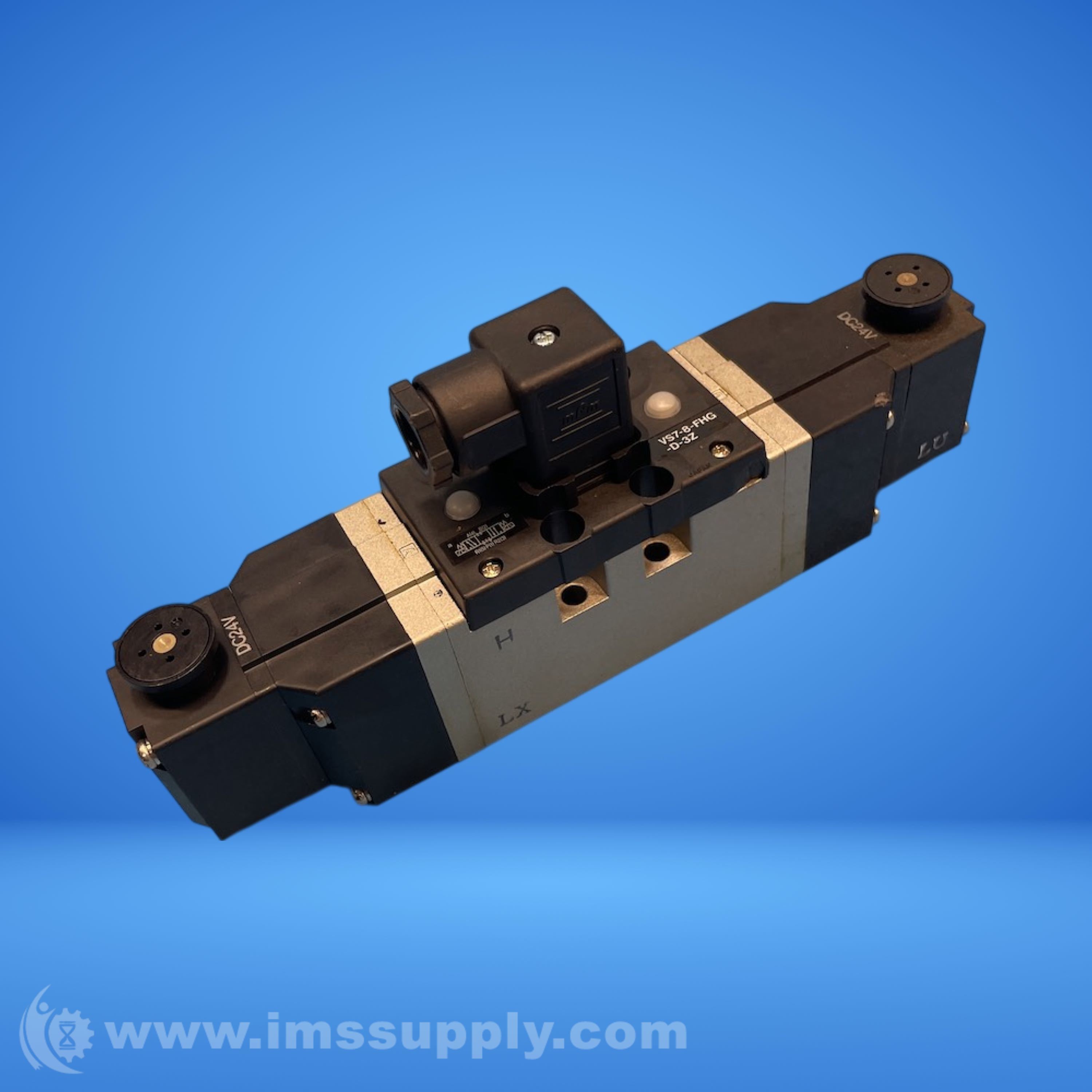

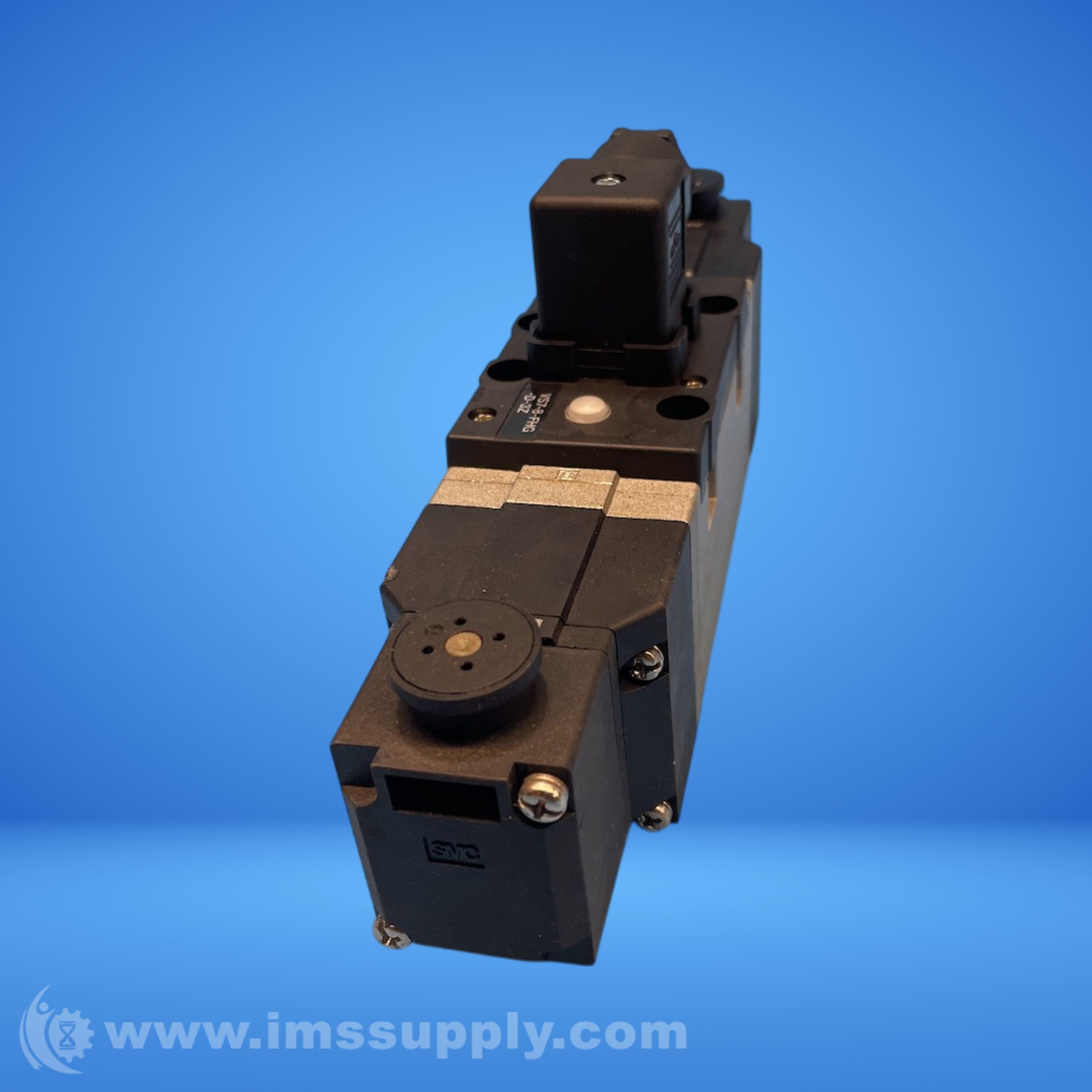

SMC VS7-8-FHG-D-3Z PILOTED SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VS7-8-FHG-D-3Z
IMS Product Code: 2123673
Packaging: Sold Individually
Description:
SMC VS7-8-FHG-D-3Z Piloted Solenoid Valve
Size 2, ISO interface solenoid valve for air/inert gas. 3-position closed center configuration with double solenoids. DIN terminal electrical entry and non-locking push manual operation.
Specifications
- Piping Type: Body Ported
- Number Of Ports: 5
- Number Of Positions: 3 (Closed Center)
- Number Of Solenoids: Double
- Solenoid Supply Voltage: 24 V dc

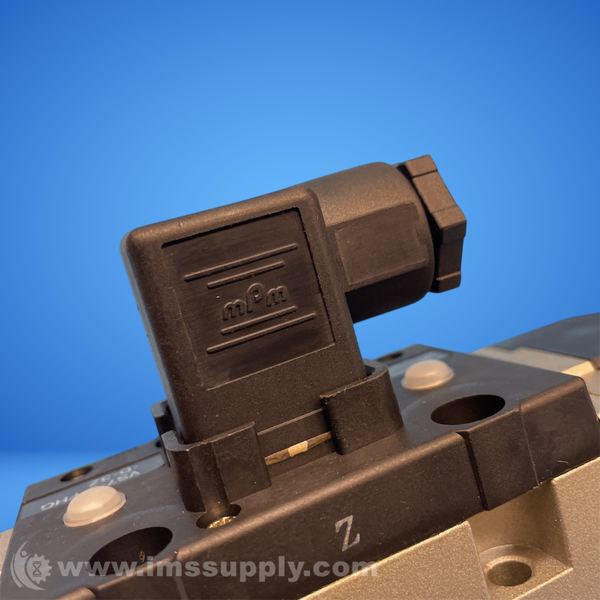

- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 58 mm˛
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 41 to 140 degrees F
- Maximum Operating Pressure: 101 psi
- Seal Material: Metal
- Operating Medium: Air, Inert Gas
- Flow Direction: 4-Way
- Actuation: Piloted Solenoid
- Overall Height: 105 mm
- Overall Length: 233 mm
- Overall Width: 50 mm
- Response Time: =0.05 sec
- Set Pressure Range: +0.1 to +0.83 Mpa
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Coil Insulation: Class B
- Valve Function: Spool
- Series: VS7

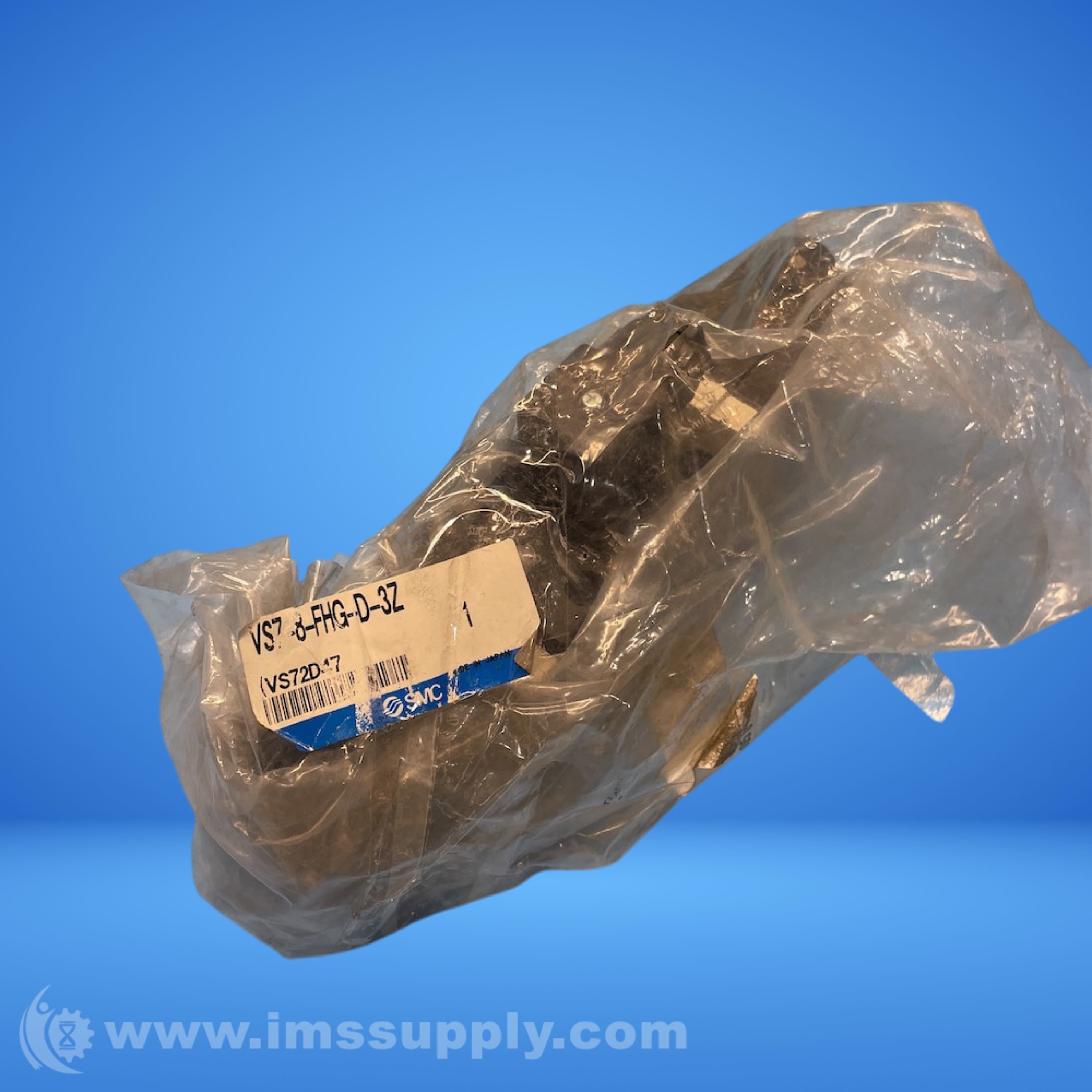

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
