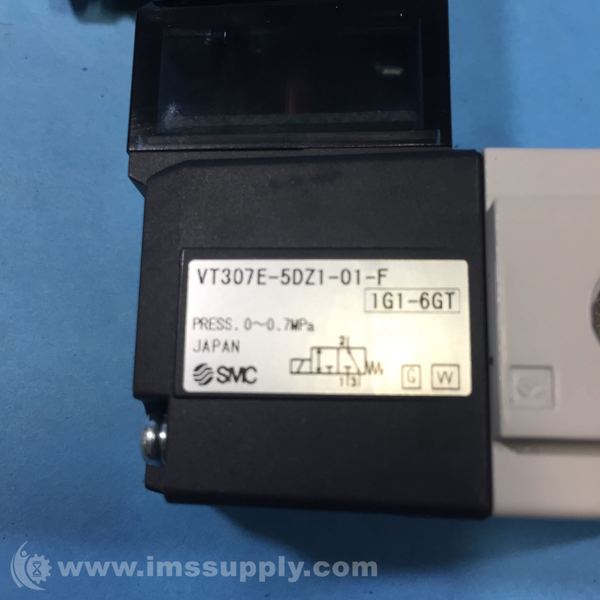

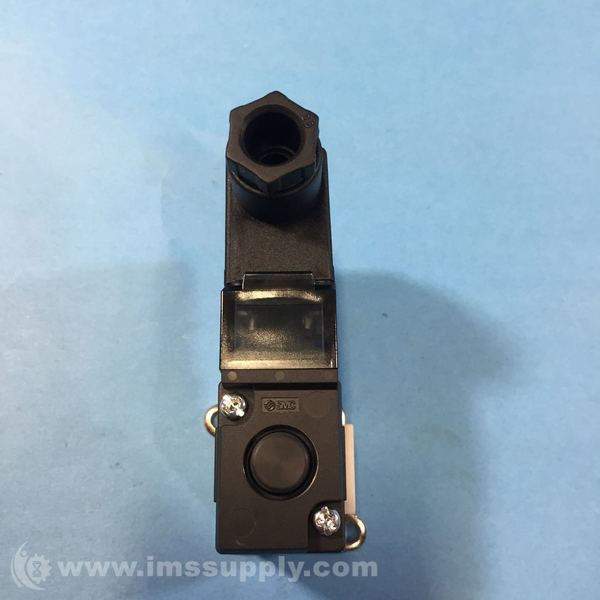

SMC VT307E-5DZ1-01-F 3-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VT307E-5DZ1-01-F
IMS Product Code: 1860999
Packaging: Sold Individually
Description:
SMC VT307E-5DZ1-01-F 3-Port Solenoid Valve
3-Port Direct Operated Poppet Rubber Seal Single Valve with Various Valve Functions, Body Ported, 1/8 in Port Size
Specifications
- Series: VT3
- Weight: 0.40417 lb
- Piping Type: Body Ported
- Number Of Ports: 3
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Manual Operation Type: Non-Locking Push
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 101 psi
- Operating Medium: Air
- Flow Direction: 4-Way
- Port Size: 1/8 in
- Valve Function: Poppet
- Body Type: T (Body Ported)
- Pressure Specifications: Standard Type (0.7MPa)
- Rated voltage: 5 (24 VDC)
- Electrical Entry: D (with Connector)
- Light/Surge Voltage Suppressor: Z (with Light/Surge Voltage Suppressor, DIN Terminal Type Only)
- Thread type: Rc
- Bracket: F (with Bracket)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 18 minutes.
