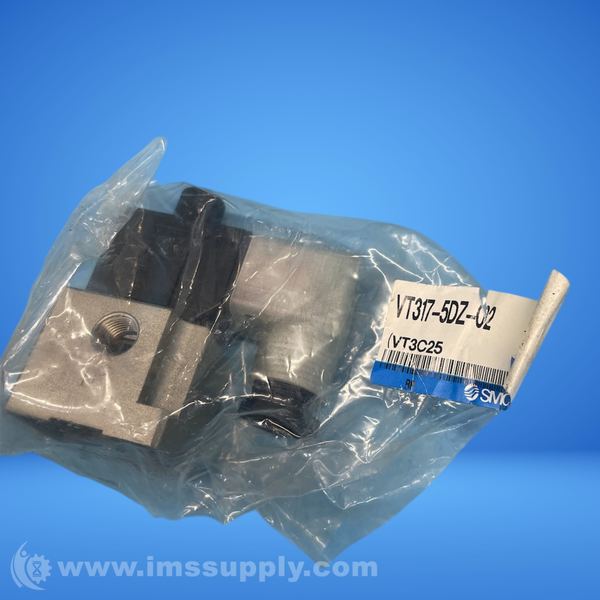

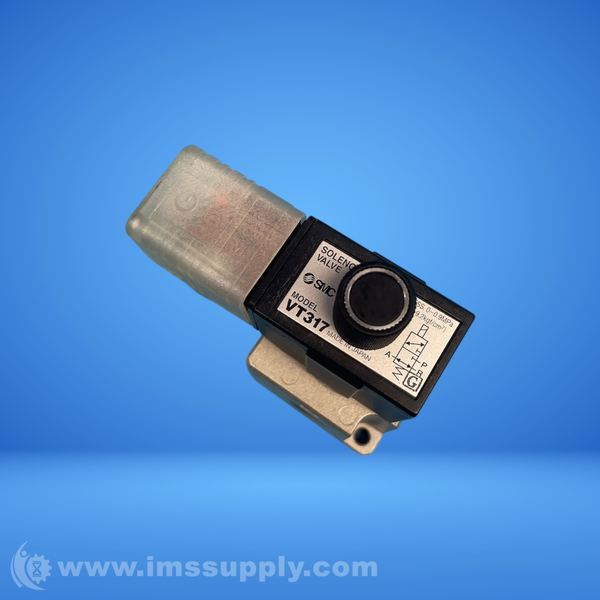

SMC VT317-5DZ-02 3 PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VT317-5DZ-02
IMS Product Code: 2144262
Packaging: Sold Individually
Description:
SMC VT317-5DZ-02 3 Port Solenoid Valve
3 port direct operated poppet valve with rubber seal, single solenoid, body ported design. Operating pressure range 0 to 0.9 MPa. Actuation via direct operated 2 position single solenoid.
Specifications
- Series: VT3
- Type: VALVE SOL (PT)
- Weight: 0.77748 lb
- Piping Type: Body Ported
- Number Of Ports: 3
- Number Of Positions: 2
- Number Of Solenoids: Single
- Solenoid Supply Voltage: 24 V dc
- Solenoid Electrical Entry: DIN Terminal
- Flow Coefficient Cv Flow Factor Kv: 0.62 (P to A) Cv, 0.66 (A to P) Cv, 0.67 (A to R) Cv, 0.67 (R to A) Cv
- Operating Temperature Range: 14 to 122 degrees F
- Maximum Operating Pressure: 130 psi
- Seal Material: Rubber
- Operating Medium: Air
- Port Sizes: 1/4 BSPT
- Actuation: Direct Operated Solenoid
- Body Material: Aluminum
- Overall Height: 89.1 mm
- Overall Length: 80.2 mm
- Overall Width: 45 mm
- Response Time: 30 (0.5 MPa) ms
- Solenoid Allowable Voltage Fluct: -15 to +10 %
- Solenoid Power Consumption: 6.3 (dc) W
- Standards Met: JIS B 8374-1981
- Body type: T (Body Ported)
- CE compliant: No
- Electrical Entry: D (DIN terminal)
- Light & surge suppressor: Z (light w/surge voltage suppressor)
- Port Size: 02 (1/4, 8A)
- Thread: Rc
- Valve option: Standard
- Voltage: 5 (24 VDC)
