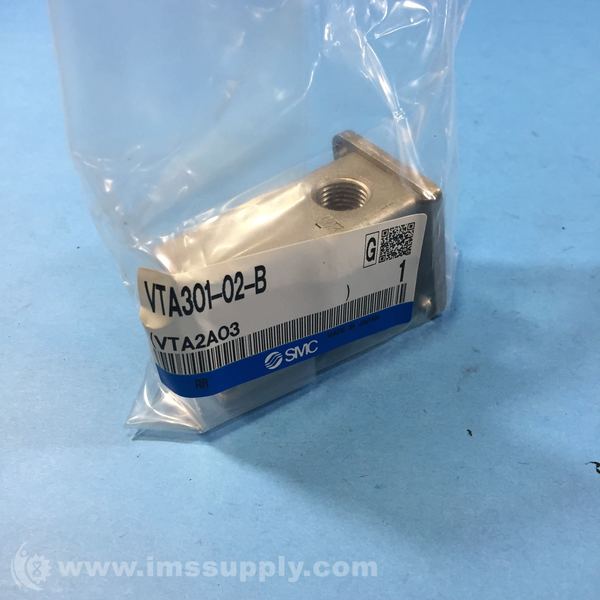

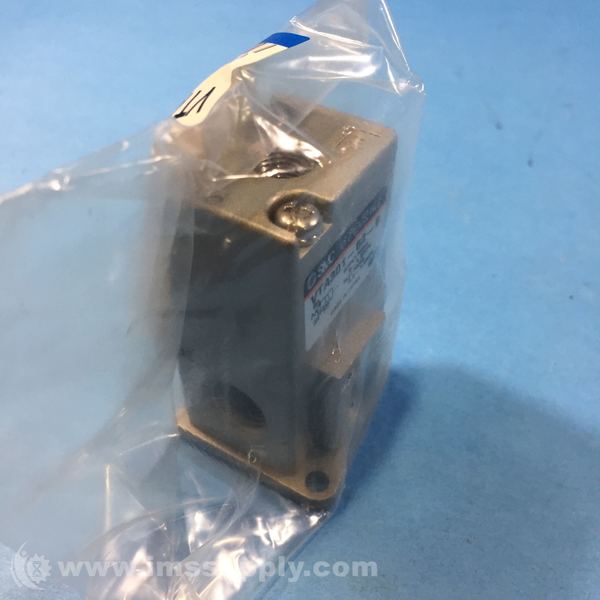

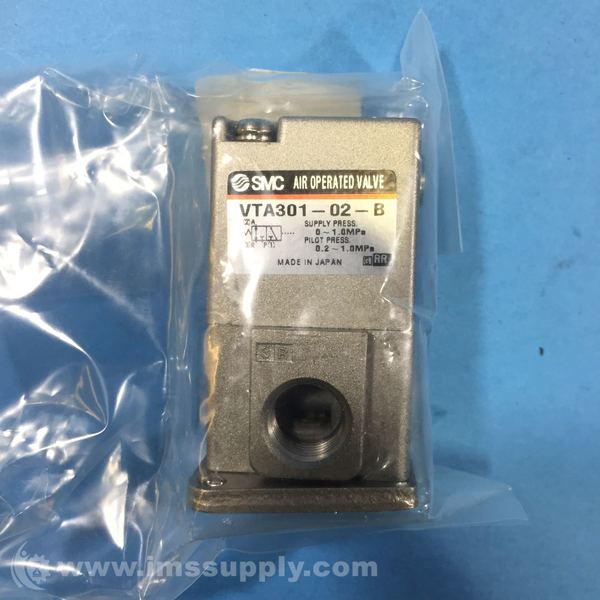

SMC VTA301-02-B 3 PORT AIR OPERATED VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VTA301-02-B
IMS Product Code: 1861367
Packaging: Sold Individually
Description:
SMC VTA301-02-B 3 Port Air Operated Valve
3 port air operated valve with 1/4 BSPT port size and Rc thread type. Maximum operating pressure of +1 MPa and operating temperature range of -10 to +50 degrees C.
Specifications
- Flow Coefficient Cv Flow Factor Kv: 0.15 (A to R) Cv, 0.15 (R to A) Cv, 0.16 (A to P) Cv, 0.16 (P to A) Cv
- Maximum Operating Pressure: +1 Mpa
- Operating Pressure Range: 0 to +1 MPa
- Operating Temperature Range: -10 to +50 degrees C
- Overall Height: 57 mm
- Overall Length: 36 mm
- Overall Width: 30 mm
- Port Size: 1/4 BSPT
- Thread Type: Rc
- Standards Met: JIS
- Weight: 0.287 lb
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 10 hours and 41 minutes.
