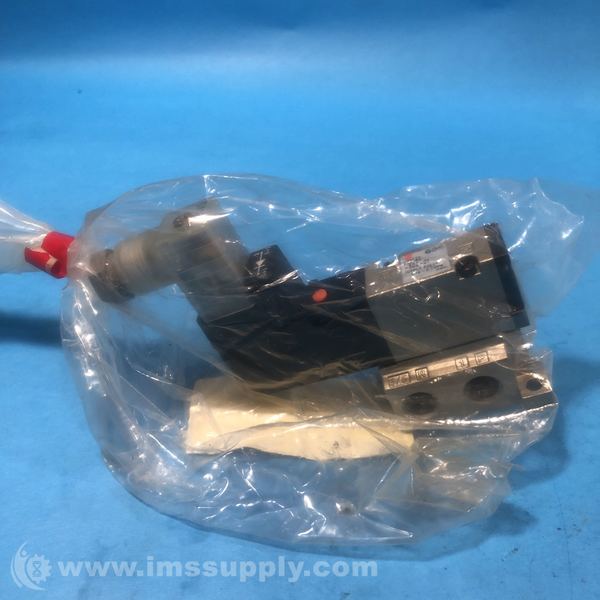

SMC VZ3140-5DZ-01 5-PORT SOLENOID VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: VZ3140-5DZ-01
IMS Product Code: 1949056
Packaging: Sold Individually
Description:
SMC VZ3140-5DZ-01 5-Port Solenoid Valve
Base mounted 5-port solenoid valve suitable for driving cylinders. Main valve structure is an elastic seal.
Specifications
- Usable Fluids: Air
- Operating Pressure Range MPa: 0.15 to 0.7 (2-position single), 0.1 to 0.7 (2-position double), 0.15 to 0.7 (3 Position)
- Ambient Temperature and Operating Fluid Temperature: -10 to +50 degrees C (no freezing)
- Response Time: 20 or less (2 Position Single, Double), 35 or less (3 Position)
- Maximum Operating Frequency: 10 (2 Position Single, Double), 3 (3 Position)
- Manual operation: Non-locking push type, screwdriver-operated locking type, hand-operated locking type
- Pilot Exhaust Method: Pilot valve individual exhaust type, main valve / pilot valve common exhaust type
- Lubrication: Not required
- Mounting Orientation: Free
- Impact resistance / Vibration resistance: 300/50 m/s2
- Enclosure: Dust-proof
- Material: Copper
